Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC113IX50046-N88
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC113IX50046-N88 |
Size: |
11.26"(IPS) |
Display Type: |
(IPS) |
Resolution: |
440*1920 |
Outline Dimension: |
266.39(W)*64.98(H)*4.6(T)mm |
Active Area: |
57.908(H) ×252.69 (V) Mm |
Brightness: |
500cd/m2 |
Interface: |
40pinMIPI |
Viewing Angle: |
80/80/80/80 |
Driver IC: |
ST7703i |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-20~75℃ |
Contrast Ratio: |
900 |
Aspect Ratio: |
1:4.4 |
Application: |
Car Smart Screen Rear View Mirror, Dash Cam Car Play |
P/N: |
HC113IX50046-N88 |
Size: |
11.26"(IPS) |
Display Type: |
(IPS) |
Resolution: |
440*1920 |
Outline Dimension: |
266.39(W)*64.98(H)*4.6(T)mm |
Active Area: |
57.908(H) ×252.69 (V) Mm |
Brightness: |
500cd/m2 |
Interface: |
40pinMIPI |
Viewing Angle: |
80/80/80/80 |
Driver IC: |
ST7703i |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-20~75℃ |
Contrast Ratio: |
900 |
Aspect Ratio: |
1:4.4 |
Application: |
Car Smart Screen Rear View Mirror, Dash Cam Car Play |

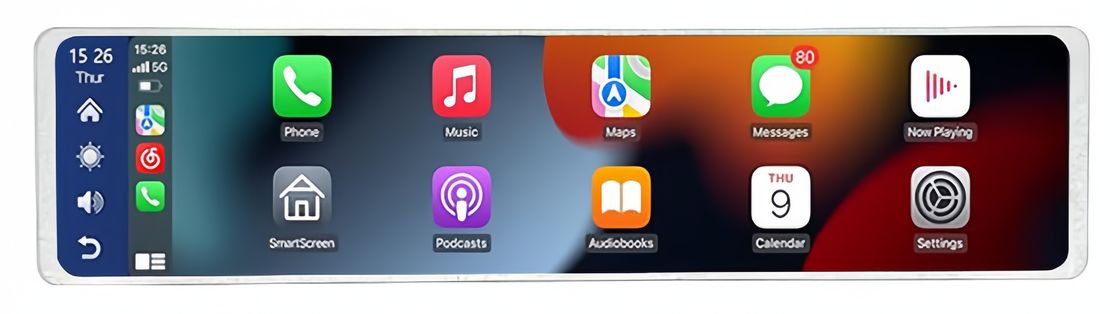

11.26-inch TFT display screen with 500 Brightness and 40pin MIPI Interface
Product Description:
HC113IX50046-N88 is a 11.26-inch Bar Type TFT Display module with a frame of 266.39mm*64.98mm*4.60mm, which can display high-definition images of 440*1920 pixels. In order to make the output image clearer and brighter, and the color more vivid, this module adopts IPS display mode. The built-in backlight component can produce brightness of 500nits, so it’s not only supports free viewing angle(85/85/85/85), but also has a sunlight readable capability. The interface of 40pin MIPI and the operation temperature from -20℃to 70℃, making this display be an ideal option for car smart screen rear view mirror, dash cam car play. Moreover, it is completely designed and produced by Heng Cheng Electronics. It can be modified and customized according to customer requirements. The customized content includes interface, backlight luminance, FPC shape and structure, touch function,etc.
General Specification:
| P/N |
HC113IX50046-N88
|
| Size | 11.26 inch |
| Display type | Transmissive |
| Resolution | 440*1920 |
| Outline Dimension(mm) | 266.39(W)*64.98(H)*4.6(T)mm |
| Active Area(mm) | 57.908(H) ×252.69 (V) mm |
| Brightness(cd/m²) | 500 |
| Viewing Angle(L/R/T/B) | 80/80/80/80 |
| Interface | 40pinMIPI |
| Driver IC | ST7703i |
| Operation Temperature | -20~70℃ |
| Storge Temperature | -20-75℃ |
| Aspect ratio | 1:4.4 |
| Contrast ratio | 900 |
| Application | car smart screen rear view mirror, dash cam car play |
Pin assignment:
Product drawings:
Bar type lcd display series:
|
Bar Type LCD Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 3.9" | HC039IX80036-F64 | IPS | 480*128 | 102.46*34.40*3.6mm | 95.04*25.34mm | 40pinRGB | 1000 | 800 | -20~70℃ | -30~80℃ |
| 2 | 4.1" | HC041IXA5030-F77 | IPS | 1280*640 | 106.9*61.9*2.9mm | 92.544*46.272mm | 40pinRGB | 1500 | 1500 | -40~105℃ | -40~105℃ |
| 3 | 6.86" | HC068IS55046-B67 | IPS | 480x1280 | 66.5*180.8*4.64mm | 60.22x160.58mm | 40pinMIPI | 1500 | 500 | -20~85℃ | -30~85℃ |
| 4 | 6.86" | HC068IS55046-F03 | IPS | 480*1280 | 66.60*181.00*4.6mm | 60.22*160.59mm | 40pinMIPI | 900 | 550 | -20~85℃ | -30~85℃ |
| 5 | 7" | HC070Ix35035-D39 | IPS | 280x1424 | 38.2*181.5*3.45mm | 33.6*170.88mm | 40pinMIPI | 1000 | 350 | -20~70℃ | -30~80℃ |
| 6 | 7" | HC070Ix35035-D39V.C | IPS | 280*1424 | 52.0*189.28*6.4mm | 33.6*170.88mm | 20pinMIPI | 1000 | 300 | -20~70℃ | -30-80℃ |
| 7 | 7.84" | HC078IW85048-A24 | IPS | 400*1280 | 67.8*205.78*4.75mm | 59.40*190.08mm | 40pinLVDS | 900 | 850 | -20~70℃ | -30-80℃ |
| 8 | 7.84" | HC078IW85048-D24V02 | IPS | 400*1280 | 67.8x205.78x4.75mm | 59.40x190.08mm | 40pinMIPI | 900 | 850 | -20~70℃ | -30-80℃ |
| 9 | 7.84" | HC078IW45048-D24V.C | IPS | 400*1280 | 82.30*233.71*6.95mm | 59.40*190.08mm | 40pinMIPI | 900 | 380 | -20~70℃ | -30-80℃ |
| 10 | 7.84'' | HC078IW72067-B80V.G | IPS | 400*1280 | 67.80*205.78*4.75mm | 59.4*190.08mm | 40pinLVDS | 900 | 720 | -20~70℃ | -30-80℃ |
| 11 | 8.8'' | HC088IXA0045-F97 | IPS | 1280x480 | 229.7*97.3*4.5mm | 209.28*78.48mm | 60pinLVDS | 1000 | 1000 | -30-80℃ | -30-80℃ |
| 12 | 10.11'' | HC101IX25064-F13 | IPS | 440*1920 | 64.98*266.39*4.60mm | 57.95*252.86mm | 40pinMIPI | 1000 | 250 | -20~70℃ | -30-80℃ |
| 13 | 10.25'' | HC103IX80065-B06 | IPS | 1920*720 | 260.15*110.5*6.52mm | 243.648*91.368mm | 50pinLVDS | 1000 | 800 | -40~90℃ | -30~85℃ |
| 14 | 10.25'' | HC103IT80060-F95 | IPS | 1920*720 | 255.60x105.80x6.0mm | 243.65*91.37mm | 50pinLVDS | 1300 | 800 | -40~85℃ | -40~90℃ |
| 15 | 11.26'' | HC113IX50046-N88 | IPS | 440*1920 | 266.39*64.98*4.6mm | 57.908*252.69mm | 40pinMIPI | 500 | 500 | -20~70℃ | -20~75℃ |
| 16 | 12.3'' | HC123IT50032-E23 | IPS | 1920*720 | 302.03*124.31*3.20mm | 292.03*109.51mm | 50pinLVDS | 1000 | 500 | -30~85℃ | -30~85℃ |
| 17 | 12.3'' | HC123IT50032-E23V.C | IPS | 1920*720 | 326.63*142.11*5.25mm | 292.03*109.51mm | 50pinLVDS | 1000 | 500 | -30~85℃ | -40~90℃ |
| 18 | 12.3'' | HC123ITA0068-D88 | IPS | 1920*720 | 310*128*6.4mm | 292.03*109.51mm | 50pinLVDS | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 19 | 12.3'' | HC123IT80068-D88V.C | IPS | 1920*720 | 326.63*141.81*8.50mm | 292.03*109.51mm | 50pinLVDS | 1000 | 800 | -30-80℃ | -30-70℃ |
| 20 | 15'' | HC150IT80068-F72 | IPS | 1920*720 | 371.12*150.95*6.8mm | 355.68*133.38mm | 60pinLVDS | 1300 | 800 | -30~85℃ | -40~90℃ |
| 21 | 15'' | HC150IT90093-F72V.C | IPS | 1920*720 | 379.42*160.05*9.3mm | 355.68*133.38mm | 60pinLVDS | 1300 | 900 | -30~85℃ | -40~90℃ |
| 22 | 19.1'' | HC191IX700A1-A88 | IPS | 1920*340 | 497.4*109.5*14.5mm | 476.64*84.405mm | 30pinLVDS | 1000 | 700 | 0~50℃ | -20~60℃ |
| 23 | 19.4'' | HC194IXB00A2-F20 | IPS | 1920*510 | 495.6*150.7*12mm | 476.64*126.6mm | 30pinLVDS | 3000 | 2000 | 0~50℃ | -20~60℃ |
| 24 | 19.5'' | HC195IX500A2-N88 | IPS | 1920*540 | 495.6*158*12mm | 476.64*134.055mm | 30pinLVDS | 3000 | 500 | 0~50℃ | -20~60℃ |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
