Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC035TB35032-F09V.1
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC035TB35032-F09V.1 |
Size: |
3.5"(TN) |
Display Type: |
(TN) |
Resolution: |
320*240 |
Outline Dimension: |
76.84(W )*63.84(H)*4.36(T)mm |
Active Area: |
70.08(W)*52.56(H)mm |
Brightness: |
400cd/m2 |
Interface: |
54pinRGB |
Viewing Angle: |
65/65/45/65 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
500 |
Aspect Ratio: |
4:3 |
Application: |
Retro Handheld Game Console, Skin Hair Scanner Machine, Nuclear Radiation Detector |
P/N: |
HC035TB35032-F09V.1 |
Size: |
3.5"(TN) |
Display Type: |
(TN) |
Resolution: |
320*240 |
Outline Dimension: |
76.84(W )*63.84(H)*4.36(T)mm |
Active Area: |
70.08(W)*52.56(H)mm |
Brightness: |
400cd/m2 |
Interface: |
54pinRGB |
Viewing Angle: |
65/65/45/65 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
500 |
Aspect Ratio: |
4:3 |
Application: |
Retro Handheld Game Console, Skin Hair Scanner Machine, Nuclear Radiation Detector |

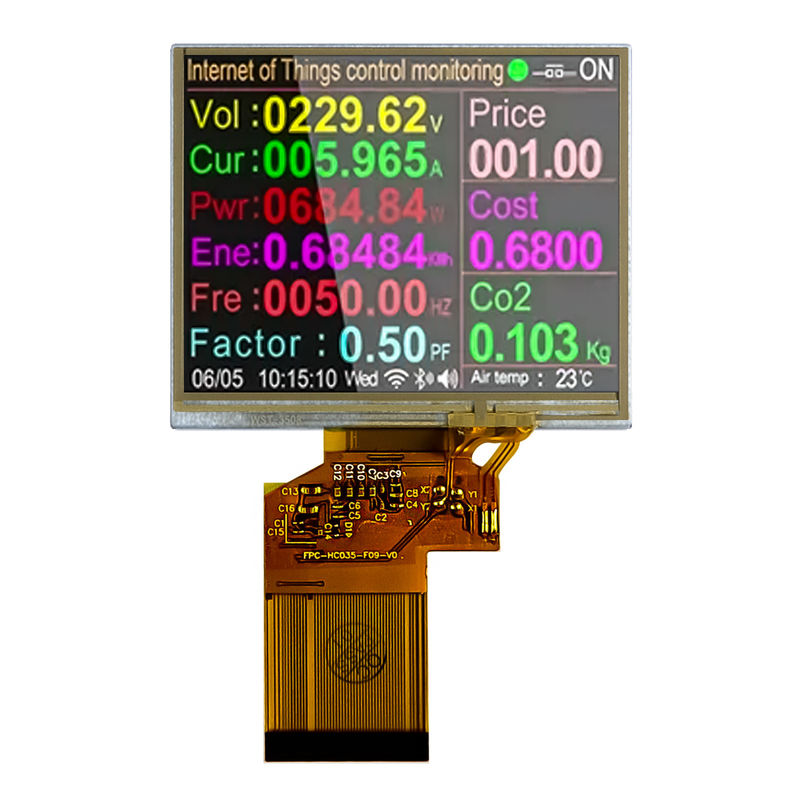

3.5 inch TFT LCD Display with resistive touch panel and 400nits Brightness
Product Description:
HC035TB35032-F09V.1 is a 3.5-inch resistive touch display with TN display mode that has its own advantages in terms of high precision and fast response. It is suitable for some applications requiring high precision and response speed, such as retro handheld game console, skin hair scanner machine, nuclear radiation detector and other devices. This display has the resolution of 320*240 pixels, brightness of 400nits and contrast ration of 500:1, and these properties allow it to perform better in display effects. Its operation temperature from -20℃ to 70℃ makes it possible for this display to work in harsh environments and its interface of 54pin RGB provides an efficient data transmission. Additionally, the display has an outline dimension of 76.84mm*63.84mm*4.36mm and an active area of 70.08*52.56mm, which can bring a high quality visual experience to users.
General Specification:
| P/N |
HC035TB35032-F09V.1
|
| Size | 3.5inch |
| Display type |
TFT
|
| Resolution | 320*240 |
| Outline Dimension(mm) | 76.84(W )*63.84(H)*4.36(T)mm |
| Active Area(mm) | 70.08(W)*52.56(H)mm |
| Brightness(cd/m²) | 400 |
| Viewing Angle(L/R/T/B) | 65/65/45/65 |
| Interface | 54pinRGB |
| Operation Temperature | -20~70℃ |
| Storge Temperature | -30~80℃ |
| Aspect ratio | 4:3 |
| Contrast ratio | 500 |
| Application | retro handheld game console, skin hair scanner machine, nuclear radiation detector |
Pin assignment:
Product drawings:
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
