Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC035IFA0032-C37
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC035IF30032-C37 |
Size: |
3.5"(IPS) |
Display Type: |
(IPS) |
Resolution: |
640*480 |
Outline Dimension: |
63.84(W )*76.84(H)*3.2(T)mm |
Active Area: |
70.08(W)*52.56(H)mm |
Brightness: |
1000cd/m2 |
Interface: |
40pinRGB |
Viewing Angle: |
85/85/85/85 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
800 |
Aspect Ratio: |
4:3 |
Application: |
Digital Doorbell, Multi-functional CCTV Tester, Carbon Dioxide Detector |
P/N: |
HC035IF30032-C37 |
Size: |
3.5"(IPS) |
Display Type: |
(IPS) |
Resolution: |
640*480 |
Outline Dimension: |
63.84(W )*76.84(H)*3.2(T)mm |
Active Area: |
70.08(W)*52.56(H)mm |
Brightness: |
1000cd/m2 |
Interface: |
40pinRGB |
Viewing Angle: |
85/85/85/85 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
800 |
Aspect Ratio: |
4:3 |
Application: |
Digital Doorbell, Multi-functional CCTV Tester, Carbon Dioxide Detector |

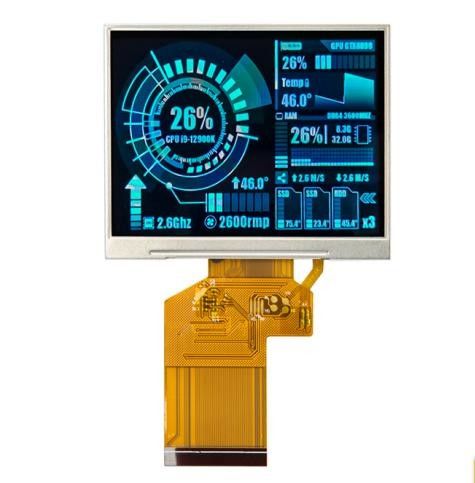

3.5 inch TFT LCD display with High Brightness and 800:1 Contrast Ratio
Product Description:
HC035IFA0032-C37, a 3.5-inch IPS display module, is common in digital doorbell, multi-functional CCTV tester, carbon dioxide detector and other application fields. Its resolution of 640*480 pixels can meet the requirements of most users for a 3.5-inch display screen. The backlight of 1000nits and the contrast ratio of 800:1 make the screen display more realistic and the text easier to read. The outer frame of this display module is 76.84mm*63.84mm*3.20mm, and the screen active area reaches 70.08mm*52.56mm. Users can clearly see the image from the viewing angle of 85/85/85/85 (L/R/T/B). Moreover, the HC035IFA0032-C37 has a interface of 40pin RGB with high compatibility and can be connected to a variety of devices and systems, and its wide operation temperature range of -20°C to 70°C solves the problem of traditional displays being unable to adapt to harsh environments.
General Specification:
| P/N |
HC035IFA0032-C37
|
| Size | 3.5inch |
| Display type |
TFT Transmissive, Positive, IPS
|
| Resolution | 640*480 |
| Outline Dimension(mm) | 63.84(W )*76.84(H)*3.2(T)mm |
| Active Area(mm) | 70.08(W)*52.56(H)mm |
| Brightness(cd/m²) | 1000 |
| Viewing Angle(L/R/T/B) | 85/85/85/85 |
| Interface | 40pinRGB |
| Operation Temperature | -20~70℃ |
| Storge Temperature | -30~80℃ |
| Aspect ratio | 4:3 |
| Contrast ratio | 800 |
| Application | digital doorbell, multi-functional CCTV tester, carbon dioxide detector |
Pin assignment:
Product drawings:
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
