Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC043TE30029-B03V01
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC043TE30029-B03V01 |
Size: |
4.3"(TN) |
Display Type: |
(TN) |
Resolution: |
480*272 |
Outline Dimension: |
105.5(W )*67.2(H)*2.9(T)mm |
Active Area: |
95.04(W)*53.856(H)mm |
Brightness: |
300cd/m2 |
Interface: |
40pinRGB |
Viewing Angle: |
70/70/50/70 |
Operation Temp.: |
-20~70 |
Storage Temp.: |
-20~70 |
Contrast Ratio: |
500 |
Aspect Rati16:9o: |
16:9 |
Application: |
LCD Gauge, Video Door Phone, SD Card Reader And Pipeline Inspection Camera |
P/N: |
HC043TE30029-B03V01 |
Size: |
4.3"(TN) |
Display Type: |
(TN) |
Resolution: |
480*272 |
Outline Dimension: |
105.5(W )*67.2(H)*2.9(T)mm |
Active Area: |
95.04(W)*53.856(H)mm |
Brightness: |
300cd/m2 |
Interface: |
40pinRGB |
Viewing Angle: |
70/70/50/70 |
Operation Temp.: |
-20~70 |
Storage Temp.: |
-20~70 |
Contrast Ratio: |
500 |
Aspect Rati16:9o: |
16:9 |
Application: |
LCD Gauge, Video Door Phone, SD Card Reader And Pipeline Inspection Camera |

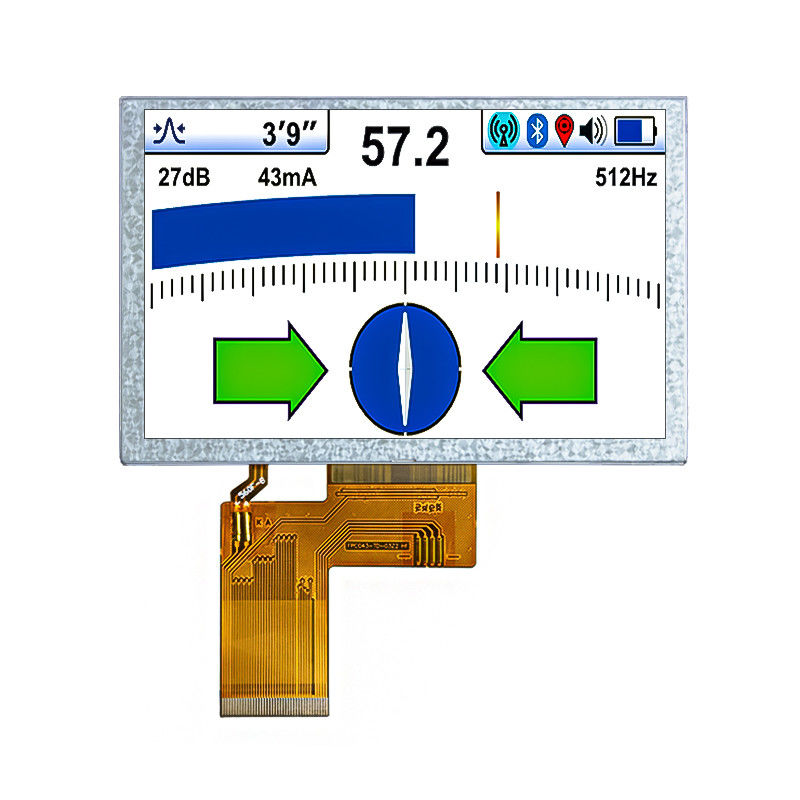

4.3inch High brightness TFT display with 300nits and 500:1 contrast ratio
Product Description:
HC043TE30029-B03V01 is encased within an compact frame of 105.50mm*67.20mm*2.90mm, showing an active area of 95.04mm*53.85mm. Its small size of 4.3 inches makes it perfect for LCD gauge, video door phone, SD card reader and pipeline inspection camera. It possesses a TN display mode, which has the performance advantage of extremely fast response speed. With a resolution of 480*272 pixels and the brightness of 300nits, this display presents images and text accurately and clearly. And the contrast ratio of 500:1 also enhances the display's color display. The interface of 40Pin RGB enables this module to achieve efficient data transmission with low power consumption and the operation temperature of -20℃ to 70℃ allows this display to run steadily in harsh environments.
General Specification:
| P/N |
HC043TE30029-B03V01
|
| Size | 4.3inch |
| Display type |
Normally White, Transmissive
|
| Resolution | 480*272 |
| Outline Dimension(mm) | 105.5(W )*67.2(H)*2.9(T)mm |
| Active Area(mm) | 95.04(W)*53.856(H)mm |
| Brightness(cd/m²) | 300 |
| Viewing Angle(L/R/T/B) | 70/70/50/70 |
| Interface | 40pinRGB |
| Operation Temperature | -20~70 |
| Storge Temperature | -20~70 |
| Aspect ratio | 16:9 |
| Contrast ratio | 500 |
| Application | LCD gauge, video door phone, SD card reader and pipeline inspection camera |
Pin assignment:
Electrical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition |
| Supply Voltage | Vf | - | 15.5 | - | V | If=40mA |
| Supply Current | If | - | 40 | - | mA | - |
| Life Time | - | 30000 | - | - | hrs | If=40mA |
Product drawings:
4-4.3inch lcd display series:
|
4-4.3inch LCD Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 4" | HC040I*30021-C82 | IPS | 480*480 | 74.66*76.54*2.15mm | 71.856*70.176mm | 40pinRGB | 800 | 300 | -20~70℃ | -30~80℃ |
| 2 | 4" | HC041IXA5030-F77 | IPS | 1280*640 | 106.9*61.9*2.9mm | 92.544*46.272mm | 40pinRGB | 1500 | 1500 | -40~105℃ | -40~105℃ |
| 3 | 4" | HC040I*30021-C82V.C | IPS | 480*480 | 86*86*37.5mm | 71.856*70.176mm | 40pinRGB | 800 | 250 | -20~70℃ | -30~80℃ |
| 4 | 4.3" | HC043TE20029-B58 | TN | 480*272 | 105.5*67.2*2.9mm | 95.04*53.856mm | 40pinRGB | 500 | 200 | -20~70℃ | -30~70℃ |
| 5 | 4.3" | HC043IG30029-D92 | IPS | 800*480 | 105.5*67.2*2.9mm | 95.04*53.86mm | 12pinSPI | 1200 | 300 | -20~70℃ | -30~80℃ |
| 6 | 4.3" | HC043IG30029-D92V.1 | IPS | 800*480 | 105.5*67.2*4.05mm | 95.04 ×53.856mm | 12pinSPI | 500 | 280 | -20~70℃ | -30-80℃ |
| 7 | 4.3" | HC043TE20029-B55 | TN | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 500 | 200 | -20~70℃ | -30-80℃ |
| 8 | 4.3" | HC043TE30029-B03V01 | TN | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 500 | 300 | -20~70℃ | -30-80℃ |
| 9 | 4.3" | HC043TE30029-B03V.C | TN | 480*272 | 105.5*67.2*4.5mm | 95.04×53.856mm | 40pinRGB | 500 | 300 | -20~70℃ | -30-80℃ |
| 10 | 4.3" | HC043TE45031-B03 | TN | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 500 | 450 | -20~70℃ | -30-80℃ |
| 11 | 4.3" | HC043TE50029-B03 | TN | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 500 | 500 | -20~70℃ | -30-80℃ |
| 12 | 4.3" | HC043TE50029-B03V02 | TN | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 500 | 500 | -20~70℃ | -30-80℃ |
| 13 | 4.3" | HC043TE80031-B80 | TN | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 500 | 800 | -20~70℃ | -30-80℃ |
| 14 | 4.3" | HC043TE78040-B80 | TN | 480*272 | 105.5*67.2*4.0mm | 95.04*53.868mm | 40pinRGB | 500 | 780 | -20~70℃ | -30-80℃ |
| 15 | 4.3" | HC043IE30031-B80 | IPS | 480*272 | 105.5*67.2*3.0mm | 95.04*53.856mm | 40pinRGB | 800 | 300 | -20~70℃ | -30-80℃ |
| 16 | 4.3" | HC043TE30040-B80V.1 | TN | 480*272 | 105.5*67.2*4.05mm | 95.04×53.856mm | 40pinRGB | 500 | 200 | -20~70℃ | -20~70℃ |
| 17 | 4.3" | HC043TE40040-A46V.1 | TN | 480*272 | 104.7×66.4×4mm | 95.04×53.856mm | 40pinRGB | 500 | 400 | -20~70℃ | --20~70℃ |
| 18 | 4.3" | HC043IG80030-B56 | IPS | 800*480 | 105.5*67.2*3.0mm | 95.04*53.856mm | 40pinRGB | 800 | 800 | -20~70℃ | -30~80℃ |
| 19 | 4.3" | HC043IE40029-F47 | IPS | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 800 | 400 | -20~70℃ | -30~80℃ |
| 20 | 4.3" | HC043IE50029-D65 | IPS | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 800 | 500 | -20~70℃ | -30~80℃ |
| 21 | 4.3" | HC043IE50029-D65V.C | IPS | 480*272 | 105.5*67.2*4.35mm | 95.04*53.86mm | 40pinRGB | 800 | 450 | -20~70℃ | -30~80℃ |
| 22 | 4.3" | HC043IEA0029-B03H | IPS | 480*272 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 800 | 1000 | -30~85℃ | -30~85℃ |
| 23 | 4.3" | HC043IG50029-D20 | IPS | 800*480 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 1200 | 500 | -20~70℃ | -30~80℃ |
| 24 | 4.3" | HC043IGA0029-D20H | IPS | 800*480 | 105.5*67.2*2.9mm | 95.04*53.86mm | 40pinRGB | 1200 | 1000 | -30~85℃ | -30~85℃ |
