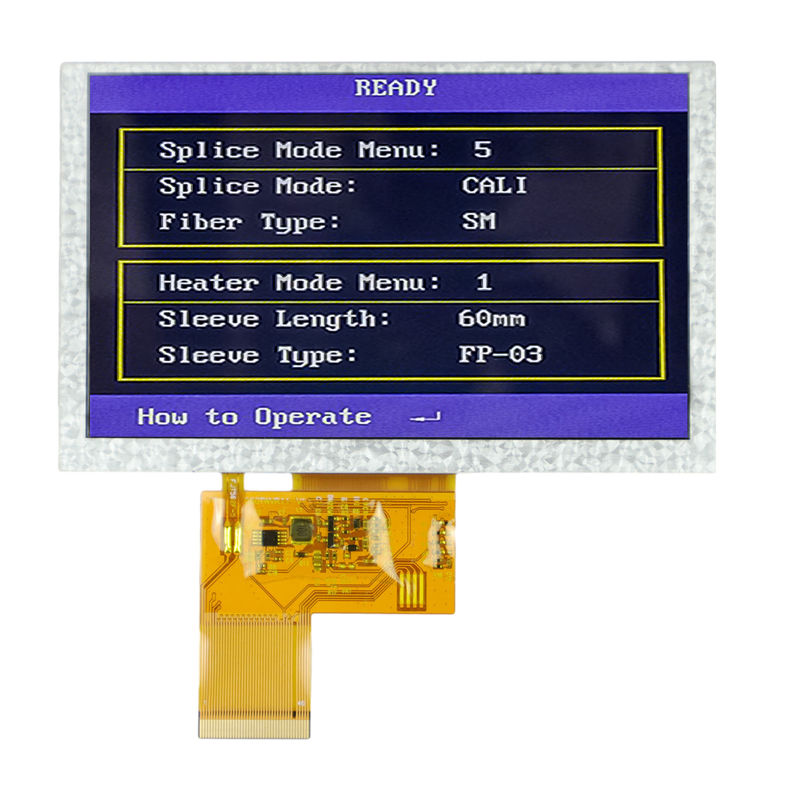

250nits Brightness 5 Inch TFT LCD Display Module With 40pin RGB Interface

Name: 250nits Brightness 5 Inch TFT LCD Display Module With 40pin RGB Interface
Brand: Heng Cheng Electronics Technology (HK) Co.,Ltd
SKU: HC050TG25031-27
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HETECH

Certification: ISO9001,ISO14001,ISO13485,IATF16949

Model Number: HC050TG25031-27

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Delivery Time: 4-6weeks

Payment Terms: T/T

Supply Ability: 50K/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                250nits 5 Inch TFT LCD Display, TFT LCD Display Module 40pin, 250nits  TFT LCD Display Module


P/N:	HC050TG25031-27	Size:	5"(TN)
Display Type:	(TN)	Resolution:	800*480
Outline Dimension:	120.7(W )75.8(H)3.1(T)mm	Active Area:	108(W)*64.8(H)mm
Brightness:	250cd/m2	Interface:	40pinRGB
Viewing Angle:	70/70/50/70	Driver IC:	ILI5960&ILI6122
Operation Temp.:	-20~75℃	Storage Temp.:	-30~85℃
Contrast Ratio:	500	Aspect Rati16:9o:	16:9
Application:	Articulating Inspection Camera, Fiber Optic Fusion Splicer, Hair Analyzer Machine

P/N:	HC050TG25031-27
Size:	5"(TN)
Display Type:	(TN)
Resolution:	800*480
Outline Dimension:	120.7(W )75.8(H)3.1(T)mm
Active Area:	108(W)*64.8(H)mm
Brightness:	250cd/m2
Interface:	40pinRGB
Viewing Angle:	70/70/50/70
Driver IC:	ILI5960&ILI6122
Operation Temp.:	-20~75℃
Storage Temp.:	-30~85℃
Contrast Ratio:	500
Aspect Rati16:9o:	16:9
Application:	Articulating Inspection Camera, Fiber Optic Fusion Splicer, Hair Analyzer Machine

250nits Brightness 5 Inch TFT LCD Display Module With 40pin RGB Interface

5-inch TFT LCD Display module with 40pin RGB Interface and 250nits Brightness

Product Description:

HC050TG25031-27 is a 5-inch TN display module that be applied to articulating inspection camera, fiber optic fusion splicer, hair analyzer machine and other application fields. Users can experience striking details on the display screen with the resolution of 800*480 pixels. The brightness of 250nits and the contrast ratio of 500:1 allow users to enjoy a comfortable visual experience indoors. The interface of 40pin RGB achieves effective transmission of data and clear presentation of images. Embedded in an outer frame of 120.70mm*75.80mm*3.10mm, this display presents an active area of 108.00mm*64.80mm. Furthermore, With the operation temperature of -20℃to 70℃, the HC050TG25031-27 can stand up to extreme temperatures.

General Specification:

P/N	HC050TG25031-27
Size	5inch
Display type	Normally White, Transmissive LCD
Resolution	800*480
Outline Dimension(mm)	120.7(W )75.8(H)3.1(T)mm
Active Area(mm)	108(W)*64.8(H)mm
Brightness(cd/m²)	250
Viewing Angle(L/R/T/B)	70/70/50/70
Interface	40pinRGB
Operation Temperature	-20~75℃
Storge Temperature	-30~85℃
Aspect ratio	16:9
Contrast ratio	500
Application	articulating inspection camera, fiber optic fusion splicer, hair analyzer machine

Pin assignment:

250nits Brightness 5 Inch TFT LCD Display Module With 40pin RGB Interface 0

Product drawings:

5-inch lcd display series:

5-inch LCD Display Sizes
Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc.
No.	Size	Part No.	LCD type	Resolution	Outline dimension	Active area	Interface	Contrast ratio	Brightness	Operation temperature	Storage temperature
1	5"	HC050IG25031-B04V01	IPS	800*480	120.775.82.9mm	108*64.8mm	40pinRGB	1000	250	-20~70℃	-30~80℃
2	5"	HC050IG40031-B04V01	IPS	800*480	120.775.82.9mm	108*64.8mm	40pinRGB	1000	400	-20~70℃	-30~80℃
3	5"	HC050IG50031-B04V01	IPS	800*480	120.775.82.9mm	108*64.8mm	40pinRGB	1000	500	-20~70℃	-30~80℃
4	5"	HC050IG80031-B04V03	IPS	800*480	120.775.83.1mm	108*64.8mm	40pinRGB	1000	800	-20~70℃	-30~70℃
5	5"	HC050IG80031-B04V05	IPS	800*480	120.775.82.9mm	108*64.8mm	40pinRGB	1000	1000	-30~85℃	-30~85℃
6	5"	HC050IGA0031-B04	IPS	800*480	120.775.82.9mm	108*64.8mm	40pinRGB	1000	1000	-30~85℃	-30~85℃
7	5"	HC050IGA5031-B04	IPS	800*480	120.775.82.9mm	108*64.8mm	40pinRGB	1000	1500	-20~70℃	-30-80℃
8	5"	HC050IGB0031-B04	IPS	800*480	120.775.82.9mm	108*64.8mm	40pinRGB	1000	2000	-20~70℃	-30-80℃
9	5"	HC050IG35031-B04	IPS	800*480	120.7×76.4×3.1mm	108*64.8mm	50pinRGB	800	350	-20~70℃	-20~70℃
10	5"	HC050IG40031-B04	IPS	800*480	120.775.83.1mm	108*64.8mm	40pinRGB	1000	400	-20~70℃	-30-80℃
11	5"	HC050IG40031-B04V.C	IPS	800*480	127.085.84.8mm	108*64.8mm	40pinRGB	1000	350	-20~70℃	-20~70℃
12	5"	HC050IG50031-B06V01	IPS	800*480	120.775.82.9mm	108*64.8mm	50pinRGB	1000	500	-20~70℃	-30-80℃
13	5"	HC050IG40031-B06V01	IPS	800*480	120.775.82.9mm	108*64.8mm	50pinRGB	1000	400	-20~70℃	-30-80℃
14	5"	HC050IG40029-D58	IPS	800*480	120.775.82.9mm	108*64.8mm	20pinLVDS	1000	400	-20~70℃	-30-80℃
15	5"	HC050IG40029-D58V.C	IPS	800*480	130.7085.804.68mm	95.04*53.856mm	20pinLVDS	1000	300	-20~70℃	-30-80℃
16	5"	HC050IGA0031-B08H	IPS	800*480	120.775.82.9mm	108*64.8mm	40pinLVDS	1000	1000	-20~70℃	-20~70℃
17	5"	HC050IGA3070-F22	IPS	800*480	12178.87mm	108*64.8mm	50pinRGB	1000	1300	-30~85℃	--30~85℃
18	5"	HC050IG30029-F41V.C	IPS	800*480	120.775.82.9mm	108*64.8mm	12pinRGB	1000	300	-20~70℃	-30~80℃
19	5"	HC050IV60016-B17	IPS	1080x1920	64.5x117.7x1.6mm	61.641*109.584mm	34pinMIPI	1000	600	-20~60℃	-30~70℃
20	5"	HC050IV60016-B17 V.C	IPS	1080x1920	64.5x117.7x1.6mm	61.641*109.584mm	34pinMIPI	1000	600	-20~60℃	-30~80℃
21	5"	HC050TG25031-27	TN	800*480	120.775.82.9mm	108*64.8mm	40pinRGB	500	250	-20~70℃	-30~80℃
22	5"	HC050TG25031- 27V01	TN	800*480	120.775.83.1mm	108*64.8mm	40pinRGB	500	250	-20~70℃	-20~70℃
23	5"	HC050TG40031-27	TN	800*480	120.775.82.9mm	108*64.8mm	40pinRGB	500	250	-20~70℃	-30~80℃
24	5"	HC050TG30029-D12	TN	800*480	120.775.82.9mm	108*64.8mm	50pinRGB	500	300	-20~70℃	-30~80℃
25	5"	HC050TGA0029-D12	TN	800*480	120.775.82.9mm	108*64.8mm	50pinRGB	500	1000	-20~70℃	-30~80℃
26	5"	HC050IG30029-F41	IPS	800*480	120.776.34.75mm	108*64.8mm	12pinSPI	1000	300	-20~70℃	-30~80℃
27	5"	HC050TG50029-D12	TN	800*480	120.775.82.9mm	108*64.8mm	50pinRGB	500	500	-20~70℃	-30~80℃

Customization:

FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
