Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC050IG35031-B04
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC050IG35031-B04 |
Size: |
5"(IPS) |
Display Type: |
(IPS) |
Resolution: |
800*480 |
Outline Dimension: |
120.7(W )*76.4(H)*3.1(T)mm |
Active Area: |
108(W)*64.8(H)mm |
Brightness: |
350cd/m2 |
Interface: |
50pinRGB |
Viewing Angle: |
80/80/80/80 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-20~70℃ |
Contrast Ratio: |
800 |
Aspect Rati16:9o: |
16:9 |
Application: |
Motorcycle Navigator, A Car Reverse Camera, A Desktop Smart Static Printer |
P/N: |
HC050IG35031-B04 |
Size: |
5"(IPS) |
Display Type: |
(IPS) |
Resolution: |
800*480 |
Outline Dimension: |
120.7(W )*76.4(H)*3.1(T)mm |
Active Area: |
108(W)*64.8(H)mm |
Brightness: |
350cd/m2 |
Interface: |
50pinRGB |
Viewing Angle: |
80/80/80/80 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-20~70℃ |
Contrast Ratio: |
800 |
Aspect Rati16:9o: |
16:9 |
Application: |
Motorcycle Navigator, A Car Reverse Camera, A Desktop Smart Static Printer |

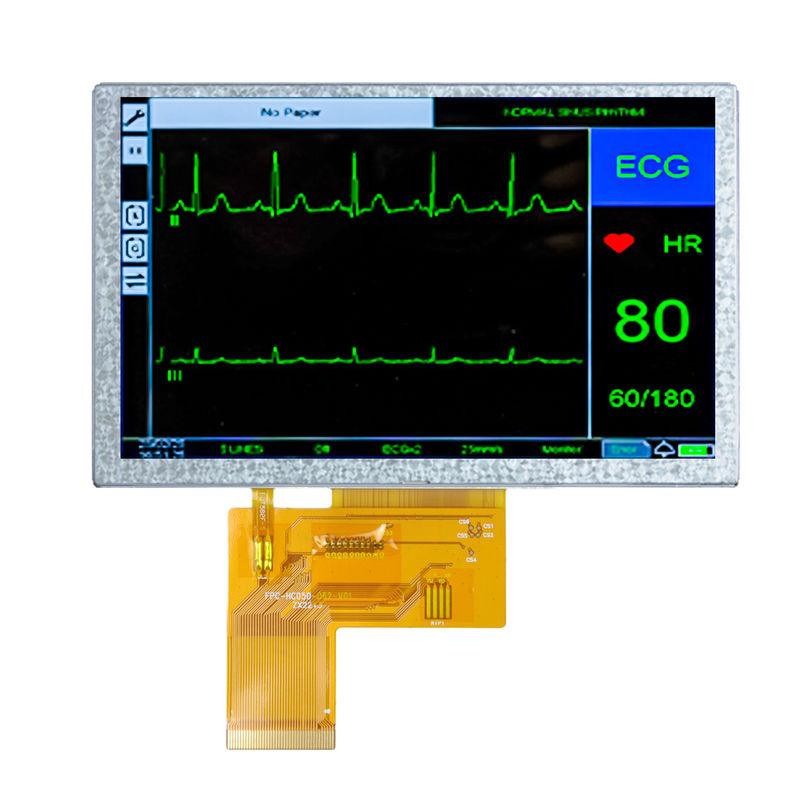

5 inch TFT LCD display with IPS display mode and 800*480 Resolution
Product Description:
HC050IG35031-B04 is an indispensable key media for smart products. It can accurately and intelligently convey information to users through a 5-inch screen. This display has an outstanding performance in technology, and its IPS display mode can support the screen with a presentation of brilliant color. With the resolution of 800*480 pixels, the luminance of 350nits and the contrast ratio of 800:1, this display enables users to enjoy a comfortable visual experience. Encased in an outer frame of 120.70mm*76.40mm*3.10mm, this display possesses a display active area of 108.00mm*64.80mm. And the 50pin RGB interface of this display has the advantages of efficient transmission and good stability, and has become one of the important connections between modern electronic devices and display devices. For example, this display can be perfectly assembled with a motorcycle navigator, a car reverse camera, a desktop smart static printer and other devices. Additionally, the operation temperature of the HC050IG35031-B04 can range from -20℃ to 70℃.
General Specification:
| P/N | HC050IG35031-B04 |
| Size | 5inch |
| Display type |
Normally Black, Transmissive
|
| Resolution | 800*480 |
| Outline Dimension(mm) | 120.7(W )*76.4(H)*3.1(T)mm |
| Active Area(mm) | 108(W)*64.8(H)mm |
| Brightness(cd/m²) | 350 |
| Viewing Angle(L/R/T/B) | 80/80/80/80 |
| Interface | 50pinRGB |
| Operation Temperature | -20~70℃ |
| Storge Temperature | -20~70℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 800 |
| Application | motorcycle navigator, a car reverse camera, a desktop smart static printer |
Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition |
| Voltage for LED backlight | Vf | - | 21.7 | - | V | If=40mA |
| Current for LED backlight | If | - | 40 | - | mA | - |
| LED life time | - | 20000 | - | - | hrs | If=40mA |
Product drawings:
5-inch lcd display series:
|
5-inch LCD Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 5" | HC050IG25031-B04V01 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 250 | -20~70℃ | -30~80℃ |
| 2 | 5" | HC050IG40031-B04V01 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 400 | -20~70℃ | -30~80℃ |
| 3 | 5" | HC050IG50031-B04V01 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 500 | -20~70℃ | -30~80℃ |
| 4 | 5" | HC050IG80031-B04V03 | IPS | 800*480 | 120.7*75.8*3.1mm | 108*64.8mm | 40pinRGB | 1000 | 800 | -20~70℃ | -30~70℃ |
| 5 | 5" | HC050IG80031-B04V05 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 6 | 5" | HC050IGA0031-B04 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 7 | 5" | HC050IGA5031-B04 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 1500 | -20~70℃ | -30-80℃ |
| 8 | 5" | HC050IGB0031-B04 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 2000 | -20~70℃ | -30-80℃ |
| 9 | 5" | HC050IG35031-B04 | IPS | 800*480 | 120.7×76.4×3.1mm | 108*64.8mm | 50pinRGB | 800 | 350 | -20~70℃ | -20~70℃ |
| 10 | 5" | HC050IG40031-B04 | IPS | 800*480 | 120.7*75.8*3.1mm | 108*64.8mm | 40pinRGB | 1000 | 400 | -20~70℃ | -30-80℃ |
| 11 | 5" | HC050IG40031-B04V.C | IPS | 800*480 | 127.0*85.8*4.8mm | 108*64.8mm | 40pinRGB | 1000 | 350 | -20~70℃ | -20~70℃ |
| 12 | 5" | HC050IG50031-B06V01 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 50pinRGB | 1000 | 500 | -20~70℃ | -30-80℃ |
| 13 | 5" | HC050IG40031-B06V01 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 50pinRGB | 1000 | 400 | -20~70℃ | -30-80℃ |
| 14 | 5" | HC050IG40029-D58 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 20pinLVDS | 1000 | 400 | -20~70℃ | -30-80℃ |
| 15 | 5" | HC050IG40029-D58V.C | IPS | 800*480 | 130.70*85.80*4.68mm | 95.04*53.856mm | 20pinLVDS | 1000 | 300 | -20~70℃ | -30-80℃ |
| 16 | 5" | HC050IGA0031-B08H | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinLVDS | 1000 | 1000 | -20~70℃ | -20~70℃ |
| 17 | 5" | HC050IGA3070-F22 | IPS | 800*480 | 121*78.8*7mm | 108*64.8mm | 50pinRGB | 1000 | 1300 | -30~85℃ | --30~85℃ |
| 18 | 5" | HC050IG30029-F41V.C | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 12pinRGB | 1000 | 300 | -20~70℃ | -30~80℃ |
| 19 | 5" | HC050IV60016-B17 | IPS | 1080x1920 | 64.5x117.7x1.6mm | 61.641*109.584mm | 34pinMIPI | 1000 | 600 | -20~60℃ | -30~70℃ |
| 20 | 5" | HC050IV60016-B17 V.C | IPS | 1080x1920 | 64.5x117.7x1.6mm | 61.641*109.584mm | 34pinMIPI | 1000 | 600 | -20~60℃ | -30~80℃ |
| 21 | 5" | HC050TG25031-27 | TN | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 22 | 5" | HC050TG25031- 27V01 | TN | 800*480 | 120.7*75.8*3.1mm | 108*64.8mm | 40pinRGB | 500 | 250 | -20~70℃ | -20~70℃ |
| 23 | 5" | HC050TG40031-27 | TN | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 24 | 5" | HC050TG30029-D12 | TN | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 50pinRGB | 500 | 300 | -20~70℃ | -30~80℃ |
| 25 | 5" | HC050TGA0029-D12 | TN | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 50pinRGB | 500 | 1000 | -20~70℃ | -30~80℃ |
| 26 | 5" | HC050IG30029-F41 | IPS | 800*480 | 120.7*76.3*4.75mm | 108*64.8mm | 12pinSPI | 1000 | 300 | -20~70℃ | -30~80℃ |
| 27 | 5" | HC050TG50029-D12 | TN | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 50pinRGB | 500 | 500 | -20~70℃ | -30~80℃ |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
