Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC050IG80031-B04V03
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC050IG80031-B04V03 |
Size: |
5"(IPS) |
Display Type: |
(IPS) |
Resolution: |
800*480 |
Outline Dimension: |
120.7(W )*75.8(H)*3.1(T)mm |
Active Area: |
108(W)*64.8(H)mm |
Brightness: |
800cd/m2 |
Interface: |
40pinRGB |
Viewing Angle: |
80/80/80/80 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
1000 |
Aspect Rati16:9o: |
16:9 |
Application: |
Electric Vehicles And Motorcycle Dashboard. |
P/N: |
HC050IG80031-B04V03 |
Size: |
5"(IPS) |
Display Type: |
(IPS) |
Resolution: |
800*480 |
Outline Dimension: |
120.7(W )*75.8(H)*3.1(T)mm |
Active Area: |
108(W)*64.8(H)mm |
Brightness: |
800cd/m2 |
Interface: |
40pinRGB |
Viewing Angle: |
80/80/80/80 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
1000 |
Aspect Rati16:9o: |
16:9 |
Application: |
Electric Vehicles And Motorcycle Dashboard. |

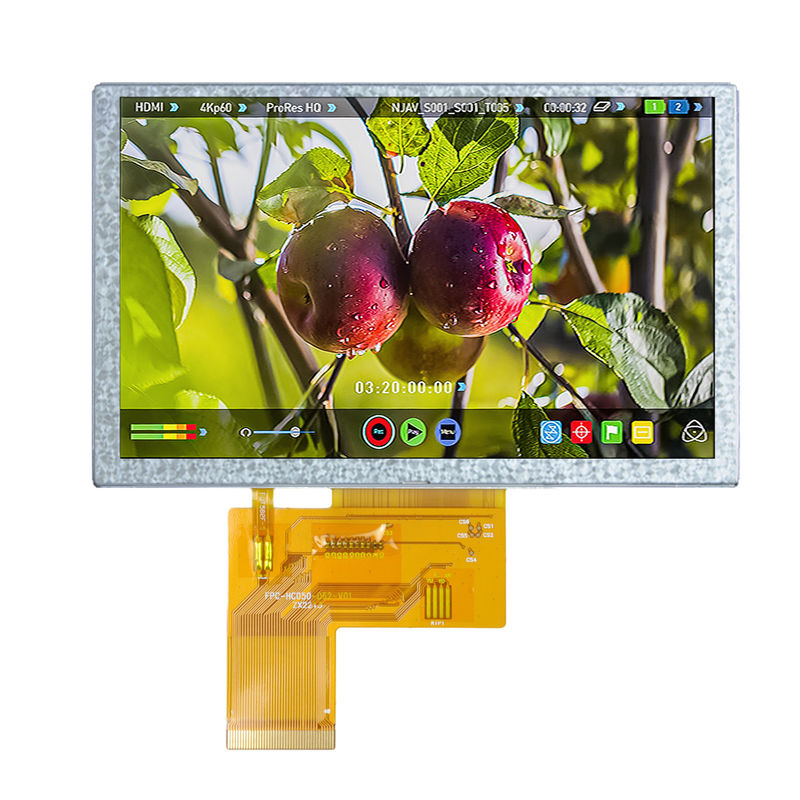

5 Inch TFT LCD screen 800x480 Resolution and 40pin RGB Interface
Product Description:
HC050IG80031-B04V03, a 5-inch IPS display module, shows high stability during long-term use. Its resolution of 800*480 pixels can bring a clear display effect to users. Meanwhile, the contrast ratio of 1000:1 and the brightness of 800 nits allow the screen to present real and vivid dynamic images. Under the temperatures from -20℃ to 70℃, this display can work continuously without interference. This display is equipped with a 40pin RGB interface design, which has the advantages of more efficient data transmission and better color presentation. In addition, the active area of 108.00mm*64.80mm and the outline dimension of 120.70mm*75.80mm*3.10mm can help the HC050IG80031-B04V03 be perfectly used in electric vehicles and motorcycle dashboard.
General Specification:
| P/N |
HC050IG80031-B04V03
|
| Size | 5inch |
| Display type |
Normally Black,IPS
|
| Resolution | 800*480 |
| Outline Dimension(mm) | 120.7(W )*75.8(H)*3.1(T)mm |
| Active Area(mm) | 108(W)*64.8(H)mm |
| Brightness(cd/m²) | 800 |
| Viewing Angle(L/R/T/B) | 80/80/80/80 |
| Interface | 40pinRGB |
| Operation Temperature | -20~70℃ |
| Storge Temperature | -30~80℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 1000 |
| Application | electric vehicles and motorcycle dashboard. |
Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition |
| Voltage for LED backlight | Vf | 24.5 | 27 | 27.9 | V | If=40mA |
| Current for LED backlight | If | - | 40 | - | mA | - |
| LED life time | - | - | 20000 | - | hrs | If=40mA |
Product drawings:
5-inch lcd display series:
|
5-inch LCD Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 5" | HC050IG25031-B04V01 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 250 | -20~70℃ | -30~80℃ |
| 2 | 5" | HC050IG40031-B04V01 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 400 | -20~70℃ | -30~80℃ |
| 3 | 5" | HC050IG50031-B04V01 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 500 | -20~70℃ | -30~80℃ |
| 4 | 5" | HC050IG80031-B04V03 | IPS | 800*480 | 120.7*75.8*3.1mm | 108*64.8mm | 40pinRGB | 1000 | 800 | -20~70℃ | -30~70℃ |
| 5 | 5" | HC050IG80031-B04V05 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 6 | 5" | HC050IGA0031-B04 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 7 | 5" | HC050IGA5031-B04 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 1500 | -20~70℃ | -30-80℃ |
| 8 | 5" | HC050IGB0031-B04 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 2000 | -20~70℃ | -30-80℃ |
| 9 | 5" | HC050IG35031-B04 | IPS | 800*480 | 120.7×76.4×3.1mm | 108*64.8mm | 50pinRGB | 800 | 350 | -20~70℃ | -20~70℃ |
| 10 | 5" | HC050IG40031-B04 | IPS | 800*480 | 120.7*75.8*3.1mm | 108*64.8mm | 40pinRGB | 1000 | 400 | -20~70℃ | -30-80℃ |
| 11 | 5" | HC050IG40031-B04V.C | IPS | 800*480 | 127.0*85.8*4.8mm | 108*64.8mm | 40pinRGB | 1000 | 350 | -20~70℃ | -20~70℃ |
| 12 | 5" | HC050IG50031-B06V01 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 50pinRGB | 1000 | 500 | -20~70℃ | -30-80℃ |
| 13 | 5" | HC050IG40031-B06V01 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 50pinRGB | 1000 | 400 | -20~70℃ | -30-80℃ |
| 14 | 5" | HC050IG40029-D58 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 20pinLVDS | 1000 | 400 | -20~70℃ | -30-80℃ |
| 15 | 5" | HC050IG40029-D58V.C | IPS | 800*480 | 130.70*85.80*4.68mm | 95.04*53.856mm | 20pinLVDS | 1000 | 300 | -20~70℃ | -30-80℃ |
| 16 | 5" | HC050IGA0031-B08H | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinLVDS | 1000 | 1000 | -20~70℃ | -20~70℃ |
| 17 | 5" | HC050IGA3070-F22 | IPS | 800*480 | 121*78.8*7mm | 108*64.8mm | 50pinRGB | 1000 | 1300 | -30~85℃ | --30~85℃ |
| 18 | 5" | HC050IG30029-F41V.C | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 12pinRGB | 1000 | 300 | -20~70℃ | -30~80℃ |
| 19 | 5" | HC050IV60016-B17 | IPS | 1080x1920 | 64.5x117.7x1.6mm | 61.641*109.584mm | 34pinMIPI | 1000 | 600 | -20~60℃ | -30~70℃ |
| 20 | 5" | HC050IV60016-B17 V.C | IPS | 1080x1920 | 64.5x117.7x1.6mm | 61.641*109.584mm | 34pinMIPI | 1000 | 600 | -20~60℃ | -30~80℃ |
| 21 | 5" | HC050TG25031-27 | TN | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 22 | 5" | HC050TG25031- 27V01 | TN | 800*480 | 120.7*75.8*3.1mm | 108*64.8mm | 40pinRGB | 500 | 250 | -20~70℃ | -20~70℃ |
| 23 | 5" | HC050TG40031-27 | TN | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 24 | 5" | HC050TG30029-D12 | TN | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 50pinRGB | 500 | 300 | -20~70℃ | -30~80℃ |
| 25 | 5" | HC050TGA0029-D12 | TN | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 50pinRGB | 500 | 1000 | -20~70℃ | -30~80℃ |
| 26 | 5" | HC050IG30029-F41 | IPS | 800*480 | 120.7*76.3*4.75mm | 108*64.8mm | 12pinSPI | 1000 | 300 | -20~70℃ | -30~80℃ |
| 27 | 5" | HC050TG50029-D12 | TN | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 50pinRGB | 500 | 500 | -20~70℃ | -30~80℃ |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
