Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC070IY30025-E24V.C
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC070IY30025-E24V.C |
Size: |
7"(IPS) |
Display Type: |
(IPS) |
Resolution: |
800*1280 |
Outline Dimension: |
101.66(W )*162.27(H)*4.3(T)mm |
Active Area: |
94.2(W)*150.72(H)mm |
Brightness: |
300cd/m2 |
Interface: |
31pinMIPI |
Viewing Angle: |
80/80/80/80 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-20~70℃ |
Contrast Ratio: |
1000 |
Aspect Rati16:9o: |
10:16 |
Application: |
Motorcycle, Facial Recognition And Color B Mode Ultrasonography Ultrasonic Detector |
P/N: |
HC070IY30025-E24V.C |
Size: |
7"(IPS) |
Display Type: |
(IPS) |
Resolution: |
800*1280 |
Outline Dimension: |
101.66(W )*162.27(H)*4.3(T)mm |
Active Area: |
94.2(W)*150.72(H)mm |
Brightness: |
300cd/m2 |
Interface: |
31pinMIPI |
Viewing Angle: |
80/80/80/80 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-20~70℃ |
Contrast Ratio: |
1000 |
Aspect Rati16:9o: |
10:16 |
Application: |
Motorcycle, Facial Recognition And Color B Mode Ultrasonography Ultrasonic Detector |

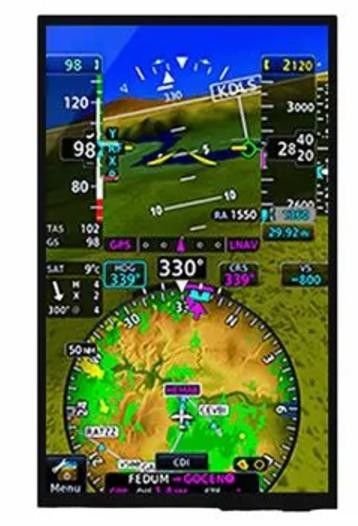

Product Description:
HC070IY30025-E24V.C is an excellent interactive solution designed for customer in every industry. There is a precise multi-touch panel bonded to the 7-inch display, which makes this display standout in the field of technology. Using TFT and IPS technology, it not only has a wide viewing angle, but also performs well in response speed and power consumption control. Its high resolution of 800*1280 pixels makes the image presented on the screen clearer. The brightness of 300nits and contrast ratio of 1000:1 of this display can give users a very comfortable visual experience. Equipped with an interface of 31pin MIPI, this display with an outline dimension of 101.66mm*162.27mm*4.3mm can be perfectly applied to syringe infusion pump and coffee machine. Additionally, in terms of operation temperature, the HC070IY30025-E24V.C can have a steady operation under the temperatures from -20℃ to 70℃ without performance failure.
General Specification:
| P/N |
HC070IY30025-E24V.C
|
| Size | 7inch |
| Display type |
Normally Black,IPS
|
| Resolution | 800*1280 |
| Outline Dimension(mm) | 101.66(W )*162.27(H)*4.3(T)mm |
| Active Area(mm) | 94.2(W)*150.72(H)mm |
| Brightness(cd/m²) | 300 |
| Viewing Angle(L/R/T/B) | 80/80/80/80 |
| Interface | 40pinRGB |
| Operation Temperature | -20~70℃ |
| Storge Temperature | --20~70℃ |
| Aspect ratio | 10:16 |
| Contrast ratio | 1000 |
| Application | syringe infusion pump and coffee machine |
Pin assignment:
Electrical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition |
| Supply Voltage | Vf | - | 16 | - | V | If=80mA |
| Supply Current | If | - | 80 | - | mA | - |
| Life Time | - | - | 50000 | - | hrs | If=80mA |
Product drawings:
7-inch lcd display series:
|
7-inch LCD Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 7" | HC070TG25035-B78 | TN | 800*480 | 164.9*100*3.5mm | 154.08*85.92mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 2 | 7" | HC070TG25035-B78V.C | TN | 800*480 | 164.9*100*5.9mm | 154.08*85.92mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 3 | 7" | HC070TG25035-A93 | TN | 800*480 | 164.9*100*3.45mm | 154.08*85.92mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 4 | 7" | HC070TG25051- 81V01 | TN | 800*480 | 164.9*100*5.1mm | 154.08*85.92mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 5 | 7" | HC070TG35057-C04V01 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 350 | -20~70℃ | -30~80℃ |
| 6 | 7" | HC070TG45057- 22V01 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 450 | -20~70℃ | -30~80℃ |
| 7 | 7" | HC070TG45057-C41 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 450 | -20~70℃ | -30-80℃ |
| 8 | 7" | HC070TG45057-C93 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 450 | -20~70℃ | -30-80℃ |
| 9 | 7" | HC070TG80057-B21V.1 | TN | 800*480 | 165*100*7.2mm | 154.08*85.92mm | 50pinRGB | 500 | 800 | -20~70℃ | -30-80℃ |
| 10 | 7" | HC070TGA0057-C41 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 1000 | -20~70℃ | -30-80℃ |
| 11 | 7" | HC070TGA0057-D57 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 1000 | -30-85℃ | -30-85℃ |
| 12 | 7" | HC070TGA0057-D57V.1 | TN | 800*480 | 164.9*100*7.6mm | 154.08*85.92mm | 50pinRGB | 500 | 1000 | -30-85℃ | -30-85℃ |
| 13 | 7" | HC070TGA5057-C41 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 1000 | -20~70℃ | -30-80℃ |
| 14 | 7" | HC070TGB0057-C41 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 2000 | -20~70℃ | -30-80℃ |
| 15 | 7" | HC070IK25035-B18V.C | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 40pinLVDS | 800 | 250 | -20~70℃ | -20~70℃ |
| 16 | 7" | HC070IKA0057-F59 | IPS | 1024*600 | 222.77*120.11*7.55mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 17 | 7" | HC070IKA0057-F59V.C | IPS | 1024*600 | 222.77*120.11*7.55mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1000 | --30~85℃ | --30~85℃ |
| 18 | 7" | HC070IKA0057-E13 | IPS | 1024*600 | 164.9*100*5.61mm | 154.21*85.92mm | 50pinRGB | 800 | 1000 | -20~70℃ | -30~80℃ |
| 19 | 7" | HC070IKA5057-D32 | IPS | 1024*600 | 164.9*100*5.4mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1500 | -30~80℃ | -30~80℃ |
| 20 | 7" | HC070IKA0057-F59 | IPS | 1024*600 | 222.77*120.11*7.55mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1000 | ---30~85℃ | --30~85℃ |
| 21 | 7" | HC070TG50052-A65 | TN | 800*480 | 165*104.44*5.2mm | 152.4*91.44mm | 40pinRGB | 400 | 550 | -20~70℃ | -30~80℃ |
| 22 | 7" | HC070TG50052-A65V.1 | TN | 800*480 | 165*104.44*6.6mm | 152.4*91.44mm | 40pinRGB | 400 | 450 | -20~70℃ | -30~80℃ |
| 23 | 7" | HC070IKA0035-D29V.C | IPS | 1024*600 | 165*104.00*6.2mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1000 | -20~70℃ | -30~80℃ |
| 24 | 7" | HC070IKA0057-B26H | IPS | 1024*600 | 164.9*100*5.7mm | 154.21*85.92mm | 50pinRGB | 800 | 1000 | -30~85℃ | -30~85℃ |
| 25 | 7" | HC070IG30055-G6V.C | IPS | 800*480 | 164.9*100*7.46mm | 153.84*85.63mm | 50pinRGB | 1000 | 300 | -20~70℃ | -30~80℃ |
| 26 | 7" | HC070IK45057-B36V.C | IPS | 1024*600 | 164.9*99.6*5.6mm | 154.21*85.92mm | 40pinRGB | 800 | 450 | -20~70℃ | -30~80℃ |
| 27 | 7" | HC070IK25035-B26 | IPS | 1024*600 | 164.86*99.96*3.5mm | 154.21*85.92mm | 50pinRGB | 800 | 330 | -20~60℃ | -30~70℃ |
| 28 | 7" | HC070IGA0072-F21 | IPS | 1200*1920 | 165.1*108.44*7.0mm | 152.4*91.44mm | 40pinRGB | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 29 | 7" | HC070IK40035-B95V03 | IPS | 1024*600 | 164.90*100.00*3.5mm | 154.21*85.92mm | 20pinLVDS | 1000 | 400 | -20~70℃ | -30~80℃ |
| 30 | 7" | HC070IG50052-F19V.C | IPS | 800*480 | 175.00*114.44*8.05mm | 152.40*91.44mm | 40pinLVDS | 1000 | 500 | -30~85℃ | -30~85℃ |
| 31 | 7" | HC070TG50057-F26 | TN | 800*480 | 164.90*100.00*5.61mm | 153.84*85.63mm | 60pinRGB | 500 | 500 | -20~70℃ | -30~80℃ |
| 32 | 7" | HC070TG60035-D36V.C | TN | 800*480 | 178.60*111.64*5.45mm | 154.08*85.92mm | 40pinRGB | 500 | 600 | -20~70℃ | -30~80℃ |
| 33 | 7" | HC070IGA0055-G06 | IPS | 800*480 | 164.9*100*5.5mm | 153.84*85.63mm | 50pinRGB | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 34 | 7" | HC070IZ30024-F83V.C | IPS | 1200*1920 | 98.75*160.85*2.38mm | 94.50*151.20mm | 40pinMIPI | 900 | 300 | -20~70℃ | -30~80℃ |
| 35 | 7" | HC070IK25035-B18 | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 40pinLVDS | 1000 | 250 | -20~70℃ | -20~70℃ |
| 36 | 7" | HC070IK35026-C57 | IPS | 1024*600 | 163.8*97.0*2.6mm | 154.21*85.92mm | 30pinMIPI | 500 | 350 | -20~70℃ | -20~70℃ |
| 37 | 7" | HC070IK35026-C57 V.C | IPS | 1024*600 | 163.8*97.0*2.6mm | 154.21*85.92mm | 30pinMIPI | 500 | 350 | -20~70℃ | -20~70℃ |
| 38 | 7" | HC070IK25035-B26V03 | IPS | 1024*600 | 164.86*99.96*3.5mm | 154.21*85.92mm | 50pinRGB | 800 | 500 | -20~60℃ | -30~70℃ |
| 39 | 7" | HC070IK35057-B26 | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 50pinRGB | 1000 | 250 | -20~70℃ | -30~80℃ |
| 40 | 7" | HC070IK40035-B95V02 | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 20pinLVDS | 1000 | 400 | -20~70℃ | -20~70℃ |
| 41 | 7" | HC070IK60035-B18 | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 40pinLVDS | 800 | 600 | -20~70℃ | -20~70℃ |
| 42 | 7" | HC070IK80035-B36 | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 40pinLVDS | 1000 | 400 | -20~70℃ | -30~80℃ |
| 43 | 7" | HC070IK65057-B36 | IPS | 1024*600 | 164.9*100*5.7mm | 154.21*85.92mm | 40pinLVDS | 800 | 650 | -20~70℃ | -30~80℃ |
| 44 | 7" | HC070IK65057-E13 | IPS | 1024*600 | 164.9*100*5.61mm | 154.21*85.92mm | 50pinRGB | 800 | 650 | -20~70℃ | -30~80℃ |
| 45 | 7" | HC070IKA0057-B26 | IPS | 1024*600 | 164.9*100*5.7mm | 154.21*85.92mm | 50pinRGB | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 46 | 7" | HC070IKA0057-D32 | IPS | 1024*600 | 164.9*100*5.4mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1000 | -30~85℃ | --30~85℃ |
| 47 | 7" | HC070IY30025-C18 | IPS | 800*1280 | 103.46*162.03*2.55mm | 94.2*150.72mm | 40pinMIPI | 800 | 300 | -20~70℃ | -30~80℃ |
| 48 | 7" | HC070IK25035-B18 V.C | IPS | 1024*600 | 164.9*100*6.2mm | 154.21*85.92mm | 40pinLVDS | 800 | 250 | -20~70℃ | -30~80℃ |
| 49 | 7" | HC070IZ30024-F83 | IPS | 1200*1920 | 98.75*160.85*2.38mm | 94.5*151.20mm | 40pinMIPI | 900 | 300 | -20~70℃ | -30~80℃ |
| 50 | 7" | HC070TG25035-A94 | TN | 800*480 | 164.9*100*3.5mm | 154.08*85.92mm | 50pinRGB | 800 | 250 | -20~70℃ | -30~80℃ |
| 51 | 7" | HC070TG25035-B78 | TN | 800*480 | 164.9*100*3.5mm | 154.08*85.92mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 52 | 7" | HC070TG25035-D68 | TN | 800*480 | 164.9*100*3.5mm | 154.08*85.92mm | 50pinRGB | 800 | 250 | -20~70℃ | -30~80℃ |
| 53 | 7" | HC070TG35052-A63 | TN | 800*480 | 165*104.44*5.2mm | 152.4*91.44mm | 40pinRGB | 400 | 350 | -20~70℃ | -30~80℃ |
| 54 | 7" | HC070TG35052-A65 | TN | 800*480 | 165*104.44*5.2mm | 152.4*91.44mm | 40pinRGB | 1000 | 500 | -20~70℃ | -30~80℃ |
| 55 | 7" | HC070TG25051-05 | TN | 800*480 | 164.9*100*5.1mm | 154.08*85.92mm | 50pinRGB | 800 | 250 | -20~70℃ | -30~80℃ |
| 56 | 7" | HC070TG45057-21 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 450 | -20~70℃ | -30~80℃ |
| 57 | 7" | HC070TG45057-21V.1 | TN | 800*480 | 164.90*100.00*7.10mm | 154.08*85.92mm | 50pinRGB | 500 | 350 | -20~70℃ | -30~80℃ |
| 58 | 7" | HC070TG45057-21V.CV01 | TN | 800*480 | 177.70*112.70*7.35mm | 154.08*85.92mm | 50pinRGB | 500 | 350 | -20~70℃ | -30~80℃ |
| 59 | 7" | HC070TG45057-22 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 450 | -20~70℃ | -30~80℃ |
| 60 | 7" | HC070TG70057-D47 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 40pinRGB | 800 | 700 | -20~70℃ | -20~70℃ |
| 61 | 7" | HC070TGA0057-D05V02 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 40pinRGB | 800 | 1000 | -20~70℃ | -30~80℃ |
| 62 | 7" | HC070TGA0057-D05V01H | TN | 800*480 | 165*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 1000 | -30~85℃ | -30~85℃ |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
