Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC070TG45057-21
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC070TG45057-21 |
Size: |
7"(TN) |
Display Type: |
(TN) |
Resolution: |
800*480 |
Outline Dimension: |
164.9(W )*100(H)*5.7(T)mm |
Active Area: |
154.08(W)*85.92(H)mm |
Brightness: |
450cd/m2 |
Interface: |
50pinRGB |
Viewing Angle: |
70/70/50/70 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
500 |
Aspect Rati16:9o: |
16:9 |
Application: |
Tractors, Agricultural Equipment, Trailers, |
P/N: |
HC070TG45057-21 |
Size: |
7"(TN) |
Display Type: |
(TN) |
Resolution: |
800*480 |
Outline Dimension: |
164.9(W )*100(H)*5.7(T)mm |
Active Area: |
154.08(W)*85.92(H)mm |
Brightness: |
450cd/m2 |
Interface: |
50pinRGB |
Viewing Angle: |
70/70/50/70 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
500 |
Aspect Rati16:9o: |
16:9 |
Application: |
Tractors, Agricultural Equipment, Trailers, |
Product Description:

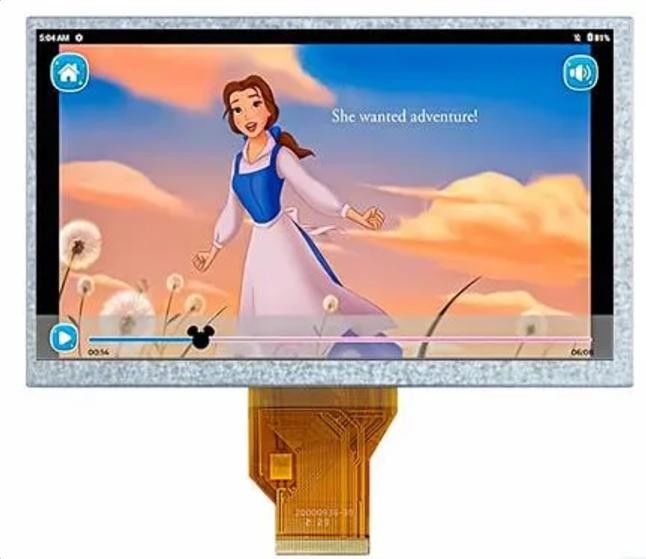

HC070TG45057-21 is a 7-inch wide-temperature TFT LCD display module which can work well in a wide temperature range of -20℃ to 70℃. Compared with traditional LCD screens, the HC070TG45057-21 has better temperature adaptability. This display features a TN display mode that gives the screen a fast response speed and its resolution of 800*480 pixels enables users to enjoy an excellent visual experience. Equipped with a brightness of 450nits and a contrast ratio of 500:1, this display can bring a clear and realistic image to users. The appropriate frame size of 164.90mm*100.00mm*5.70mm and active area of 154.08mm*85.92mm meet the needs of tractors, agricultural equipment, trailers, fluorescence immunoassay analysing system diagnosis analyzer and other equipment in various fields for the display size. And the interface of this display is 50pin RGB, which is compatible with a variety of systems and can transmit data stably.
General Specification:
| P/N |
HC070TG45057-21
|
| Size | 7inch |
| Display type |
Normally White, Transmissive
|
| Resolution | 800*480 |
| Outline Dimension(mm) | 164.9(W )*100(H)*5.7(T)mm |
| Active Area(mm) | 154.08(W)*85.92(H)mm |
| Brightness(cd/m²) | 450 |
| Viewing Angle(L/R/T/B) | 70/70/50/70 |
| Interface | 50pinRGB |
| Operation Temperature | -20~70℃ |
| Storge Temperature | -30~80℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 500 |
| Application | Tractors, agricultural equipment, trailers, |
Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT |
|
Voltage for LED backlight
|
Vf | 9.6 | 9.9 | 10.5 | V |
|
Current for LED backlight
|
If | 170 | 180 | 200 | mA |
|
LED life time
|
- | 30000 | - | - | hrs |
Product drawings:
7-inch lcd display series:
|
7-inch LCD Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 7" | HC070TG25035-B78 | TN | 800*480 | 164.9*100*3.5mm | 154.08*85.92mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 2 | 7" | HC070TG25035-B78V.C | TN | 800*480 | 164.9*100*5.9mm | 154.08*85.92mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 3 | 7" | HC070TG25035-A93 | TN | 800*480 | 164.9*100*3.45mm | 154.08*85.92mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 4 | 7" | HC070TG25051- 81V01 | TN | 800*480 | 164.9*100*5.1mm | 154.08*85.92mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 5 | 7" | HC070TG35057-C04V01 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 350 | -20~70℃ | -30~80℃ |
| 6 | 7" | HC070TG45057- 22V01 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 450 | -20~70℃ | -30~80℃ |
| 7 | 7" | HC070TG45057-C41 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 450 | -20~70℃ | -30-80℃ |
| 8 | 7" | HC070TG45057-C93 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 450 | -20~70℃ | -30-80℃ |
| 9 | 7" | HC070TG80057-B21V.1 | TN | 800*480 | 165*100*7.2mm | 154.08*85.92mm | 50pinRGB | 500 | 800 | -20~70℃ | -30-80℃ |
| 10 | 7" | HC070TGA0057-C41 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 1000 | -20~70℃ | -30-80℃ |
| 11 | 7" | HC070TGA0057-D57 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 1000 | -30-85℃ | -30-85℃ |
| 12 | 7" | HC070TGA0057-D57V.1 | TN | 800*480 | 164.9*100*7.6mm | 154.08*85.92mm | 50pinRGB | 500 | 1000 | -30-85℃ | -30-85℃ |
| 13 | 7" | HC070TGA5057-C41 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 1000 | -20~70℃ | -30-80℃ |
| 14 | 7" | HC070TGB0057-C41 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 2000 | -20~70℃ | -30-80℃ |
| 15 | 7" | HC070IK25035-B18V.C | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 40pinLVDS | 800 | 250 | -20~70℃ | -20~70℃ |
| 16 | 7" | HC070IKA0057-F59 | IPS | 1024*600 | 222.77*120.11*7.55mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 17 | 7" | HC070IKA0057-F59V.C | IPS | 1024*600 | 222.77*120.11*7.55mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1000 | --30~85℃ | --30~85℃ |
| 18 | 7" | HC070IKA0057-E13 | IPS | 1024*600 | 164.9*100*5.61mm | 154.21*85.92mm | 50pinRGB | 800 | 1000 | -20~70℃ | -30~80℃ |
| 19 | 7" | HC070IKA5057-D32 | IPS | 1024*600 | 164.9*100*5.4mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1500 | -30~80℃ | -30~80℃ |
| 20 | 7" | HC070IKA0057-F59 | IPS | 1024*600 | 222.77*120.11*7.55mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1000 | ---30~85℃ | --30~85℃ |
| 21 | 7" | HC070TG50052-A65 | TN | 800*480 | 165*104.44*5.2mm | 152.4*91.44mm | 40pinRGB | 400 | 550 | -20~70℃ | -30~80℃ |
| 22 | 7" | HC070TG50052-A65V.1 | TN | 800*480 | 165*104.44*6.6mm | 152.4*91.44mm | 40pinRGB | 400 | 450 | -20~70℃ | -30~80℃ |
| 23 | 7" | HC070IKA0035-D29V.C | IPS | 1024*600 | 165*104.00*6.2mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1000 | -20~70℃ | -30~80℃ |
| 24 | 7" | HC070IKA0057-B26H | IPS | 1024*600 | 164.9*100*5.7mm | 154.21*85.92mm | 50pinRGB | 800 | 1000 | -30~85℃ | -30~85℃ |
| 25 | 7" | HC070IG30055-G6V.C | IPS | 800*480 | 164.9*100*7.46mm | 153.84*85.63mm | 50pinRGB | 1000 | 300 | -20~70℃ | -30~80℃ |
| 26 | 7" | HC070IK45057-B36V.C | IPS | 1024*600 | 164.9*99.6*5.6mm | 154.21*85.92mm | 40pinRGB | 800 | 450 | -20~70℃ | -30~80℃ |
| 27 | 7" | HC070IK25035-B26 | IPS | 1024*600 | 164.86*99.96*3.5mm | 154.21*85.92mm | 50pinRGB | 800 | 330 | -20~60℃ | -30~70℃ |
| 28 | 7" | HC070IGA0072-F21 | IPS | 1200*1920 | 165.1*108.44*7.0mm | 152.4*91.44mm | 40pinRGB | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 29 | 7" | HC070IK40035-B95V03 | IPS | 1024*600 | 164.90*100.00*3.5mm | 154.21*85.92mm | 20pinLVDS | 1000 | 400 | -20~70℃ | -30~80℃ |
| 30 | 7" | HC070IG50052-F19V.C | IPS | 800*480 | 175.00*114.44*8.05mm | 152.40*91.44mm | 40pinLVDS | 1000 | 500 | -30~85℃ | -30~85℃ |
| 31 | 7" | HC070TG50057-F26 | TN | 800*480 | 164.90*100.00*5.61mm | 153.84*85.63mm | 60pinRGB | 500 | 500 | -20~70℃ | -30~80℃ |
| 32 | 7" | HC070TG60035-D36V.C | TN | 800*480 | 178.60*111.64*5.45mm | 154.08*85.92mm | 40pinRGB | 500 | 600 | -20~70℃ | -30~80℃ |
| 33 | 7" | HC070IGA0055-G06 | IPS | 800*480 | 164.9*100*5.5mm | 153.84*85.63mm | 50pinRGB | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 34 | 7" | HC070IZ30024-F83V.C | IPS | 1200*1920 | 98.75*160.85*2.38mm | 94.50*151.20mm | 40pinMIPI | 900 | 300 | -20~70℃ | -30~80℃ |
| 35 | 7" | HC070IK25035-B18 | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 40pinLVDS | 1000 | 250 | -20~70℃ | -20~70℃ |
| 36 | 7" | HC070IK35026-C57 | IPS | 1024*600 | 163.8*97.0*2.6mm | 154.21*85.92mm | 30pinMIPI | 500 | 350 | -20~70℃ | -20~70℃ |
| 37 | 7" | HC070IK35026-C57 V.C | IPS | 1024*600 | 163.8*97.0*2.6mm | 154.21*85.92mm | 30pinMIPI | 500 | 350 | -20~70℃ | -20~70℃ |
| 38 | 7" | HC070IK25035-B26V03 | IPS | 1024*600 | 164.86*99.96*3.5mm | 154.21*85.92mm | 50pinRGB | 800 | 500 | -20~60℃ | -30~70℃ |
| 39 | 7" | HC070IK35057-B26 | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 50pinRGB | 1000 | 250 | -20~70℃ | -30~80℃ |
| 40 | 7" | HC070IK40035-B95V02 | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 20pinLVDS | 1000 | 400 | -20~70℃ | -20~70℃ |
| 41 | 7" | HC070IK60035-B18 | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 40pinLVDS | 800 | 600 | -20~70℃ | -20~70℃ |
| 42 | 7" | HC070IK80035-B36 | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 40pinLVDS | 1000 | 400 | -20~70℃ | -30~80℃ |
| 43 | 7" | HC070IK65057-B36 | IPS | 1024*600 | 164.9*100*5.7mm | 154.21*85.92mm | 40pinLVDS | 800 | 650 | -20~70℃ | -30~80℃ |
| 44 | 7" | HC070IK65057-E13 | IPS | 1024*600 | 164.9*100*5.61mm | 154.21*85.92mm | 50pinRGB | 800 | 650 | -20~70℃ | -30~80℃ |
| 45 | 7" | HC070IKA0057-B26 | IPS | 1024*600 | 164.9*100*5.7mm | 154.21*85.92mm | 50pinRGB | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 46 | 7" | HC070IKA0057-D32 | IPS | 1024*600 | 164.9*100*5.4mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1000 | -30~85℃ | --30~85℃ |
| 47 | 7" | HC070IY30025-C18 | IPS | 800*1280 | 103.46*162.03*2.55mm | 94.2*150.72mm | 40pinMIPI | 800 | 300 | -20~70℃ | -30~80℃ |
| 48 | 7" | HC070IK25035-B18 V.C | IPS | 1024*600 | 164.9*100*6.2mm | 154.21*85.92mm | 40pinLVDS | 800 | 250 | -20~70℃ | -30~80℃ |
| 49 | 7" | HC070IZ30024-F83 | IPS | 1200*1920 | 98.75*160.85*2.38mm | 94.5*151.20mm | 40pinMIPI | 900 | 300 | -20~70℃ | -30~80℃ |
| 50 | 7" | HC070TG25035-A94 | TN | 800*480 | 164.9*100*3.5mm | 154.08*85.92mm | 50pinRGB | 800 | 250 | -20~70℃ | -30~80℃ |
| 51 | 7" | HC070TG25035-B78 | TN | 800*480 | 164.9*100*3.5mm | 154.08*85.92mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 52 | 7" | HC070TG25035-D68 | TN | 800*480 | 164.9*100*3.5mm | 154.08*85.92mm | 50pinRGB | 800 | 250 | -20~70℃ | -30~80℃ |
| 53 | 7" | HC070TG35052-A63 | TN | 800*480 | 165*104.44*5.2mm | 152.4*91.44mm | 40pinRGB | 400 | 350 | -20~70℃ | -30~80℃ |
| 54 | 7" | HC070TG35052-A65 | TN | 800*480 | 165*104.44*5.2mm | 152.4*91.44mm | 40pinRGB | 1000 | 500 | -20~70℃ | -30~80℃ |
| 55 | 7" | HC070TG25051-05 | TN | 800*480 | 164.9*100*5.1mm | 154.08*85.92mm | 50pinRGB | 800 | 250 | -20~70℃ | -30~80℃ |
| 56 | 7" | HC070TG45057-21 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 450 | -20~70℃ | -30~80℃ |
| 57 | 7" | HC070TG45057-21V.1 | TN | 800*480 | 164.90*100.00*7.10mm | 154.08*85.92mm | 50pinRGB | 500 | 350 | -20~70℃ | -30~80℃ |
| 58 | 7" | HC070TG45057-21V.CV01 | TN | 800*480 | 177.70*112.70*7.35mm | 154.08*85.92mm | 50pinRGB | 500 | 350 | -20~70℃ | -30~80℃ |
| 59 | 7" | HC070TG45057-22 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 450 | -20~70℃ | -30~80℃ |
| 60 | 7" | HC070TG70057-D47 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 40pinRGB | 800 | 700 | -20~70℃ | -20~70℃ |
| 61 | 7" | HC070TGA0057-D05V02 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 40pinRGB | 800 | 1000 | -20~70℃ | -30~80℃ |
| 62 | 7" | HC070TGA0057-D05V01H | TN | 800*480 | 165*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 1000 | -30~85℃ | -30~85℃ |
