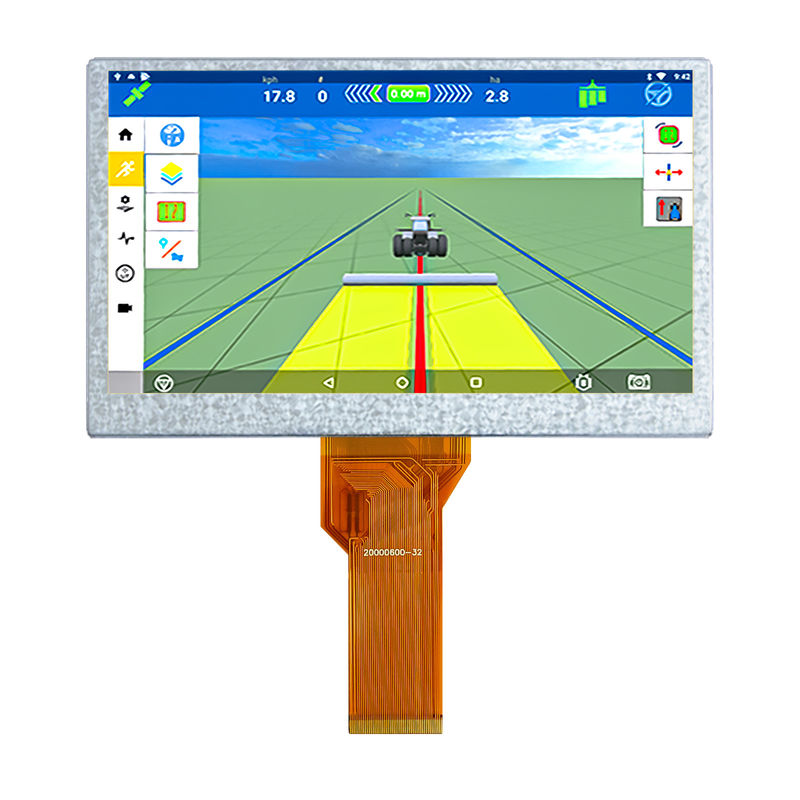

Normally White 7 Inch TFT Screen High Brightness TFT Display 800×480

Name: Normally White 7 Inch TFT Screen High Brightness TFT Display 800×480
Brand: Heng Cheng Electronics Technology (HK) Co.,Ltd
SKU: HC070TGB0057-C41
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HETECH

Certification: ISO9001,ISO14001,ISO13485,IATF16949

Model Number: HC070TGB0057-C41

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Delivery Time: 4-6weeks

Payment Terms: T/T

Supply Ability: 50K/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                7 Inch TFT Screen High Brightness, High Brightness TFT Display 800×480, Normally White 7 Inch TFT Screen


P/N:	HC070TGB0057-C41	Size:	7"(TN)
Display Type:	(TN)	Resolution:	800*480
Outline Dimension:	164.9(W )100(H)5.7(T)mm	Active Area:	154.08(W)*85.92(H)mm
Brightness:	2000cd/m2	Interface:	50pinRGB
Viewing Angle:	70/70/50/70	Operation Temp.:	-20~70
Storage Temp.:	-30~80	Contrast Ratio:	500
Aspect Rati16:9o:	16:9	Application:	Portable DVD Player, Bus Driver Assistant Monitor And Semi-auto Biochemistry Clinical Chemistry Analyzer

P/N:	HC070TGB0057-C41
Size:	7"(TN)
Display Type:	(TN)
Resolution:	800*480
Outline Dimension:	164.9(W )100(H)5.7(T)mm
Active Area:	154.08(W)*85.92(H)mm
Brightness:	2000cd/m2
Interface:	50pinRGB
Viewing Angle:	70/70/50/70
Operation Temp.:	-20~70
Storage Temp.:	-30~80
Contrast Ratio:	500
Aspect Rati16:9o:	16:9
Application:	Portable DVD Player, Bus Driver Assistant Monitor And Semi-auto Biochemistry Clinical Chemistry Analyzer

Normally White 7 Inch TFT Screen High Brightness TFT Display 800×480

7 inch TFT LCD display with High Brightness and 800*480 Resolution

Product Description:

HC070TGB0057-C41 combines advanced TFT technology and designed for various equipment requiring cutting-edge display technology. This 7-inch display adopts TN display mode and has a resolution of 800*480 pixels, which make the screen response quickly while showing a sharp image. With a high brightness of 2000nits and a contrast ratio of 500:1, this display is readable under sunlight and is suitable for many outdoor devices. Embedded in a frame of 164.90mm*100.00mm*5.70mm and equipped with an interface of 50pin RGB, this display is tailored for portable DVD player, bus driver assistant monitor and semi-auto biochemistry clinical chemistry analyzer. Additionally, the HC070TGB0057-C41 is able to adapt well to various extreme weather conditions, it can work normally at temperatures from -20°C to 70°C.

General Specification:

P/N	HC070TGB0057-C41
Size	7inch
Display type	Normally White, Transmissive
Resolution	800*480
Outline Dimension(mm)	164.9(W )100(H)5.7(T)mm
Active Area(mm)	154.08(W)*85.92(H)mm
Brightness(cd/m²)	2000
Viewing Angle(L/R/T/B)	70/70/50/70
Interface	50pinRGB
Operation Temperature	-20~70
Storge Temperature	-30~80
Aspect ratio	16:9
Contrast ratio	500
Application	Portable DVD player, bus driver assistant monitor and semi-auto biochemistry clinical chemistry analyzer

Pin assignment:

Normally White 7 Inch TFT Screen High Brightness TFT Display 800×480 0

7-inch lcd display series:

7-inch LCD Display Sizes
Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc.
No.	Size	Part No.	LCD type	Resolution	Outline dimension	Active area	Interface	Contrast ratio	Brightness	Operation temperature	Storage temperature
1	7"	HC070TG25035-B78	TN	800*480	164.91003.5mm	154.08*85.92mm	50pinRGB	500	250	-20~70℃	-30~80℃
2	7"	HC070TG25035-B78V.C	TN	800*480	164.91005.9mm	154.08*85.92mm	50pinRGB	500	250	-20~70℃	-30~80℃
3	7"	HC070TG25035-A93	TN	800*480	164.91003.45mm	154.08*85.92mm	50pinRGB	500	250	-20~70℃	-30~80℃
4	7"	HC070TG25051- 81V01	TN	800*480	164.91005.1mm	154.08*85.92mm	50pinRGB	500	250	-20~70℃	-30~80℃
5	7"	HC070TG35057-C04V01	TN	800*480	164.91005.7mm	154.08*85.92mm	50pinRGB	500	350	-20~70℃	-30~80℃
6	7"	HC070TG45057- 22V01	TN	800*480	164.91005.7mm	154.08*85.92mm	50pinRGB	500	450	-20~70℃	-30~80℃
7	7"	HC070TG45057-C41	TN	800*480	164.91005.7mm	154.08*85.92mm	50pinRGB	500	450	-20~70℃	-30-80℃
8	7"	HC070TG45057-C93	TN	800*480	164.91005.7mm	154.08*85.92mm	50pinRGB	500	450	-20~70℃	-30-80℃
9	7"	HC070TG80057-B21V.1	TN	800*480	1651007.2mm	154.08*85.92mm	50pinRGB	500	800	-20~70℃	-30-80℃
10	7"	HC070TGA0057-C41	TN	800*480	164.91005.7mm	154.08*85.92mm	50pinRGB	500	1000	-20~70℃	-30-80℃
11	7"	HC070TGA0057-D57	TN	800*480	164.91005.7mm	154.08*85.92mm	50pinRGB	500	1000	-30-85℃	-30-85℃
12	7"	HC070TGA0057-D57V.1	TN	800*480	164.91007.6mm	154.08*85.92mm	50pinRGB	500	1000	-30-85℃	-30-85℃
13	7"	HC070TGA5057-C41	TN	800*480	164.91005.7mm	154.08*85.92mm	50pinRGB	500	1000	-20~70℃	-30-80℃
14	7"	HC070TGB0057-C41	TN	800*480	164.91005.7mm	154.08*85.92mm	50pinRGB	500	2000	-20~70℃	-30-80℃
15	7"	HC070IK25035-B18V.C	IPS	1024*600	164.91003.5mm	154.21*85.92mm	40pinLVDS	800	250	-20~70℃	-20~70℃
16	7"	HC070IKA0057-F59	IPS	1024*600	222.77120.117.55mm	154.21*85.92mm	40pinLVDS	1000	1000	-30~85℃	-30~85℃
17	7"	HC070IKA0057-F59V.C	IPS	1024*600	222.77120.117.55mm	154.21*85.92mm	40pinLVDS	1000	1000	--30~85℃	--30~85℃
18	7"	HC070IKA0057-E13	IPS	1024*600	164.91005.61mm	154.21*85.92mm	50pinRGB	800	1000	-20~70℃	-30~80℃
19	7"	HC070IKA5057-D32	IPS	1024*600	164.91005.4mm	154.21*85.92mm	40pinLVDS	1000	1500	-30~80℃	-30~80℃
20	7"	HC070IKA0057-F59	IPS	1024*600	222.77120.117.55mm	154.21*85.92mm	40pinLVDS	1000	1000	---30~85℃	--30~85℃
21	7"	HC070TG50052-A65	TN	800*480	165104.445.2mm	152.4*91.44mm	40pinRGB	400	550	-20~70℃	-30~80℃
22	7"	HC070TG50052-A65V.1	TN	800*480	165104.446.6mm	152.4*91.44mm	40pinRGB	400	450	-20~70℃	-30~80℃
23	7"	HC070IKA0035-D29V.C	IPS	1024*600	165104.006.2mm	154.21*85.92mm	40pinLVDS	1000	1000	-20~70℃	-30~80℃
24	7"	HC070IKA0057-B26H	IPS	1024*600	164.91005.7mm	154.21*85.92mm	50pinRGB	800	1000	-30~85℃	-30~85℃
25	7"	HC070IG30055-G6V.C	IPS	800*480	164.91007.46mm	153.84*85.63mm	50pinRGB	1000	300	-20~70℃	-30~80℃
26	7"	HC070IK45057-B36V.C	IPS	1024*600	164.999.65.6mm	154.21*85.92mm	40pinRGB	800	450	-20~70℃	-30~80℃
27	7"	HC070IK25035-B26	IPS	1024*600	164.8699.963.5mm	154.21*85.92mm	50pinRGB	800	330	-20~60℃	-30~70℃
28	7"	HC070IGA0072-F21	IPS	1200*1920	165.1108.447.0mm	152.4*91.44mm	40pinRGB	1000	1000	-30~85℃	-30~85℃
29	7"	HC070IK40035-B95V03	IPS	1024*600	164.90100.003.5mm	154.21*85.92mm	20pinLVDS	1000	400	-20~70℃	-30~80℃
30	7"	HC070IG50052-F19V.C	IPS	800*480	175.00114.448.05mm	152.40*91.44mm	40pinLVDS	1000	500	-30~85℃	-30~85℃
31	7"	HC070TG50057-F26	TN	800*480	164.90100.005.61mm	153.84*85.63mm	60pinRGB	500	500	-20~70℃	-30~80℃
32	7"	HC070TG60035-D36V.C	TN	800*480	178.60111.645.45mm	154.08*85.92mm	40pinRGB	500	600	-20~70℃	-30~80℃
33	7"	HC070IGA0055-G06	IPS	800*480	164.91005.5mm	153.84*85.63mm	50pinRGB	1000	1000	-30~85℃	-30~85℃
34	7"	HC070IZ30024-F83V.C	IPS	1200*1920	98.75160.852.38mm	94.50*151.20mm	40pinMIPI	900	300	-20~70℃	-30~80℃
35	7"	HC070IK25035-B18	IPS	1024*600	164.91003.5mm	154.21*85.92mm	40pinLVDS	1000	250	-20~70℃	-20~70℃
36	7"	HC070IK35026-C57	IPS	1024*600	163.897.02.6mm	154.21*85.92mm	30pinMIPI	500	350	-20~70℃	-20~70℃
37	7"	HC070IK35026-C57 V.C	IPS	1024*600	163.897.02.6mm	154.21*85.92mm	30pinMIPI	500	350	-20~70℃	-20~70℃
38	7"	HC070IK25035-B26V03	IPS	1024*600	164.8699.963.5mm	154.21*85.92mm	50pinRGB	800	500	-20~60℃	-30~70℃
39	7"	HC070IK35057-B26	IPS	1024*600	164.91003.5mm	154.21*85.92mm	50pinRGB	1000	250	-20~70℃	-30~80℃
40	7"	HC070IK40035-B95V02	IPS	1024*600	164.91003.5mm	154.21*85.92mm	20pinLVDS	1000	400	-20~70℃	-20~70℃
41	7"	HC070IK60035-B18	IPS	1024*600	164.91003.5mm	154.21*85.92mm	40pinLVDS	800	600	-20~70℃	-20~70℃
42	7"	HC070IK80035-B36	IPS	1024*600	164.91003.5mm	154.21*85.92mm	40pinLVDS	1000	400	-20~70℃	-30~80℃
43	7"	HC070IK65057-B36	IPS	1024*600	164.91005.7mm	154.21*85.92mm	40pinLVDS	800	650	-20~70℃	-30~80℃
44	7"	HC070IK65057-E13	IPS	1024*600	164.91005.61mm	154.21*85.92mm	50pinRGB	800	650	-20~70℃	-30~80℃
45	7"	HC070IKA0057-B26	IPS	1024*600	164.91005.7mm	154.21*85.92mm	50pinRGB	1000	1000	-30~85℃	-30~85℃
46	7"	HC070IKA0057-D32	IPS	1024*600	164.91005.4mm	154.21*85.92mm	40pinLVDS	1000	1000	-30~85℃	--30~85℃
47	7"	HC070IY30025-C18	IPS	800*1280	103.46162.032.55mm	94.2*150.72mm	40pinMIPI	800	300	-20~70℃	-30~80℃
48	7"	HC070IK25035-B18 V.C	IPS	1024*600	164.91006.2mm	154.21*85.92mm	40pinLVDS	800	250	-20~70℃	-30~80℃
49	7"	HC070IZ30024-F83	IPS	1200*1920	98.75160.852.38mm	94.5*151.20mm	40pinMIPI	900	300	-20~70℃	-30~80℃
50	7"	HC070TG25035-A94	TN	800*480	164.91003.5mm	154.08*85.92mm	50pinRGB	800	250	-20~70℃	-30~80℃
51	7"	HC070TG25035-B78	TN	800*480	164.91003.5mm	154.08*85.92mm	50pinRGB	500	250	-20~70℃	-30~80℃
52	7"	HC070TG25035-D68	TN	800*480	164.91003.5mm	154.08*85.92mm	50pinRGB	800	250	-20~70℃	-30~80℃
53	7"	HC070TG35052-A63	TN	800*480	165104.445.2mm	152.4*91.44mm	40pinRGB	400	350	-20~70℃	-30~80℃
54	7"	HC070TG35052-A65	TN	800*480	165104.445.2mm	152.4*91.44mm	40pinRGB	1000	500	-20~70℃	-30~80℃
55	7"	HC070TG25051-05	TN	800*480	164.91005.1mm	154.08*85.92mm	50pinRGB	800	250	-20~70℃	-30~80℃
56	7"	HC070TG45057-21	TN	800*480	164.91005.7mm	154.08*85.92mm	50pinRGB	500	450	-20~70℃	-30~80℃
57	7"	HC070TG45057-21V.1	TN	800*480	164.90100.007.10mm	154.08*85.92mm	50pinRGB	500	350	-20~70℃	-30~80℃
58	7"	HC070TG45057-21V.CV01	TN	800*480	177.70112.707.35mm	154.08*85.92mm	50pinRGB	500	350	-20~70℃	-30~80℃
59	7"	HC070TG45057-22	TN	800*480	164.91005.7mm	154.08*85.92mm	50pinRGB	500	450	-20~70℃	-30~80℃
60	7"	HC070TG70057-D47	TN	800*480	164.91005.7mm	154.08*85.92mm	40pinRGB	800	700	-20~70℃	-20~70℃
61	7"	HC070TGA0057-D05V02	TN	800*480	164.91005.7mm	154.08*85.92mm	40pinRGB	800	1000	-20~70℃	-30~80℃
62	7"	HC070TGA0057-D05V01H	TN	800*480	1651005.7mm	154.08*85.92mm	50pinRGB	500	1000	-30~85℃	-30~85℃

Customization:

FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
