Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC070IKA0057-B26H
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC070IKA0057-B26H |
Size: |
7"(IPS) |
Display Type: |
(IPS) |
Resolution: |
1024*600 |
Outline Dimension: |
164.9(W )*100(H)*5.7(T)mm |
Active Area: |
154.21(W)*85.92(H)mm |
Brightness: |
1000cd/m2 |
Interface: |
50pinRGB |
Viewing Angle: |
85/85/85/85 |
Operation Temp.: |
-30~85 |
Storage Temp.: |
-30~85 |
Contrast Ratio: |
800 |
Aspect Rati16:9o: |
16:9 |
Application: |
Electric Vehicles And Motorcycle Dashboard |
P/N: |
HC070IKA0057-B26H |
Size: |
7"(IPS) |
Display Type: |
(IPS) |
Resolution: |
1024*600 |
Outline Dimension: |
164.9(W )*100(H)*5.7(T)mm |
Active Area: |
154.21(W)*85.92(H)mm |
Brightness: |
1000cd/m2 |
Interface: |
50pinRGB |
Viewing Angle: |
85/85/85/85 |
Operation Temp.: |
-30~85 |
Storage Temp.: |
-30~85 |
Contrast Ratio: |
800 |
Aspect Rati16:9o: |
16:9 |
Application: |
Electric Vehicles And Motorcycle Dashboard |

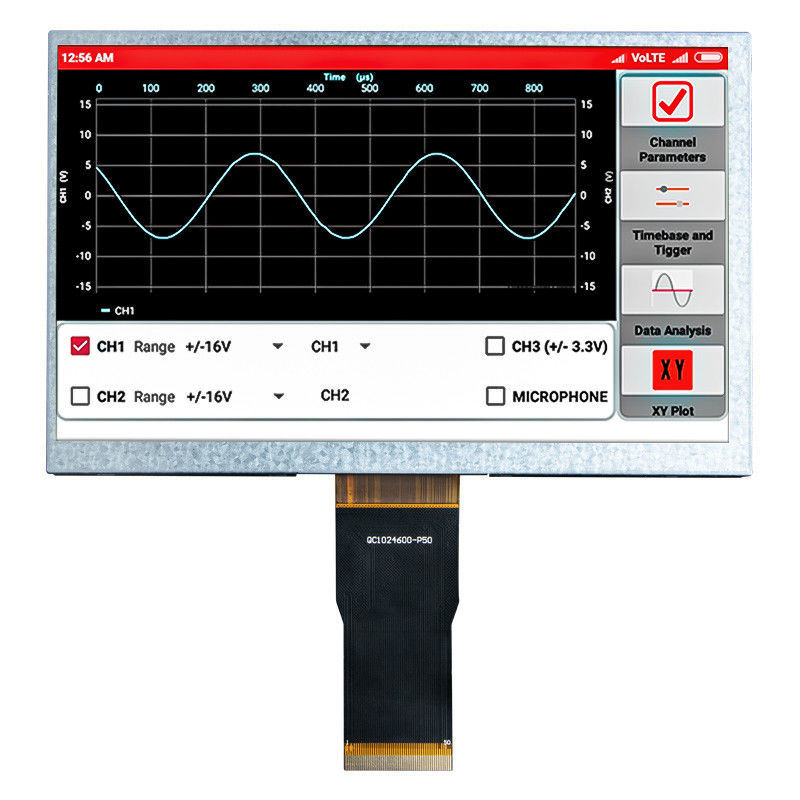

7 Inch IPS LCD TFT with 16:9 Aspect Ratio and 1024x600 Resolution
Product Description:
HC070IKA0057-B26H, as a wide-temperature display, can be used at temperatures from -30℃ to 85℃, which makes it quite suitable for electric vehicles and motorcycle dashboard. As a very popular 7-inch display in the market, this display has an outline dimension of 164.90mm*100.00mm*5.70mm and an active area of 154.21mm*85.92mm that contains 1024*600 pixels. This display adopts IPS technology and possesses a high brightness of 1000nits and a contrast ratio of 800:1 which allow users to read under a variety of lighting conditions. In addition, the HC070IKA0057-B26H is equipped with an interface of 50pin RGB, which supports stable data transmission and high-quality image display, and is compatible with a diversity of devices.
General Specification:
| P/N | HC070IKA0057-B26H |
| Size | 7inch |
| Display type |
Normally Black
|
| Resolution | 1024*600 |
| Outline Dimension(mm) | 164.9(W )*100(H)*5.7(T)mm |
| Active Area(mm) | 154.21(W)*85.92(H)mm |
| Brightness(cd/m²) | 1000 |
| Viewing Angle(L/R/T/B) | 85/85/85/85 |
| Interface | 50pinRGB |
| Operation Temperature | -30~85 |
| Storge Temperature | -30~85 |
| Aspect ratio | 16:9 |
| Contrast ratio | 800 |
| Application | Electric vehicles and motorcycle dashboard |
Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT |
|
Voltage for LED backlight
|
Vf | - | 9.0 | - | V |
|
Current for LED backlight
|
If | - | 300 | 350 | mA |
|
LED life time
|
- | 20000 | - | - | hrs |
Product drawings:
7-inch lcd display series:
|
7-inch LCD Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 7" | HC070TG25035-B78 | TN | 800*480 | 164.9*100*3.5mm | 154.08*85.92mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 2 | 7" | HC070TG25035-B78V.C | TN | 800*480 | 164.9*100*5.9mm | 154.08*85.92mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 3 | 7" | HC070TG25035-A93 | TN | 800*480 | 164.9*100*3.45mm | 154.08*85.92mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 4 | 7" | HC070TG25051- 81V01 | TN | 800*480 | 164.9*100*5.1mm | 154.08*85.92mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 5 | 7" | HC070TG35057-C04V01 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 350 | -20~70℃ | -30~80℃ |
| 6 | 7" | HC070TG45057- 22V01 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 450 | -20~70℃ | -30~80℃ |
| 7 | 7" | HC070TG45057-C41 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 450 | -20~70℃ | -30-80℃ |
| 8 | 7" | HC070TG45057-C93 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 450 | -20~70℃ | -30-80℃ |
| 9 | 7" | HC070TG80057-B21V.1 | TN | 800*480 | 165*100*7.2mm | 154.08*85.92mm | 50pinRGB | 500 | 800 | -20~70℃ | -30-80℃ |
| 10 | 7" | HC070TGA0057-C41 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 1000 | -20~70℃ | -30-80℃ |
| 11 | 7" | HC070TGA0057-D57 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 1000 | -30-85℃ | -30-85℃ |
| 12 | 7" | HC070TGA0057-D57V.1 | TN | 800*480 | 164.9*100*7.6mm | 154.08*85.92mm | 50pinRGB | 500 | 1000 | -30-85℃ | -30-85℃ |
| 13 | 7" | HC070TGA5057-C41 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 1000 | -20~70℃ | -30-80℃ |
| 14 | 7" | HC070TGB0057-C41 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 2000 | -20~70℃ | -30-80℃ |
| 15 | 7" | HC070IK25035-B18V.C | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 40pinLVDS | 800 | 250 | -20~70℃ | -20~70℃ |
| 16 | 7" | HC070IKA0057-F59 | IPS | 1024*600 | 222.77*120.11*7.55mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 17 | 7" | HC070IKA0057-F59V.C | IPS | 1024*600 | 222.77*120.11*7.55mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1000 | --30~85℃ | --30~85℃ |
| 18 | 7" | HC070IKA0057-E13 | IPS | 1024*600 | 164.9*100*5.61mm | 154.21*85.92mm | 50pinRGB | 800 | 1000 | -20~70℃ | -30~80℃ |
| 19 | 7" | HC070IKA5057-D32 | IPS | 1024*600 | 164.9*100*5.4mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1500 | -30~80℃ | -30~80℃ |
| 20 | 7" | HC070IKA0057-F59 | IPS | 1024*600 | 222.77*120.11*7.55mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1000 | ---30~85℃ | --30~85℃ |
| 21 | 7" | HC070TG50052-A65 | TN | 800*480 | 165*104.44*5.2mm | 152.4*91.44mm | 40pinRGB | 400 | 550 | -20~70℃ | -30~80℃ |
| 22 | 7" | HC070TG50052-A65V.1 | TN | 800*480 | 165*104.44*6.6mm | 152.4*91.44mm | 40pinRGB | 400 | 450 | -20~70℃ | -30~80℃ |
| 23 | 7" | HC070IKA0035-D29V.C | IPS | 1024*600 | 165*104.00*6.2mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1000 | -20~70℃ | -30~80℃ |
| 24 | 7" | HC070IKA0057-B26H | IPS | 1024*600 | 164.9*100*5.7mm | 154.21*85.92mm | 50pinRGB | 800 | 1000 | -30~85℃ | -30~85℃ |
| 25 | 7" | HC070IG30055-G6V.C | IPS | 800*480 | 164.9*100*7.46mm | 153.84*85.63mm | 50pinRGB | 1000 | 300 | -20~70℃ | -30~80℃ |
| 26 | 7" | HC070IK45057-B36V.C | IPS | 1024*600 | 164.9*99.6*5.6mm | 154.21*85.92mm | 40pinRGB | 800 | 450 | -20~70℃ | -30~80℃ |
| 27 | 7" | HC070IK25035-B26 | IPS | 1024*600 | 164.86*99.96*3.5mm | 154.21*85.92mm | 50pinRGB | 800 | 330 | -20~60℃ | -30~70℃ |
| 28 | 7" | HC070IGA0072-F21 | IPS | 1200*1920 | 165.1*108.44*7.0mm | 152.4*91.44mm | 40pinRGB | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 29 | 7" | HC070IK40035-B95V03 | IPS | 1024*600 | 164.90*100.00*3.5mm | 154.21*85.92mm | 20pinLVDS | 1000 | 400 | -20~70℃ | -30~80℃ |
| 30 | 7" | HC070IG50052-F19V.C | IPS | 800*480 | 175.00*114.44*8.05mm | 152.40*91.44mm | 40pinLVDS | 1000 | 500 | -30~85℃ | -30~85℃ |
| 31 | 7" | HC070TG50057-F26 | TN | 800*480 | 164.90*100.00*5.61mm | 153.84*85.63mm | 60pinRGB | 500 | 500 | -20~70℃ | -30~80℃ |
| 32 | 7" | HC070TG60035-D36V.C | TN | 800*480 | 178.60*111.64*5.45mm | 154.08*85.92mm | 40pinRGB | 500 | 600 | -20~70℃ | -30~80℃ |
| 33 | 7" | HC070IGA0055-G06 | IPS | 800*480 | 164.9*100*5.5mm | 153.84*85.63mm | 50pinRGB | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 34 | 7" | HC070IZ30024-F83V.C | IPS | 1200*1920 | 98.75*160.85*2.38mm | 94.50*151.20mm | 40pinMIPI | 900 | 300 | -20~70℃ | -30~80℃ |
| 35 | 7" | HC070IK25035-B18 | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 40pinLVDS | 1000 | 250 | -20~70℃ | -20~70℃ |
| 36 | 7" | HC070IK35026-C57 | IPS | 1024*600 | 163.8*97.0*2.6mm | 154.21*85.92mm | 30pinMIPI | 500 | 350 | -20~70℃ | -20~70℃ |
| 37 | 7" | HC070IK35026-C57 V.C | IPS | 1024*600 | 163.8*97.0*2.6mm | 154.21*85.92mm | 30pinMIPI | 500 | 350 | -20~70℃ | -20~70℃ |
| 38 | 7" | HC070IK25035-B26V03 | IPS | 1024*600 | 164.86*99.96*3.5mm | 154.21*85.92mm | 50pinRGB | 800 | 500 | -20~60℃ | -30~70℃ |
| 39 | 7" | HC070IK35057-B26 | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 50pinRGB | 1000 | 250 | -20~70℃ | -30~80℃ |
| 40 | 7" | HC070IK40035-B95V02 | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 20pinLVDS | 1000 | 400 | -20~70℃ | -20~70℃ |
| 41 | 7" | HC070IK60035-B18 | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 40pinLVDS | 800 | 600 | -20~70℃ | -20~70℃ |
| 42 | 7" | HC070IK80035-B36 | IPS | 1024*600 | 164.9*100*3.5mm | 154.21*85.92mm | 40pinLVDS | 1000 | 400 | -20~70℃ | -30~80℃ |
| 43 | 7" | HC070IK65057-B36 | IPS | 1024*600 | 164.9*100*5.7mm | 154.21*85.92mm | 40pinLVDS | 800 | 650 | -20~70℃ | -30~80℃ |
| 44 | 7" | HC070IK65057-E13 | IPS | 1024*600 | 164.9*100*5.61mm | 154.21*85.92mm | 50pinRGB | 800 | 650 | -20~70℃ | -30~80℃ |
| 45 | 7" | HC070IKA0057-B26 | IPS | 1024*600 | 164.9*100*5.7mm | 154.21*85.92mm | 50pinRGB | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 46 | 7" | HC070IKA0057-D32 | IPS | 1024*600 | 164.9*100*5.4mm | 154.21*85.92mm | 40pinLVDS | 1000 | 1000 | -30~85℃ | --30~85℃ |
| 47 | 7" | HC070IY30025-C18 | IPS | 800*1280 | 103.46*162.03*2.55mm | 94.2*150.72mm | 40pinMIPI | 800 | 300 | -20~70℃ | -30~80℃ |
| 48 | 7" | HC070IK25035-B18 V.C | IPS | 1024*600 | 164.9*100*6.2mm | 154.21*85.92mm | 40pinLVDS | 800 | 250 | -20~70℃ | -30~80℃ |
| 49 | 7" | HC070IZ30024-F83 | IPS | 1200*1920 | 98.75*160.85*2.38mm | 94.5*151.20mm | 40pinMIPI | 900 | 300 | -20~70℃ | -30~80℃ |
| 50 | 7" | HC070TG25035-A94 | TN | 800*480 | 164.9*100*3.5mm | 154.08*85.92mm | 50pinRGB | 800 | 250 | -20~70℃ | -30~80℃ |
| 51 | 7" | HC070TG25035-B78 | TN | 800*480 | 164.9*100*3.5mm | 154.08*85.92mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 52 | 7" | HC070TG25035-D68 | TN | 800*480 | 164.9*100*3.5mm | 154.08*85.92mm | 50pinRGB | 800 | 250 | -20~70℃ | -30~80℃ |
| 53 | 7" | HC070TG35052-A63 | TN | 800*480 | 165*104.44*5.2mm | 152.4*91.44mm | 40pinRGB | 400 | 350 | -20~70℃ | -30~80℃ |
| 54 | 7" | HC070TG35052-A65 | TN | 800*480 | 165*104.44*5.2mm | 152.4*91.44mm | 40pinRGB | 1000 | 500 | -20~70℃ | -30~80℃ |
| 55 | 7" | HC070TG25051-05 | TN | 800*480 | 164.9*100*5.1mm | 154.08*85.92mm | 50pinRGB | 800 | 250 | -20~70℃ | -30~80℃ |
| 56 | 7" | HC070TG45057-21 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 450 | -20~70℃ | -30~80℃ |
| 57 | 7" | HC070TG45057-21V.1 | TN | 800*480 | 164.90*100.00*7.10mm | 154.08*85.92mm | 50pinRGB | 500 | 350 | -20~70℃ | -30~80℃ |
| 58 | 7" | HC070TG45057-21V.CV01 | TN | 800*480 | 177.70*112.70*7.35mm | 154.08*85.92mm | 50pinRGB | 500 | 350 | -20~70℃ | -30~80℃ |
| 59 | 7" | HC070TG45057-22 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 450 | -20~70℃ | -30~80℃ |
| 60 | 7" | HC070TG70057-D47 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 40pinRGB | 800 | 700 | -20~70℃ | -20~70℃ |
| 61 | 7" | HC070TGA0057-D05V02 | TN | 800*480 | 164.9*100*5.7mm | 154.08*85.92mm | 40pinRGB | 800 | 1000 | -20~70℃ | -30~80℃ |
| 62 | 7" | HC070TGA0057-D05V01H | TN | 800*480 | 165*100*5.7mm | 154.08*85.92mm | 50pinRGB | 500 | 1000 | -30~85℃ | -30~85℃ |
