Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC080TG36078-52V.1
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC080TG36078-52V.1 |
Size: |
8"(TN) |
Display Type: |
(TN) |
Resolution: |
800*480 |
Outline Dimension: |
192.8(W )*116.9(H)*6.4(T)mm |
Active Area: |
176.64(W)*99.36(H)mm |
Brightness: |
360cd/m2 |
Interface: |
50pinRGB |
Viewing Angle: |
50/70/70/70 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
500 |
Aspect Rati16:9o: |
16:9 |
Application: |
UV-Vis Spectrophotometer |
P/N: |
HC080TG36078-52V.1 |
Size: |
8"(TN) |
Display Type: |
(TN) |
Resolution: |
800*480 |
Outline Dimension: |
192.8(W )*116.9(H)*6.4(T)mm |
Active Area: |
176.64(W)*99.36(H)mm |
Brightness: |
360cd/m2 |
Interface: |
50pinRGB |
Viewing Angle: |
50/70/70/70 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
500 |
Aspect Rati16:9o: |
16:9 |
Application: |
UV-Vis Spectrophotometer |

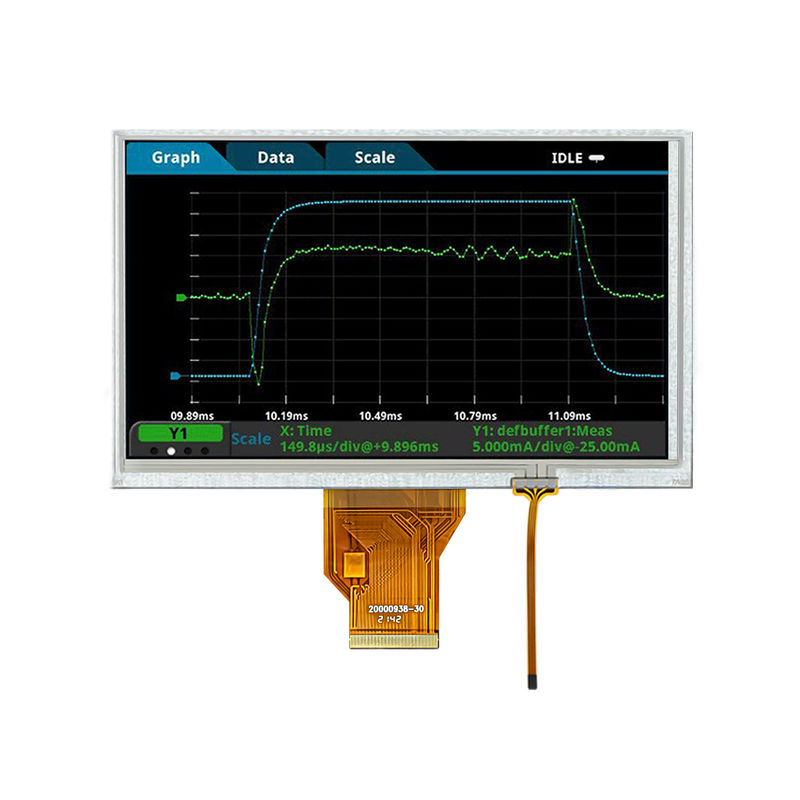

8 Inch TFT touch screen with 50pin RGB Interface and 360nits Brightness
Product Description:
HC080TG36078-52V.1 is an 8-inch LCD with RTP, which is suitable for UV-Vis spectrophotometer. This display features a high brightness of 360nits and a contrast ratio of 500:1 creating a comfortable visual experience for users. With 800*480 pixels resolution, the HC080TG36078-52V.1 encased within a compact frame of 192.80mm*116.90mm*7.80mm provides a sharp image and easy-to-read text. This LCD comes with a TN panel, providing quick response rate. With the operation temperature of -20℃ to 70℃, this display can operate consistently and reliably in extreme temperature conditions. In addition, the 50pin RGB interface can accurately restore the original image color while ensuring the clarity. In a word, the HC080TG36078-52V.1 exemplifies the potent combination of practical design and innovation, making it the best choice for superior visual interaction.
General Specification:
| P/N | HC080TG36078-52V.1 |
| Size | 8inch |
| Display type |
Normally White
|
| Resolution | 800*480 |
| Outline Dimension(mm) | 192.8(W )*116.9(H)*6.4(T)mm |
| Active Area(mm) | 176.64(W)*99.36(H)mm |
| Brightness(cd/m²) | 360 |
| Viewing Angle(L/R/T/B) | 50/70/70/70 |
| Interface | 50pinRGB |
| Operation Temperature | -20~70℃ |
| Storge Temperature | -30~80℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 500 |
| Application | UV-Vis spectrophotometer |
Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT |
|
Voltage for LED backlight
|
Vf | 8.4 | 9.3 | 10.2 | V |
|
Current for LED backlight
|
If | - | 200 | - | mA |
|
LED life time
|
- | 20000 | - | - | hrs |
Product drawings:
8-inch lcd display series:
|
8-inch LCD Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 8" | HC080IM30025-A0 | IPS | 1024*768 | 174*136*2.5mm | 162.05*121.54mm | 40pinRGB | 800 | 300 | -20~50℃ | -20~60℃ |
| 2 | 8" | HC080IM25055-99 | IPS | 1024*768 | 183*141*5.5mm | 162.05*121.54mm | 40pinLVDS | 800 | 250 | -20~70℃ | -30~80℃ |
| 3 | 8" | HC080IM30025-A0V01 | IPS | 1024*768 | 174*136*2.5mm | 162.05*121.54mm | 40pinRGB | 800 | 300 | -20~50℃ | -20~60℃ |
| 4 | 8" | HC080IM30025-A2 | IPS | 1024*768 | 174*136*2.5mm | 162.05*121.54mm | 40pinRGB | 800 | 300 | -20~50℃ | -20~60℃ |
| 5 | 8" | HC080IM30025-A2V01 | IPS | 1024*768 | 174*136*2.5mm | 162.05*121.54mm | 40pinRGB | 800 | 300 | -20~70℃ | -30~80℃ |
| 6 | 8" | HC080IY28026-B30 | IPS | 800*1280 | 114.62*184.124*2.5mm | 107.64*172.2mm | 30pinMIPI | 900 | 280 | -10~50℃ | -20~60℃ |
| 7 | 8" | HC080IY60026-B30V.C | IPS | 800*1280 | 127.64*197.31*4.70mm | 107.64*172.22mm | 30pinMIPI | 900 | 600 | -10~50℃ | -20~60℃ |
| 8 | 8" | HC080IU68064-A13V.G | IPS | 1280*720 | 192.80*116.90*8.40mm | 176.64*99.36mm | 30pinLVDS | 900 | 680 | -30~85℃ | -40-90℃ |
| 9 | 8" | HC080TG40064-52V01 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 400 | -20~70℃ | -30-80℃ |
| 10 | 8" | HC080TG40064-52 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 400 | -20~70℃ | -30-80℃ |
| 11 | 8" | HC080TG36078-52V.1 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 360 | -20~70℃ | -30-80℃ |
| 12 | 8" | HC080TG50064-54V.C | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 450 | -20~70℃ | -30-80℃ |
| 13 | 8" | HC080TG60064-A71 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 600 | -20~70℃ | -30-80℃ |
| 14 | 8" | HC080TG45064-D01 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 60pinRGB | 500 | 450 | -20~70℃ | -30-80℃ |
| 15 | 8" | HC080TGA0064-54 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 800 | 250 | -20~70℃ | -30-80℃ |
| 16 | 8" | HC080TG80064-54 | TN | 1024*600 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 800 | -20~70℃ | -30-80℃ |
| 17 | 8" | HC080TH25055-97V02 | TN | 800*600 | 181*143*5.5mm | 162*121.5mm | 50pinRGB | 1000 | 250 | -20~70℃ | --30-80℃ |
| 18 | 8" | HC080TH25055-97 | TN | 800*600 | 183*141*5.5mm | 162*121.5mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 19 | 8" | HC080TH60055- 97V02 | TN | 800*600 | 183*141*5.5mm | 162*121.5mm | 50pinRGB | 500 | 600 | -20~70℃ | -30~80℃ |
| 20 | 8" | HC080THA0055-97 | TN | 800*600 | 183*141*5.5mm | 162*121.5mm | 50pinRGB | 500 | 1000 | -20~70℃ | -30~80℃ |
| 21 | 8" | HC080TH25055-97V03 | TN | 800*600 | 181*143*5.5mm | 162*121.5mm | 50pinRGB | 1000 | 250 | -20~70℃ | -30~80℃ |
| 22 | 8" | HC080TH30054-C03V01 | TN | 800*600 | 181*143*5.5mm | 162*121.5mm | 50pinRGB | 1000 | 300 | -20~70℃ | -30~80℃ |
| 23 | 8" | HC080IM30025-A2V.C | IPS | 1024*768 | 191.50*148.75*5.82mm | 162.05*121.54mm | 40pinLVDS | 800 | 250 | -20~70℃ | -30~80℃ |
| 24 | 8" | HC080TH50055-97V02 | TN | 800*600 | 181*143*5.5mm | 162*121.5mm | 50pinRGB | 1000 | 500 | -20~70℃ | -30~80℃ |
| 25 | 8" | HC080TH80055-97 | TN | 800*600 | 181*143*5.5mm | 162*121.5mm | 50pinRGB | 1000 | 800 | -20~70℃ | -30~80℃ |
| 26 | 8" | HC080TK40064-B35 | TN | 1024*600 | 192.8*116.9*6.4mm | 176.64*99.36mm | 40pinLVDS | 700 | 400 | -30~80℃ | -30~80℃ |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
