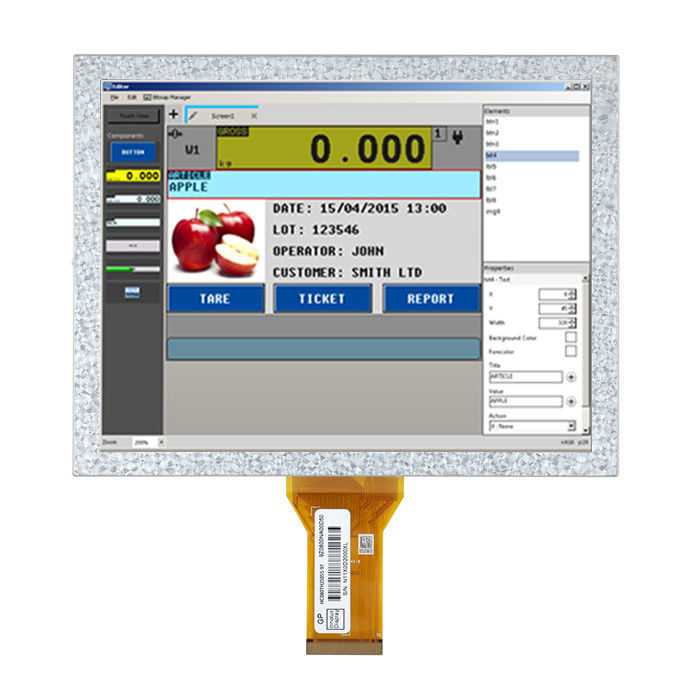

Normally White 8Inch TFT LCD Module Display 800*600 Resolution

Name: Normally White 8Inch TFT LCD Module Display 800*600 Resolution
Brand: Heng Cheng Electronics Technology (HK) Co.,Ltd
SKU: HC080TH30054-C03V01
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HETECH

Certification: ISO9001,ISO14001,ISO13485,IATF16949

Model Number: HC080TH30054-C03V01

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Delivery Time: 4-6weeks

Payment Terms: T/T

Supply Ability: 50K/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                8Inch TFT LCD Module Display, TFT LCD Module Display 800*600, Normally White 8 inch tft display


P/N:	HC080TH30054-C03V01	Size:	8"(TN)
Display Type:	(TN)	Resolution:	800*600
Outline Dimension:	183(W )141(H)5.4(T)mm	Active Area:	162(W)*121.5(H)mm
Brightness:	300cd/m2	Interface:	50pinRGB
Viewing Angle:	70/70/50/70	Operation Temp.:	-20~70℃
Storage Temp.:	-30~80℃	Contrast Ratio:	1000
Aspect Rati16:9o:	4:3	Application:	Food Weighing Scales And Patient Monitors

P/N:	HC080TH30054-C03V01
Size:	8"(TN)
Display Type:	(TN)
Resolution:	800*600
Outline Dimension:	183(W )141(H)5.4(T)mm
Active Area:	162(W)*121.5(H)mm
Brightness:	300cd/m2
Interface:	50pinRGB
Viewing Angle:	70/70/50/70
Operation Temp.:	-20~70℃
Storage Temp.:	-30~80℃
Contrast Ratio:	1000
Aspect Rati16:9o:	4:3
Application:	Food Weighing Scales And Patient Monitors

Normally White 8Inch TFT LCD Module Display 800*600 Resolution

8 Inch TFT LCD module display with Wide Temperature Range and 800*600 Resolution

Product Description:

HC080TH30054-C03V01 is an outstanding 8-inch TN LCD display equipped with a brightness of 300nits and a contrast ratio of 500:1, offering a decent level of visibility for indoor use. With an outline size of 183.00mm*141.00mm*5.4mm, it is a full-color visualization solution designed for multiple applications such as food weighing scales and patient monitors. One of the standout features of this TFT LCD display is its wide temperature, ranging from -20℃ to 70℃, which enables this display to show good performance even in harsh environments. At the heart of this product is the resolution of 800*600 pixels that offers clear and detailed image. In addition, connectivity is straightforward and reliable with the interface of 50pin RGB, which ensures a firm and stable connection between display and applications.

General Specification:

P/N	HC080TH30054-C03V01
Size	8inch
Display type	Normally White
Resolution	800*600
Outline Dimension(mm)	183(W )141(H)5.4(T)mm
Active Area(mm)	162(W)*121.5(H)mm
Brightness(cd/m²)	300
Viewing Angle(L/R/T/B)	70/70/50/70
Interface	50pinRGB
Operation Temperature	-20~70℃
Storge Temperature	-30~80℃
Aspect ratio	4:3
Contrast ratio	1000
Application	Food weighing scales and patient monitors

Pin assignment:

Normally White 8Inch TFT LCD Module Display 800*600 Resolution 0

Backlight Driving Conditions:

Item	Symbol	MIN	TYP	MAX	UNIT
Voltage for LED backlight	Vf	8.4	9.3	10.5	V
Current for LED backlight	If	162	180	198	mA
LED life time	-	20000	-	-	hrs

Product drawings:

8-inch lcd display series:

8-inch LCD Display Sizes
Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc.
No.	Size	Part No.	LCD type	Resolution	Outline dimension	Active area	Interface	Contrast ratio	Brightness	Operation temperature	Storage temperature
1	8"	HC080IM30025-A0	IPS	1024*768	1741362.5mm	162.05*121.54mm	40pinRGB	800	300	-20~50℃	-20~60℃
2	8"	HC080IM25055-99	IPS	1024*768	1831415.5mm	162.05*121.54mm	40pinLVDS	800	250	-20~70℃	-30~80℃
3	8"	HC080IM30025-A0V01	IPS	1024*768	1741362.5mm	162.05*121.54mm	40pinRGB	800	300	-20~50℃	-20~60℃
4	8"	HC080IM30025-A2	IPS	1024*768	1741362.5mm	162.05*121.54mm	40pinRGB	800	300	-20~50℃	-20~60℃
5	8"	HC080IM30025-A2V01	IPS	1024*768	1741362.5mm	162.05*121.54mm	40pinRGB	800	300	-20~70℃	-30~80℃
6	8"	HC080IY28026-B30	IPS	800*1280	114.62184.1242.5mm	107.64*172.2mm	30pinMIPI	900	280	-10~50℃	-20~60℃
7	8"	HC080IY60026-B30V.C	IPS	800*1280	127.64197.314.70mm	107.64*172.22mm	30pinMIPI	900	600	-10~50℃	-20~60℃
8	8"	HC080IU68064-A13V.G	IPS	1280*720	192.80116.908.40mm	176.64*99.36mm	30pinLVDS	900	680	-30~85℃	-40-90℃
9	8"	HC080TG40064-52V01	TN	800*480	192.80116.906.40mm	176.64*99.36mm	50pinRGB	500	400	-20~70℃	-30-80℃
10	8"	HC080TG40064-52	TN	800*480	192.80116.906.40mm	176.64*99.36mm	50pinRGB	500	400	-20~70℃	-30-80℃
11	8"	HC080TG36078-52V.1	TN	800*480	192.80116.906.40mm	176.64*99.36mm	50pinRGB	500	360	-20~70℃	-30-80℃
12	8"	HC080TG50064-54V.C	TN	800*480	192.80116.906.40mm	176.64*99.36mm	50pinRGB	500	450	-20~70℃	-30-80℃
13	8"	HC080TG60064-A71	TN	800*480	192.80116.906.40mm	176.64*99.36mm	50pinRGB	500	600	-20~70℃	-30-80℃
14	8"	HC080TG45064-D01	TN	800*480	192.80116.906.40mm	176.64*99.36mm	60pinRGB	500	450	-20~70℃	-30-80℃
15	8"	HC080TGA0064-54	TN	800*480	192.80116.906.40mm	176.64*99.36mm	50pinRGB	800	250	-20~70℃	-30-80℃
16	8"	HC080TG80064-54	TN	1024*600	192.80116.906.40mm	176.64*99.36mm	50pinRGB	500	800	-20~70℃	-30-80℃
17	8"	HC080TH25055-97V02	TN	800*600	1811435.5mm	162*121.5mm	50pinRGB	1000	250	-20~70℃	--30-80℃
18	8"	HC080TH25055-97	TN	800*600	1831415.5mm	162*121.5mm	50pinRGB	500	250	-20~70℃	-30~80℃
19	8"	HC080TH60055- 97V02	TN	800*600	1831415.5mm	162*121.5mm	50pinRGB	500	600	-20~70℃	-30~80℃
20	8"	HC080THA0055-97	TN	800*600	1831415.5mm	162*121.5mm	50pinRGB	500	1000	-20~70℃	-30~80℃
21	8"	HC080TH25055-97V03	TN	800*600	1811435.5mm	162*121.5mm	50pinRGB	1000	250	-20~70℃	-30~80℃
22	8"	HC080TH30054-C03V01	TN	800*600	1811435.5mm	162*121.5mm	50pinRGB	1000	300	-20~70℃	-30~80℃
23	8"	HC080IM30025-A2V.C	IPS	1024*768	191.50148.755.82mm	162.05*121.54mm	40pinLVDS	800	250	-20~70℃	-30~80℃
24	8"	HC080TH50055-97V02	TN	800*600	1811435.5mm	162*121.5mm	50pinRGB	1000	500	-20~70℃	-30~80℃
25	8"	HC080TH80055-97	TN	800*600	1811435.5mm	162*121.5mm	50pinRGB	1000	800	-20~70℃	-30~80℃
26	8"	HC080TK40064-B35	TN	1024*600	192.8116.96.4mm	176.64*99.36mm	40pinLVDS	700	400	-30~80℃	-30~80℃

Customization:

FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
