Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC080IY60026-B30V.C
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC080IY60026-B30V.C |
Size: |
8"(IPS) |
Display Type: |
(IPS) |
Resolution: |
800*1280 |
Outline Dimension: |
127.64(W )*197.31(H)*4.7(T)mm |
Active Area: |
107.64(W)*172.22(H)mm |
Brightness: |
600cd/m2 |
Interface: |
30pinMIPI |
Viewing Angle: |
85/85/85/85 |
Operation Temp.: |
-10~50℃ |
Storage Temp.: |
-20~60℃ |
Contrast Ratio: |
900 |
Aspect Rati16:9o: |
10:16 |
Application: |
Digital Table Tent Advertising And Charging Player |
P/N: |
HC080IY60026-B30V.C |
Size: |
8"(IPS) |
Display Type: |
(IPS) |
Resolution: |
800*1280 |
Outline Dimension: |
127.64(W )*197.31(H)*4.7(T)mm |
Active Area: |
107.64(W)*172.22(H)mm |
Brightness: |
600cd/m2 |
Interface: |
30pinMIPI |
Viewing Angle: |
85/85/85/85 |
Operation Temp.: |
-10~50℃ |
Storage Temp.: |
-20~60℃ |
Contrast Ratio: |
900 |
Aspect Rati16:9o: |
10:16 |
Application: |
Digital Table Tent Advertising And Charging Player |

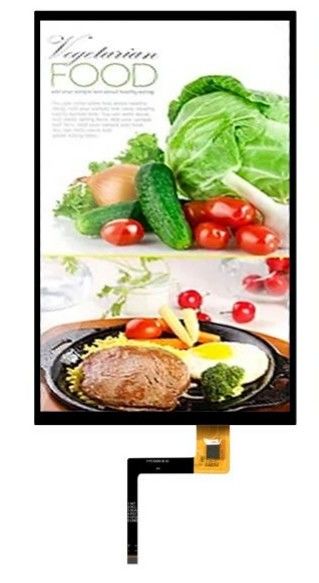

8 Inch IPS TFT LCD display with capacitive touch panel and 30pin MIPI Interface
Product Description:
HC080IY60026-B30V.C is an 8-inch capacitive touchscreen display that combines industry-leading touch screen with liquid crystal display. As a all in one embedded solution, it can help streamline your supply chain and simplify assembly. This display boasts a resolution of 800*1280 pixels, providing a good balance between image quality and affordability. It is a suitable choice for digital table tent advertising and charging player. With luminance of 600nits and contrast ratio of 900:1, the images presented on this display with IPS panel can be viewed clearly from the angle of 85/85/85/85(L/R/T/B) and readable under sunlight. With an outline dimension of 127.64mm*197.31mm*4.70mm, the HC080IY60026-B30V.C has a display area of 107.64mm*172.22mm and an interface of 30pin MIPI that has advantages of high data transmission speed, low power consumption and low EMI.
General Specification:
| P/N | HC080IY60026-B30V.C |
| Size | 8inch |
| Display type |
TFT / Transmissive / Normally Black
|
| Resolution | 800*1280 |
| Outline Dimension(mm) | 127.64(W )*197.31(H)*4.7(T)mm |
| Active Area(mm) | 107.64(W)*172.22(H)mm |
| Brightness(cd/m²) | 600 |
| Viewing Angle(L/R/T/B) | 85/85/85/85 |
| Interface | 30pinMIPI |
| Operation Temperature | -10~50℃ |
| Storge Temperature | -20~60℃ |
| Aspect ratio | 10:16 |
| Contrast ratio | 900 |
| Application | Digital table tent advertising and charging player |
Pin assignment:
Product drawings:
8-inch lcd display series:
|
8-inch LCD Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 8" | HC080IM30025-A0 | IPS | 1024*768 | 174*136*2.5mm | 162.05*121.54mm | 40pinRGB | 800 | 300 | -20~50℃ | -20~60℃ |
| 2 | 8" | HC080IM25055-99 | IPS | 1024*768 | 183*141*5.5mm | 162.05*121.54mm | 40pinLVDS | 800 | 250 | -20~70℃ | -30~80℃ |
| 3 | 8" | HC080IM30025-A0V01 | IPS | 1024*768 | 174*136*2.5mm | 162.05*121.54mm | 40pinRGB | 800 | 300 | -20~50℃ | -20~60℃ |
| 4 | 8" | HC080IM30025-A2 | IPS | 1024*768 | 174*136*2.5mm | 162.05*121.54mm | 40pinRGB | 800 | 300 | -20~50℃ | -20~60℃ |
| 5 | 8" | HC080IM30025-A2V01 | IPS | 1024*768 | 174*136*2.5mm | 162.05*121.54mm | 40pinRGB | 800 | 300 | -20~70℃ | -30~80℃ |
| 6 | 8" | HC080IY28026-B30 | IPS | 800*1280 | 114.62*184.124*2.5mm | 107.64*172.2mm | 30pinMIPI | 900 | 280 | -10~50℃ | -20~60℃ |
| 7 | 8" | HC080IY60026-B30V.C | IPS | 800*1280 | 127.64*197.31*4.70mm | 107.64*172.22mm | 30pinMIPI | 900 | 600 | -10~50℃ | -20~60℃ |
| 8 | 8" | HC080IU68064-A13V.G | IPS | 1280*720 | 192.80*116.90*8.40mm | 176.64*99.36mm | 30pinLVDS | 900 | 680 | -30~85℃ | -40-90℃ |
| 9 | 8" | HC080TG40064-52V01 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 400 | -20~70℃ | -30-80℃ |
| 10 | 8" | HC080TG40064-52 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 400 | -20~70℃ | -30-80℃ |
| 11 | 8" | HC080TG36078-52V.1 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 360 | -20~70℃ | -30-80℃ |
| 12 | 8" | HC080TG50064-54V.C | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 450 | -20~70℃ | -30-80℃ |
| 13 | 8" | HC080TG60064-A71 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 600 | -20~70℃ | -30-80℃ |
| 14 | 8" | HC080TG45064-D01 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 60pinRGB | 500 | 450 | -20~70℃ | -30-80℃ |
| 15 | 8" | HC080TGA0064-54 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 800 | 250 | -20~70℃ | -30-80℃ |
| 16 | 8" | HC080TG80064-54 | TN | 1024*600 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 800 | -20~70℃ | -30-80℃ |
| 17 | 8" | HC080TH25055-97V02 | TN | 800*600 | 181*143*5.5mm | 162*121.5mm | 50pinRGB | 1000 | 250 | -20~70℃ | --30-80℃ |
| 18 | 8" | HC080TH25055-97 | TN | 800*600 | 183*141*5.5mm | 162*121.5mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 19 | 8" | HC080TH60055- 97V02 | TN | 800*600 | 183*141*5.5mm | 162*121.5mm | 50pinRGB | 500 | 600 | -20~70℃ | -30~80℃ |
| 20 | 8" | HC080THA0055-97 | TN | 800*600 | 183*141*5.5mm | 162*121.5mm | 50pinRGB | 500 | 1000 | -20~70℃ | -30~80℃ |
| 21 | 8" | HC080TH25055-97V03 | TN | 800*600 | 181*143*5.5mm | 162*121.5mm | 50pinRGB | 1000 | 250 | -20~70℃ | -30~80℃ |
| 22 | 8" | HC080TH30054-C03V01 | TN | 800*600 | 181*143*5.5mm | 162*121.5mm | 50pinRGB | 1000 | 300 | -20~70℃ | -30~80℃ |
| 23 | 8" | HC080IM30025-A2V.C | IPS | 1024*768 | 191.50*148.75*5.82mm | 162.05*121.54mm | 40pinLVDS | 800 | 250 | -20~70℃ | -30~80℃ |
| 24 | 8" | HC080TH50055-97V02 | TN | 800*600 | 181*143*5.5mm | 162*121.5mm | 50pinRGB | 1000 | 500 | -20~70℃ | -30~80℃ |
| 25 | 8" | HC080TH80055-97 | TN | 800*600 | 181*143*5.5mm | 162*121.5mm | 50pinRGB | 1000 | 800 | -20~70℃ | -30~80℃ |
| 26 | 8" | HC080TK40064-B35 | TN | 1024*600 | 192.8*116.9*6.4mm | 176.64*99.36mm | 40pinLVDS | 700 | 400 | -30~80℃ | -30~80℃ |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
