8 Inch IPS Display LCD TFT Panel 1280*720 Resolution for Automobiles

8 Inch IPS LCD TFT with 1280*720 Resolution and wide temperature range

Product Description:

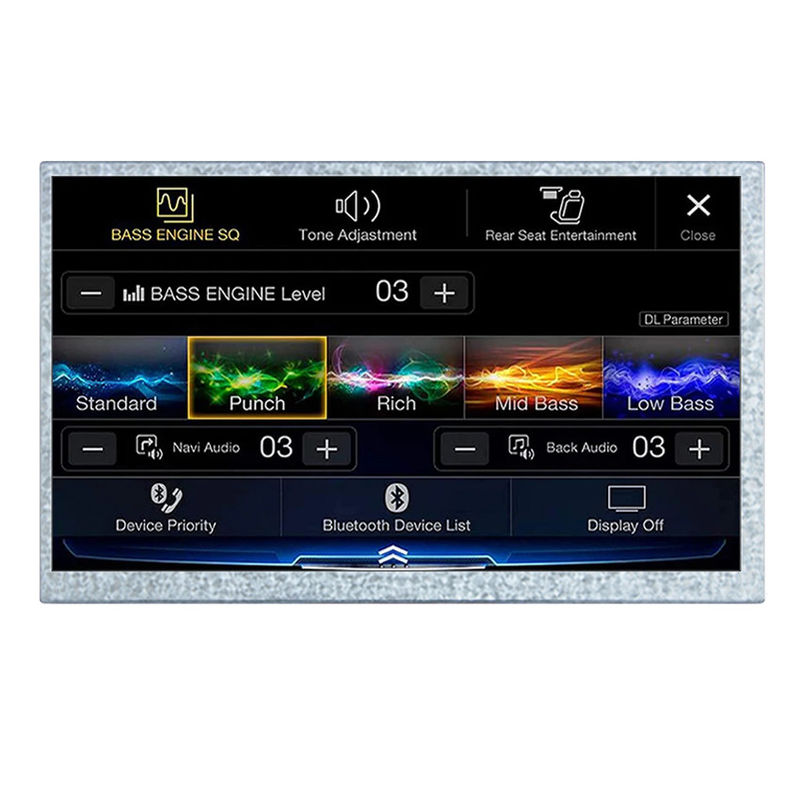

HC080IU68064-A13V.G has an 8-inch diagonally measured active area with 1280*720 pixels resolution. This TFT LCD is adapted for a low-reflection and higher color type and is designed with cover glass. With an outline dimension of 192.80mm*116.90mm*8.40mm, this display is equipped with an interface of 30pin LVDS, offering a reliable, high-speed, and low-power solution for data transmission. The HC080IU68064-A13V.G with an IPS panel has a brightness of 680 nits and a contrast ratio of 900:1, which provide a significant boost in visibility and make the screen content easier to read outdoors or in well-lit indoor spaces. This display can operate within a wide operation temperature range of -30℃ to 85℃, which can reduce wear and tear on components, leading to a longer lifespan and reduced maintenance costs. Therefore, combined with these functional advantages, this display has become a perfect display solution for most automobiles.

General Specification:


Pin assignment:

Backlight Driving Conditions:

Product drawings:

8-inch lcd display series:


Customization:



FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
