Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC101IK50050-A86
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC101IK50050-A86 |
Size: |
10.1"(IPS) |
Display Type: |
(IPS) |
Resolution: |
1024*600 |
Outline Dimension: |
235(W )*143(H)*5.0(T)mm |
Active Area: |
222.72(W)*125.28(H)mm |
Brightness: |
500cd/m2 |
Interface: |
40pinLVDS |
Viewing Angle: |
80/80/80/80 |
Operation Te-20~70mp.: |
-20~70 |
Storage Temp.: |
-20~70 |
Contrast Ratio: |
800 |
Aspect Rati16:9o: |
16:9 |
Application: |
Kids Tablet And Viscometer |
P/N: |
HC101IK50050-A86 |
Size: |
10.1"(IPS) |
Display Type: |
(IPS) |
Resolution: |
1024*600 |
Outline Dimension: |
235(W )*143(H)*5.0(T)mm |
Active Area: |
222.72(W)*125.28(H)mm |
Brightness: |
500cd/m2 |
Interface: |
40pinLVDS |
Viewing Angle: |
80/80/80/80 |
Operation Te-20~70mp.: |
-20~70 |
Storage Temp.: |
-20~70 |
Contrast Ratio: |
800 |
Aspect Rati16:9o: |
16:9 |
Application: |
Kids Tablet And Viscometer |

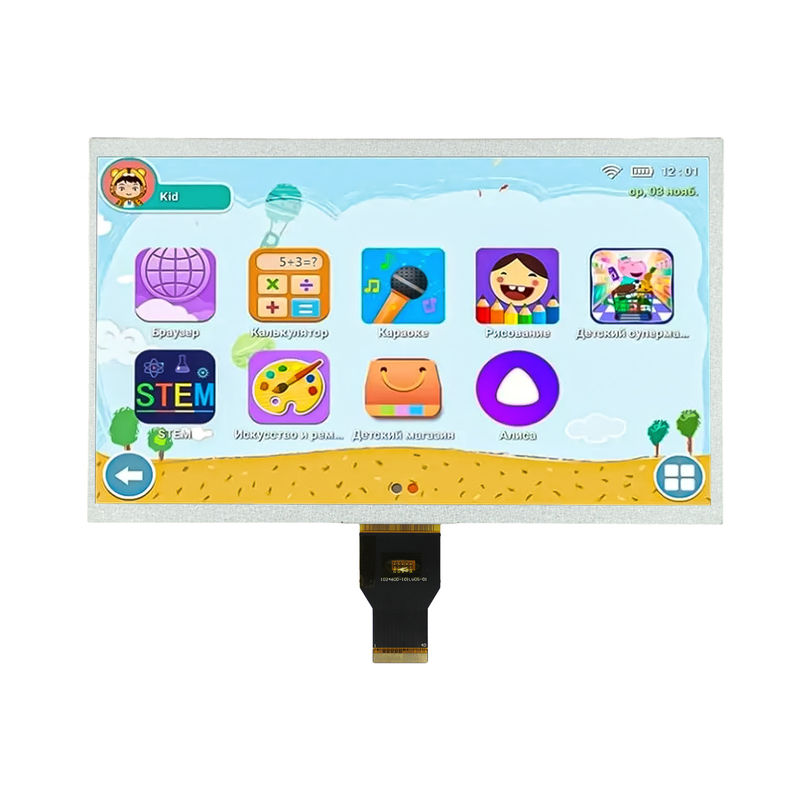

10.1 Inch Display TFT LCD 1024*600 Resolution and 500nits Brightness
Product Description:
HC101IK50050-A86 employs thin film transistor (TFT) technology and IPS technology, offering faster refresh rates and superior color accuracy compared to older LCD technologies. The 10.1-inch TFT LCD is commonly found in kids tablet and viscometer. This display with a resolution of 1024*600 pixels and luminance of 500nits delivers a stunning visual effect. Also included is a contrast ratio of 800:1, which makes the color on the screen more vivid. The HC101IK50050-A86 has a moderate outline dimension of 235.00mm*143.00mm*5.00mm and a high-quality 40pin LVDS interface to enhance the display’s compatibility with other electronic devices. The HC101IK50050-A86 is an eco-friendly and cost-effective option for your display needs. It can be used at -20℃ to 70 ℃ environment while reducing power consumption to extend the battery life of the device and reduce energy costs.
General Specification:
| P/N | HC101IK50050-A86 |
| Size | 10.1inch |
| Display type |
TFT
|
| Resolution | 1024*600 |
| Outline Dimension(mm) | 235(W )*143(H)*4.5(T)mm |
| Active Area(mm) | 222.72(W)*125.28(H)mm |
| Brightness(cd/m²) | 500 |
| Viewing Angle(L/R/T/B) | 80/80/80/80 |
| Interface | 40pinLVDS |
| Operation Temperature | -20~70 |
| Storge Temperature | -20~70 |
| Aspect ratio | 16:9 |
| Contrast ratio | 800 |
| Application | kids tablet and viscometer |
Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT |
|
Voltage for LED backlight
|
Vf | 9.0 | 9.6 | 10.5 | V |
|
Current for LED backlight
|
If | - | 300 | - | mA |
|
LED life time
|
- | 20000 | - | - | hrs |
Product drawings:
10.1-inch lcd display series:
|
10.1-inch LCD Display Sizes
|
||||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | ||||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature | |
| 1 | 10.1" | HC101IK20050-A79 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 40pinLVDS | 1000 | 200 | -20~70℃ | -30~80℃ | |
| 2 | 10.1" | HC101IK25050-D59 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 20pinLVDS | 1000 | 250 | -20~70℃ | -30~80℃ | |
| 3 | 10.1" | HC101IK35050-A79 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 50pinRGB | 1000 | 350 | -20~70℃ | -30~80℃ | |
| 4 | 10.1" | HC101IK50050-A79 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 50pinRGB | 1000 | 500 | -20~70℃ | -30~80℃ | |
| 5 | 10.1" | HC101IKA0050-A79 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 50pinRGB | 1000 | 1000 | -20~70℃ | -30~80℃ | |
| 6 | 10.1" | HC101IKA0050-F45 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 50pinRGB | 1000 | 1000 | -20~70℃ | -30~80℃ | |
| 7 | 10.1" | HC101IK50050-A86 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 40pinLVDS | 1000 | 500 | -20~70℃ | -30~80℃ | |
| 8 | 10.1" | HC101IK50050-A86H | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 40pinLVDS | 1000 | 500 | -30~80℃ | -40~85℃ | |
| 9 | 10.1" | HC101IK25045-C36 | IPS | 1024*600 | 235*143*4.5mm | 222.72*125.28mm | 40pinLVDS | 1000 | 250 | -20~70℃ | -30~80℃ | |
| 10 | 10.1" | HC101IK50045-C36 | IPS | 1024*600 | 235*143*4.5mm | 222.72*125.28mm | 40pinLVDS | 800 | 500 | -20~70℃ | -30~80℃ | |
| 11 | 10.1" | HC101IK50045-B74 | IPS | 1024*600 | 235*143*4.5mm | 222.72*125.28mm | 60pinLVDS | 1000 | 500 | -20~70℃ | -30~80℃ | |
| 12 | 10.1" | HC101IK65044-E16 | IPS | 1024*600 | 235*143*4.5mm | 222.72*125.28mm | 60pinLVDS | 1000 | 650 | -20~70℃ | -30~80℃ | |
| 13 | 10.1" | HC101IK50050-A85 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 40pinLVDS | 800 | 500 | -20~70℃ | -30~80℃ | |
| 14 | 10.1" | HC101IUA0046-F50 | IPS | 1280*720 | 234.96*142.96*4.6mm | 224.64*126.36mm | 50pinLVDS | 1000 | 1000 | -20~70℃ | -30~80℃ | |
| 15 | 10.1" | HC101IU80046-F50V.C | IPS | 1280*720 | 252.00*158.00*7.70mm | 224.64*126.36mm | 50pinLVDS | 1000 | 700 | -20~70℃ | -30~80℃ | |
| 16 | 10.1" | HC101I35025NB-V06 | IPS | 1280*800 |
|
216.96*135.6mm | 40pinLVDS | 800 | 350 | -20~70℃ | -30~80℃ | |
| 17 | 10.1" | HC101IP80025-A44 | IPS | 1280*800 | 229.46*149.10*2.51mm | 216.96*135.6mm | 40pinLVDS | 800 | 800 | -20~70℃ | -30~80℃ | |
| 18 | 10.1" | HC101IP30025-75V02 | IPS | 1280*800 | 229.46*149.10*2.51mm | 216.96*135.6mm | 40pinLVDS | 800 | 300 | -20~70℃ | -30~80℃ | |
| 19 | 10.1" | HC101IPA0050-A75-1 | IPS | 1280*800 | 229.46*149.10*4.70mm | 216.96*135.6mm | 40pinLVDS | 800 | 1000 | -20~70℃ | -30~80℃ | |
| 20 | 10.1" | HC101IP35048-A74V01 | IPS | 1280*800 | 229.46*149.10*4.8mm | 216.96*135.6mm | 40pinLVDS | 800 | 350 | -20~70℃ | -30~80℃ | |
| 21 | 10.1" | HC101IP65025-A16V01 | IPS | 1280*800 | 229.46*149.10*2.8mm | 216.96*135.6mm | 40pinLVDS | 800 | 650 | -20~70℃ | -30~80℃ | |
| 22 | 10.1" | HC101IP65025-A16 | IPS | 1280*800 | 229.06*148.70*2.80mm | 216.96*135.60mm | 40pinLVDS | 800 | 650 | -20~70℃ | -30~80℃ | |
| 23 | 10.1" | HC101IPA0025-A16 | IPS | 1280*800 | 229.06*148.70*2.51mm | 216.96*135.60mm | 40pinLVDS | 800 | 1000 | -20~70℃ | -30~80℃ | |
| 24 | 10.1" | HC101IP65025-A16V.C | IPS | 1280*800 | 229.26*148.70*4.55mm | 216.96*135.60mm | 40pinLVDS | 800 | 500 | -20~70℃ | -30~80℃ | |
| 25 | 10.1" | HC101IP65025-A17V01 | IPS | 1280*800 | 229.46*149.10*2.8mm | 216.96*135.60mm | 40pinLVDS | 800 | 650 | -20~70℃ | -30~80℃ | |
| 26 | 10.1" | HC101IP80025-A46 | IPS | 1280*800 | 229.06*149.1*2.5mm | 216.96*135.60mm | 40pinLVDS | 800 | 800 | -20~70℃ | -30~80℃ | |
| 27 | 10.1" | HC101IPA0047-F91V.C | IPS | 1280*800 | 232.45*152.60*6.75mm | 216.96*135.60mm | 40pinLVDS | 800 | 800 | -20~70℃ | -30~80℃ | |
| 28 | 10.1" | HC101IPA0048-A74V01 | IPS | 1280*800 | 229.46*149.10*4.70mm | 216.96*135.60mm | 40pinLVDS | 800 | 1000 | -20~70℃ | -30~80℃ | |
| 29 | 10.1" | HC101IP30025-C51V01 | IPS | 1280*800 | 229.46*149.10*4.70mm | 216.96*135.60mm | 40pinLVDS | 800 | 350 | -20~70℃ | -30~80℃ | |
| 30 | 10.1" | HC101IPA0048-A74 | IPS | 1280*800 | 229.46*149.10*4.8mm | 216.96*135.60mm | 40pinLVDS | 800 | 1000 | -20~70℃ | -30~80℃ | |
| 31 | 10.1" | HC101TK50050-D90 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 40pinLVDS | 800 | 500 | -20~70℃ | -30~80℃ | |
| 32 | 10.1" | HC101IY23026-B65 | IPS | 800*1280 | 143*228.6*2.5mm | 135.36*216.58mm | 40pinMIPI | 1000 | 230 | -10~50℃ | -20~60℃ | |
| 33 | 10.1" | HC101IY30025-D81 | IPS | 800*1280 | 143*228.6*2.5mm | 135.36*216.58mm | 40pinMIPI | 1000 | 300 | -10~50℃ | -20~60℃ | |
| 34 | 10.1" | HC101IY55025-D81 | IPS | 800*1280 | 143.00*228.60*2.50mm | 135.36*216.58mm | 40pinMIPI | 1000 | 550 | -20~60℃ | -20~70℃ | |
| 35 | 10.1" | HC101IY40026-D25 | IPS | 800*1280 | 143.00*228.60*2.60mm | 135.36*216.58mm | 31pinMIPI | 1000 | 400 | -20~70℃ | -20~70℃ | |
| 36 | 10.1" | HC101IY40026-D25V.C | IPS | 800*1280 | 149.04*229.40*4.45mm | 135.36*216.58mm | 31pinMIPI | 1000 | 400 | -20~70℃ | -20~70℃ | |
| 37 | 10.1" | HC101IUA0059-F51 | IPS | 1280*720 | 234.9*143*5.9mm | 224.64*126.36mm | 50pinLVDS | 1000 | 1000 | -30~85℃ | -30~85℃ | |
| 38 | 10.1" | HC101IU40045-G03 | IPS | 1280*720 | 234.9*143*4.5mm | 224.64*126.36mm | 60pinLVDS | 1000 | 400 | -30~85℃ | -30~85℃ | |
| 39 | 10.1" | HC101IX25064-F13 | IPS | 440*1920 | 64.98*266.39*4.60mm | 57.95*252.86mm | 40pinMIPI | 1000 | 250 | -20~70℃ | -30~80℃ | |
| 40 | 10.1" | HC101IP80067-C35V.C | IPS | 1280*800 | 248.77*167.44*6.8mm | 216.96*135.60mm | 40pinLVDS | 800 | 800 | -20~70℃ | -30~80℃ | |
| 41 | 10.1" | HC101IY30025-D81V.C | IPS | 800*1280 | 164.43*254.40*4.58mm | 135.36*216.58mm | 40pinMIPI | 1000 | 300 | -20~70℃ | -30~80℃ | |
| 42 | 10.1" | HC101IZ30026-92 V.C | IPS | 1200*1920 | 164.43*254.40*4.58mm | 135.36*216.58mm | 40pinMIPI | 1000 | 280 | -10~60℃ | -10~60℃ | |
| 43 | 10.1" | HC101IZ30026-92V01 | IPS | 1200*1920 | 143*228.6*2.6mm | 135.36*216.58mm | 40pinMIPI | 1000 | 300 | -10~50℃ | -10~60℃ | |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
