Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC101IK65044-E16
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC101IK65044-E16 |
Size: |
10.1"(IPS) |
Display Type: |
(IPS) |
Resolution: |
1024*600 |
Outline Dimension: |
235(W )*143(H)*4.5(T)mm |
Active Area: |
222.72(W)*125.28(H)mm |
Brightness: |
650cd/m2 |
Interface: |
60pinLVDS |
Viewing Angle: |
85/85/85/85 |
Operation Te-20~70mp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
800 |
Aspect Rati16:9o: |
16:9 |
Application: |
Gradient Thermal Cycler |
P/N: |
HC101IK65044-E16 |
Size: |
10.1"(IPS) |
Display Type: |
(IPS) |
Resolution: |
1024*600 |
Outline Dimension: |
235(W )*143(H)*4.5(T)mm |
Active Area: |
222.72(W)*125.28(H)mm |
Brightness: |
650cd/m2 |
Interface: |
60pinLVDS |
Viewing Angle: |
85/85/85/85 |
Operation Te-20~70mp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
800 |
Aspect Rati16:9o: |
16:9 |
Application: |
Gradient Thermal Cycler |

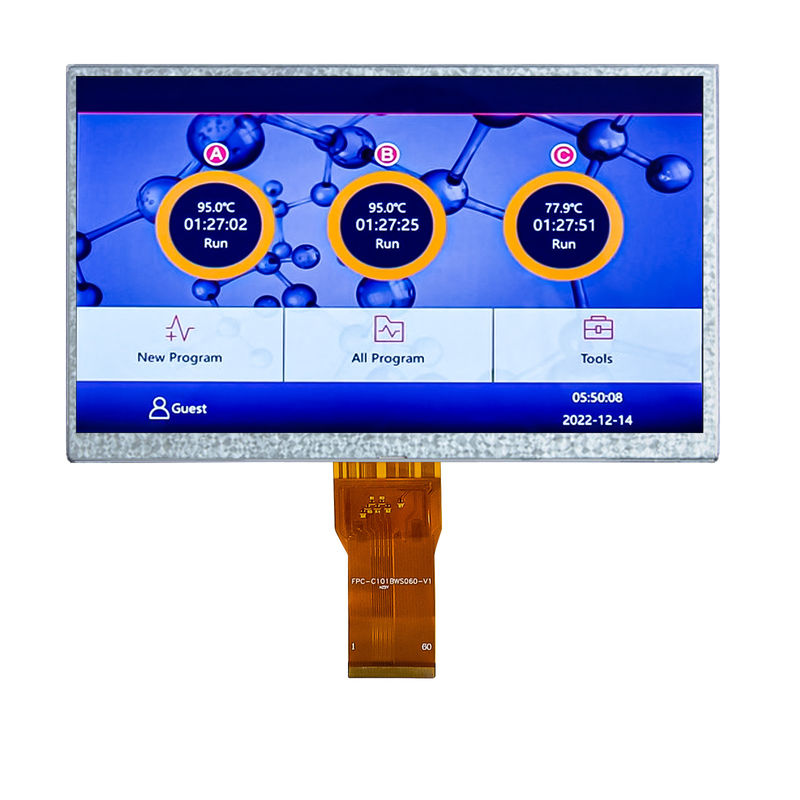

10.1 Inch TFT LCD modules with 650 Nits Brightness and wide temperature range
Product Description:
HC101IK65044-E16 with an outline dimension of 235.00mm*143.00mm*4.50mm brings an impressive display quality to users. It is a 10.1-inch IPS display with 1024*600 pixels resolution, which provides finer details and crisper edges, resulting in realistic and visually pleasing images. This display boasts a brightness of 650 nits and a contrast ratio of 800:1, which can contribute to vibrant colors and an immersive viewing experience and its brightness is beneficial in well-lit indoor spaces. Through the 60pin LVDS interface, this display is easy to connect to various devices, such as gradient thermal cycler. Another feature of this display is its wide operating temperature, it can work in the temperature range of -20℃ to 70℃ without malfunctions caused by temperature fluctuations.
General Specification:
| P/N | HC101IK65044-E16 |
| Size | 10.1inch |
| Display type |
TFT
|
| Resolution | 1024*600 |
| Outline Dimension(mm) | 235(W )*143(H)*4.5(T)mm |
| Active Area(mm) | 222.72(W)*125.28(H)mm |
| Brightness(cd/m²) | 650 |
| Viewing Angle(L/R/T/B) | 85/85/85/85 |
| Interface | 60pinLVDS |
| Operation Temperature | -20~70℃ |
| Storge Temperature | -30~80℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 800 |
| Application | Gradient thermal cycler |
Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT |
|
Voltage for LED backlight
|
Vf | - | 18.6 | 19.2 | V |
|
Current for LED backlight
|
If | - | 280 | - | mA |
|
LED life time
|
- | 20000 | - | - | hrs |
Product drawings:
10.1-inch lcd display series:
|
10.1-inch LCD Display Sizes
|
||||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | ||||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature | |
| 1 | 10.1" | HC101IK20050-A79 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 40pinLVDS | 1000 | 200 | -20~70℃ | -30~80℃ | |
| 2 | 10.1" | HC101IK25050-D59 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 20pinLVDS | 1000 | 250 | -20~70℃ | -30~80℃ | |
| 3 | 10.1" | HC101IK35050-A79 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 50pinRGB | 1000 | 350 | -20~70℃ | -30~80℃ | |
| 4 | 10.1" | HC101IK50050-A79 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 50pinRGB | 1000 | 500 | -20~70℃ | -30~80℃ | |
| 5 | 10.1" | HC101IKA0050-A79 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 50pinRGB | 1000 | 1000 | -20~70℃ | -30~80℃ | |
| 6 | 10.1" | HC101IKA0050-F45 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 50pinRGB | 1000 | 1000 | -20~70℃ | -30~80℃ | |
| 7 | 10.1" | HC101IK50050-A86 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 40pinLVDS | 1000 | 500 | -20~70℃ | -30~80℃ | |
| 8 | 10.1" | HC101IK50050-A86H | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 40pinLVDS | 1000 | 500 | -30~80℃ | -40~85℃ | |
| 9 | 10.1" | HC101IK25045-C36 | IPS | 1024*600 | 235*143*4.5mm | 222.72*125.28mm | 40pinLVDS | 1000 | 250 | -20~70℃ | -30~80℃ | |
| 10 | 10.1" | HC101IK50045-C36 | IPS | 1024*600 | 235*143*4.5mm | 222.72*125.28mm | 40pinLVDS | 800 | 500 | -20~70℃ | -30~80℃ | |
| 11 | 10.1" | HC101IK50045-B74 | IPS | 1024*600 | 235*143*4.5mm | 222.72*125.28mm | 60pinLVDS | 1000 | 500 | -20~70℃ | -30~80℃ | |
| 12 | 10.1" | HC101IK65044-E16 | IPS | 1024*600 | 235*143*4.5mm | 222.72*125.28mm | 60pinLVDS | 1000 | 650 | -20~70℃ | -30~80℃ | |
| 13 | 10.1" | HC101IK50050-A85 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 40pinLVDS | 800 | 500 | -20~70℃ | -30~80℃ | |
| 14 | 10.1" | HC101IUA0046-F50 | IPS | 1280*720 | 234.96*142.96*4.6mm | 224.64*126.36mm | 50pinLVDS | 1000 | 1000 | -20~70℃ | -30~80℃ | |
| 15 | 10.1" | HC101IU80046-F50V.C | IPS | 1280*720 | 252.00*158.00*7.70mm | 224.64*126.36mm | 50pinLVDS | 1000 | 700 | -20~70℃ | -30~80℃ | |
| 16 | 10.1" | HC101I35025NB-V06 | IPS | 1280*800 |
|
216.96*135.6mm | 40pinLVDS | 800 | 350 | -20~70℃ | -30~80℃ | |
| 17 | 10.1" | HC101IP80025-A44 | IPS | 1280*800 | 229.46*149.10*2.51mm | 216.96*135.6mm | 40pinLVDS | 800 | 800 | -20~70℃ | -30~80℃ | |
| 18 | 10.1" | HC101IP30025-75V02 | IPS | 1280*800 | 229.46*149.10*2.51mm | 216.96*135.6mm | 40pinLVDS | 800 | 300 | -20~70℃ | -30~80℃ | |
| 19 | 10.1" | HC101IPA0050-A75-1 | IPS | 1280*800 | 229.46*149.10*4.70mm | 216.96*135.6mm | 40pinLVDS | 800 | 1000 | -20~70℃ | -30~80℃ | |
| 20 | 10.1" | HC101IP35048-A74V01 | IPS | 1280*800 | 229.46*149.10*4.8mm | 216.96*135.6mm | 40pinLVDS | 800 | 350 | -20~70℃ | -30~80℃ | |
| 21 | 10.1" | HC101IP65025-A16V01 | IPS | 1280*800 | 229.46*149.10*2.8mm | 216.96*135.6mm | 40pinLVDS | 800 | 650 | -20~70℃ | -30~80℃ | |
| 22 | 10.1" | HC101IP65025-A16 | IPS | 1280*800 | 229.06*148.70*2.80mm | 216.96*135.60mm | 40pinLVDS | 800 | 650 | -20~70℃ | -30~80℃ | |
| 23 | 10.1" | HC101IPA0025-A16 | IPS | 1280*800 | 229.06*148.70*2.51mm | 216.96*135.60mm | 40pinLVDS | 800 | 1000 | -20~70℃ | -30~80℃ | |
| 24 | 10.1" | HC101IP65025-A16V.C | IPS | 1280*800 | 229.26*148.70*4.55mm | 216.96*135.60mm | 40pinLVDS | 800 | 500 | -20~70℃ | -30~80℃ | |
| 25 | 10.1" | HC101IP65025-A17V01 | IPS | 1280*800 | 229.46*149.10*2.8mm | 216.96*135.60mm | 40pinLVDS | 800 | 650 | -20~70℃ | -30~80℃ | |
| 26 | 10.1" | HC101IP80025-A46 | IPS | 1280*800 | 229.06*149.1*2.5mm | 216.96*135.60mm | 40pinLVDS | 800 | 800 | -20~70℃ | -30~80℃ | |
| 27 | 10.1" | HC101IPA0047-F91V.C | IPS | 1280*800 | 232.45*152.60*6.75mm | 216.96*135.60mm | 40pinLVDS | 800 | 800 | -20~70℃ | -30~80℃ | |
| 28 | 10.1" | HC101IPA0048-A74V01 | IPS | 1280*800 | 229.46*149.10*4.70mm | 216.96*135.60mm | 40pinLVDS | 800 | 1000 | -20~70℃ | -30~80℃ | |
| 29 | 10.1" | HC101IP30025-C51V01 | IPS | 1280*800 | 229.46*149.10*4.70mm | 216.96*135.60mm | 40pinLVDS | 800 | 350 | -20~70℃ | -30~80℃ | |
| 30 | 10.1" | HC101IPA0048-A74 | IPS | 1280*800 | 229.46*149.10*4.8mm | 216.96*135.60mm | 40pinLVDS | 800 | 1000 | -20~70℃ | -30~80℃ | |
| 31 | 10.1" | HC101TK50050-D90 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 40pinLVDS | 800 | 500 | -20~70℃ | -30~80℃ | |
| 32 | 10.1" | HC101IY23026-B65 | IPS | 800*1280 | 143*228.6*2.5mm | 135.36*216.58mm | 40pinMIPI | 1000 | 230 | -10~50℃ | -20~60℃ | |
| 33 | 10.1" | HC101IY30025-D81 | IPS | 800*1280 | 143*228.6*2.5mm | 135.36*216.58mm | 40pinMIPI | 1000 | 300 | -10~50℃ | -20~60℃ | |
| 34 | 10.1" | HC101IY55025-D81 | IPS | 800*1280 | 143.00*228.60*2.50mm | 135.36*216.58mm | 40pinMIPI | 1000 | 550 | -20~60℃ | -20~70℃ | |
| 35 | 10.1" | HC101IY40026-D25 | IPS | 800*1280 | 143.00*228.60*2.60mm | 135.36*216.58mm | 31pinMIPI | 1000 | 400 | -20~70℃ | -20~70℃ | |
| 36 | 10.1" | HC101IY40026-D25V.C | IPS | 800*1280 | 149.04*229.40*4.45mm | 135.36*216.58mm | 31pinMIPI | 1000 | 400 | -20~70℃ | -20~70℃ | |
| 37 | 10.1" | HC101IUA0059-F51 | IPS | 1280*720 | 234.9*143*5.9mm | 224.64*126.36mm | 50pinLVDS | 1000 | 1000 | -30~85℃ | -30~85℃ | |
| 38 | 10.1" | HC101IU40045-G03 | IPS | 1280*720 | 234.9*143*4.5mm | 224.64*126.36mm | 60pinLVDS | 1000 | 400 | -30~85℃ | -30~85℃ | |
| 39 | 10.1" | HC101IX25064-F13 | IPS | 440*1920 | 64.98*266.39*4.60mm | 57.95*252.86mm | 40pinMIPI | 1000 | 250 | -20~70℃ | -30~80℃ | |
| 40 | 10.1" | HC101IP80067-C35V.C | IPS | 1280*800 | 248.77*167.44*6.8mm | 216.96*135.60mm | 40pinLVDS | 800 | 800 | -20~70℃ | -30~80℃ | |
| 41 | 10.1" | HC101IY30025-D81V.C | IPS | 800*1280 | 164.43*254.40*4.58mm | 135.36*216.58mm | 40pinMIPI | 1000 | 300 | -20~70℃ | -30~80℃ | |
| 42 | 10.1" | HC101IZ30026-92 V.C | IPS | 1200*1920 | 164.43*254.40*4.58mm | 135.36*216.58mm | 40pinMIPI | 1000 | 280 | -10~60℃ | -10~60℃ | |
| 43 | 10.1" | HC101IZ30026-92V01 | IPS | 1200*1920 | 143*228.6*2.6mm | 135.36*216.58mm | 40pinMIPI | 1000 | 300 | -10~50℃ | -10~60℃ | |
