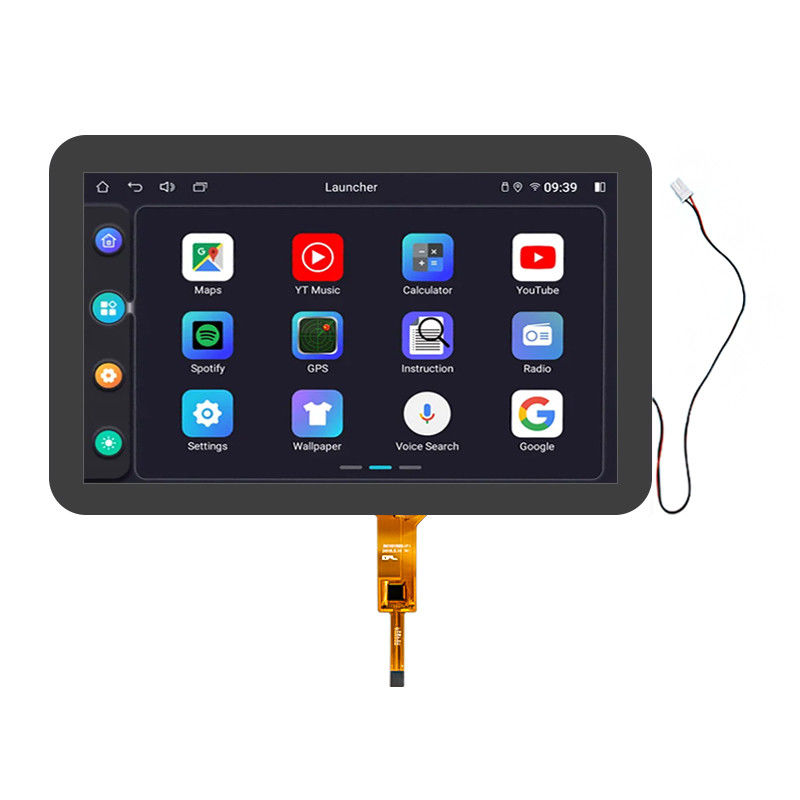

IPS 10.1'' Capacitive Touch Screen TFT Display With 700 Nits Brightness

10.1 TFT display with 700 nits Brightness and capacitive touch panel

Product Description:

HC101IU80046-F50V.C is designed for applications that require wider viewing angles and superior performance. As a 10.1-inch display, it has a built-in IPS panel and a capacitive touchscreen that is a valuable tool for interacting with digital content and information. This is a display that can operate normally at temperatures from -30°C and 85°C, and its has a longer service life and more excellent performance. With a typical brightness of 700 nits and a contrast ratio of 1000:1, this display can show clear and detailed images under a wide array of lighting conditions. Besides, this display has outline dimension of 252.00mm*158.00mm*7.70mm and an active area of 224.64mm*126.36mm that can present images or videos with 1280*720 pixels resolution. The HC101IU80046-F50V.C transmits data via a 50-pin LVDS interface, which is very useful for presenting high-definition images for devices such as video doorbell and diagnostic car scammer.

General Specification:


Product drawings:

10.1-inch lcd display series:


Customization:



FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
