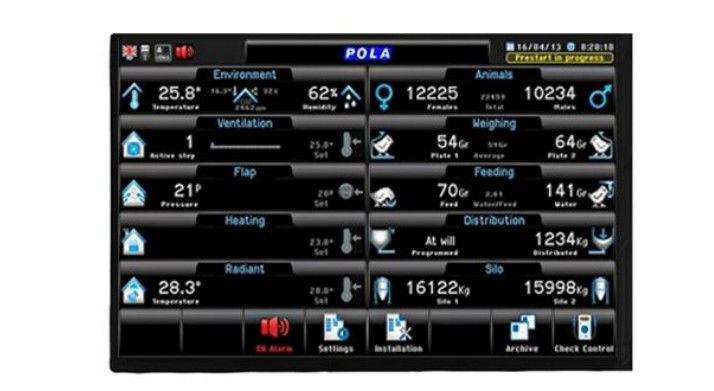

Normally Black 10.1 Inch LVDS TFT LCD Display With 650nits Brightness

Name: Normally Black 10.1 Inch LVDS TFT LCD Display With 650nits Brightness
Brand: Heng Cheng Electronics Technology (HK) Co.,Ltd
SKU: HC101IP65025-A16V01
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HETECH

Certification: ISO9001,ISO14001,ISO13485,IATF16949

Model Number: HC101IP65025-A16V01

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Delivery Time: 4-6weeks

Payment Terms: T/T

Supply Ability: 50K/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Normally Black LVDS TFT LCD, Normally Black  10.1 Inch LCD Display, 10.1 Inch LVDS TFT LCD


P/N:	HC101IP65025-A16V01	Size:	10.1"(IPS)
Display Type:	(IPS)	Resolution:	1280*800
Outline Dimension:	229.46(W )149.1(H)2.80(T)mm	Active Area:	216.96(W)*135.60(H)mm
Brightness:	650cd/m2	Interface:	40pinLVDS
Viewing Angle:	85/85/85/85	Operation Temp.:	-20~70
Storage Temp.:	-30~80	Contrast Ratio:	800
Aspect Rati16:9o:	16:10	Application:	Livestock Controller And Dynamic Motor Analyzer

P/N:	HC101IP65025-A16V01
Size:	10.1"(IPS)
Display Type:	(IPS)
Resolution:	1280*800
Outline Dimension:	229.46(W )149.1(H)2.80(T)mm
Active Area:	216.96(W)*135.60(H)mm
Brightness:	650cd/m2
Interface:	40pinLVDS
Viewing Angle:	85/85/85/85
Operation Temp.:	-20~70
Storage Temp.:	-30~80
Contrast Ratio:	800
Aspect Rati16:9o:	16:10
Application:	Livestock Controller And Dynamic Motor Analyzer

Normally Black 10.1 Inch LVDS TFT LCD Display With 650nits Brightness

10.1 Inch LVDS TFT LCD with 650nits Brightness and 85/85/85/85 Viewing Angle

Product Description:

HC101IP65025-A16V01, a 10.1-inch display, adopts IPS hard screen technology and TFT technology, enhancing the display effect. With a backlight of 650nits and a contrast ratio of 800:1, this display with 1280*800 pixels resolution delivers standout color reproduction and image consistency and ensures great visibility even in bright conditions. The display is designed with an outline dimension of 229.06mm*148.70mm*2.80mm, making it perfect for embedding into various electronic devices such as livestock controller and dynamic motor analyzer. The 40pin LVDS offers high-speed data transmission while minimizing power consumption. Furthermore, even in the working environment of -20℃ to 70℃, this display can still maintain optimal performance and its various functions can work normally to present the best visual effects for users.

General Specification:

P/N	HC101IP65025-A16V01
Size	10.1inch
Display type	Transmissive,Normally Black
Resolution	1280*800
Outline Dimension(mm)	229.46(W )149.1(H)4.70(T)mm
Active Area(mm)	216.96(W)*135.60(H)mm
Brightness(cd/m²)	650
Viewing Angle(L/R/T/B)	85/85/85/85
Interface	40pinLVDS
Operation Temperature	-10~60
Storge Temperature	-20~70
Aspect ratio	16:10
Contrast ratio	800
Application	Livestock controller and dynamic motor analyzer

Pin assignment:

Normally Black 10.1 Inch LVDS TFT LCD Display With 650nits Brightness 0

Backlight Driving Conditions:

Item	Symbol	MIN	TYP	MAX	UNIT
Voltage for LED backlight	Vf	8.4	9.6	10.5	V
Current for LED backlight	If	-	260	-	mA
LED life time	-	20000	25000	30000	hrs

Product drawings:

10.1-inch lcd display series:

10.1-inch LCD Display Sizes

Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc.

No.

Size

Part No.

LCD type

Resolution

Outline dimension

Active area

Interface

Contrast ratio

Brightness

Operation temperature

Storage temperature

10.1"

HC101IK20050-A79

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

40pinLVDS

1000

200

-20~70℃

-30~80℃

10.1"

HC101IK25050-D59

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

20pinLVDS

1000

250

-20~70℃

-30~80℃

10.1"

HC101IK35050-A79

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

50pinRGB

1000

350

-20~70℃

-30~80℃

10.1"

HC101IK50050-A79

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

50pinRGB

1000

500

-20~70℃

-30~80℃

10.1"

HC101IKA0050-A79

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

50pinRGB

1000

-20~70℃

-30~80℃

10.1"

HC101IKA0050-F45

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

50pinRGB

1000

-20~70℃

-30~80℃

10.1"

HC101IK50050-A86

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

40pinLVDS

1000

500

-20~70℃

-30~80℃

10.1"

HC101IK50050-A86H

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

40pinLVDS

1000

500

-30~80℃

-40~85℃

10.1"

HC101IK25045-C36

IPS

1024*600

235*143*4.5mm

222.72*125.28mm

40pinLVDS

1000

250

-20~70℃

-30~80℃

10.1"

HC101IK50045-C36

IPS

1024*600

235*143*4.5mm

222.72*125.28mm

40pinLVDS

800

500

-20~70℃

-30~80℃

10.1"

HC101IK50045-B74

IPS

1024*600

235*143*4.5mm

222.72*125.28mm

60pinLVDS

1000

500

-20~70℃

-30~80℃

10.1"

HC101IK65044-E16

IPS

1024*600

235*143*4.5mm

222.72*125.28mm

60pinLVDS

1000

650

-20~70℃

-30~80℃

10.1"

HC101IK50050-A85

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

40pinLVDS

800

500

-20~70℃

-30~80℃

10.1"

HC101IUA0046-F50

IPS

1280*720

234.96*142.96*4.6mm

224.64*126.36mm

50pinLVDS

1000

-20~70℃

-30~80℃

10.1"

HC101IU80046-F50V.C

IPS

1280*720

252.00*158.00*7.70mm

224.64*126.36mm

50pinLVDS

1000

700

-20~70℃

-30~80℃

10.1"

HC101I35025NB-V06

IPS

1280*800

229.46*149.10*2.5mm

216.96*135.6mm

40pinLVDS

800

350

-20~70℃

-30~80℃

10.1"

HC101IP80025-A44

IPS

1280*800

229.46*149.10*2.51mm

216.96*135.6mm

40pinLVDS

800

-20~70℃

-30~80℃

10.1"

HC101IP30025-75V02

IPS

1280*800

229.46*149.10*2.51mm

216.96*135.6mm

40pinLVDS

800

300

-20~70℃

-30~80℃

10.1"

HC101IPA0050-A75-1

IPS

1280*800

229.46*149.10*4.70mm

216.96*135.6mm

40pinLVDS

800

1000

-20~70℃

-30~80℃

10.1"

HC101IP35048-A74V01

IPS

1280*800

229.46*149.10*4.8mm

216.96*135.6mm

40pinLVDS

800

350

-20~70℃

-30~80℃

10.1"

HC101IP65025-A16V01

IPS

1280*800

229.46*149.10*2.8mm

216.96*135.6mm

40pinLVDS

800

650

-20~70℃

-30~80℃

10.1"

HC101IP65025-A16

IPS

1280*800

229.06*148.70*2.80mm

216.96*135.60mm

40pinLVDS

800

650

-20~70℃

-30~80℃

10.1"

HC101IPA0025-A16

IPS

1280*800

229.06*148.70*2.51mm

216.96*135.60mm

40pinLVDS

800

1000

-20~70℃

-30~80℃

10.1"

HC101IP65025-A16V.C

IPS

1280*800

229.26*148.70*4.55mm

216.96*135.60mm

40pinLVDS

800

500

-20~70℃

-30~80℃

10.1"

HC101IP65025-A17V01

IPS

1280*800

229.46*149.10*2.8mm

216.96*135.60mm

40pinLVDS

800

650

-20~70℃

-30~80℃

10.1"

HC101IP80025-A46

IPS

1280*800

229.06*149.1*2.5mm

216.96*135.60mm

40pinLVDS

800

-20~70℃

-30~80℃

10.1"

HC101IPA0047-F91V.C

IPS

1280*800

232.45*152.60*6.75mm

216.96*135.60mm

40pinLVDS

800

-20~70℃

-30~80℃

10.1"

HC101IPA0048-A74V01

IPS

1280*800

229.46*149.10*4.70mm

216.96*135.60mm

40pinLVDS

800

1000

-20~70℃

-30~80℃

10.1"

HC101IP30025-C51V01

IPS

1280*800

229.46*149.10*4.70mm

216.96*135.60mm

40pinLVDS

800

350

-20~70℃

-30~80℃

10.1"

HC101IPA0048-A74

IPS

1280*800

229.46*149.10*4.8mm

216.96*135.60mm

40pinLVDS

800

1000

-20~70℃

-30~80℃

10.1"

HC101TK50050-D90

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

40pinLVDS

800

500

-20~70℃

-30~80℃

10.1"

HC101IY23026-B65

IPS

800*1280

143*228.6*2.5mm

135.36*216.58mm

40pinMIPI

1000

230

-10~50℃

-20~60℃

10.1"

HC101IY30025-D81

IPS

800*1280

143*228.6*2.5mm

135.36*216.58mm

40pinMIPI

1000

300

-10~50℃

-20~60℃

10.1"

HC101IY55025-D81

IPS

800*1280

143.00*228.60*2.50mm

135.36*216.58mm

40pinMIPI

1000

550

-20~60℃

-20~70℃

10.1"

HC101IY40026-D25

IPS

800*1280

143.00*228.60*2.60mm

135.36*216.58mm

31pinMIPI

1000

400

-20~70℃

10.1"

HC101IY40026-D25V.C

IPS

800*1280

149.04*229.40*4.45mm

135.36*216.58mm

31pinMIPI

1000

400

-20~70℃

10.1"

HC101IUA0059-F51

IPS

1280*720

234.9*143*5.9mm

224.64*126.36mm

50pinLVDS

1000

-30~85℃

10.1"

HC101IU40045-G03

IPS

1280*720

234.9*143*4.5mm

224.64*126.36mm

60pinLVDS

1000

400

-30~85℃

10.1"

HC101IX25064-F13

IPS

440*1920

64.98*266.39*4.60mm

57.95*252.86mm

40pinMIPI

1000

250

-20~70℃

-30~80℃

10.1"

HC101IP80067-C35V.C

IPS

1280*800

248.77*167.44*6.8mm

216.96*135.60mm

40pinLVDS

800

-20~70℃

-30~80℃

10.1"

HC101IY30025-D81V.C

IPS

800*1280

164.43*254.40*4.58mm

135.36*216.58mm

40pinMIPI

1000

300

-20~70℃

-30~80℃

10.1"

HC101IZ30026-92 V.C

IPS

1200*1920

164.43*254.40*4.58mm

135.36*216.58mm

40pinMIPI

1000

280

-10~60℃

10.1"

HC101IZ30026-92V01

IPS

1200*1920

143*228.6*2.6mm

135.36*216.58mm

40pinMIPI

1000

300

-10~50℃

-10~60℃

Customization:

FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
