Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC101IY55025-D81
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC101IY55025-D81 |
Size: |
10.1"(IPS) |
Display Type: |
(IPS) |
Resolution: |
800*1280 |
Outline Dimension: |
143(W )*228.6(H)*2.5(T)mm |
Active Area: |
135.36(W)*216.58(H)mm |
Brightness: |
550cd/m2 |
Interface: |
40pinMIPI |
Viewing Angle: |
80/80/80/80 |
Operation Temp.: |
-20~60 |
Storage Temp.: |
-20~70 |
Contrast Ratio: |
1000 |
Aspect Rati16:9o: |
10:16 |
Application: |
Climate Management And Three Phase Power Logger. |
P/N: |
HC101IY55025-D81 |
Size: |
10.1"(IPS) |
Display Type: |
(IPS) |
Resolution: |
800*1280 |
Outline Dimension: |
143(W )*228.6(H)*2.5(T)mm |
Active Area: |
135.36(W)*216.58(H)mm |
Brightness: |
550cd/m2 |
Interface: |
40pinMIPI |
Viewing Angle: |
80/80/80/80 |
Operation Temp.: |
-20~60 |
Storage Temp.: |
-20~70 |
Contrast Ratio: |
1000 |
Aspect Rati16:9o: |
10:16 |
Application: |
Climate Management And Three Phase Power Logger. |

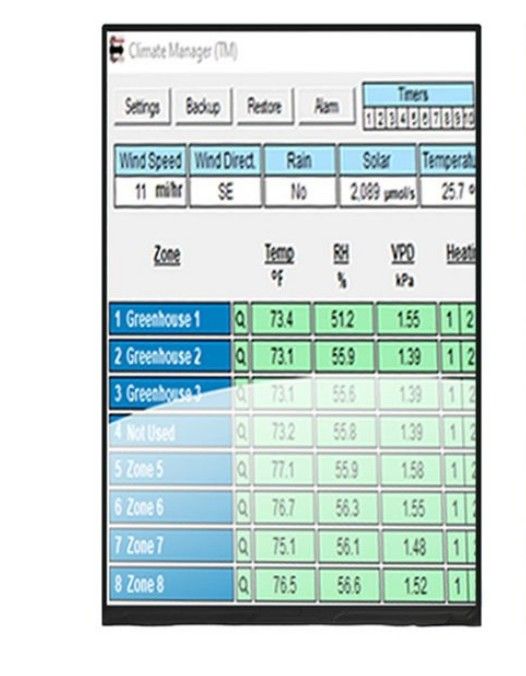

10.1 Inch IPS LCD TFT with 800*1280 Resolution and 550nits Brightness
Product Description:
HC101IY55025-D81, a 10.1-inch IPS display, aims to improve the quality of life of every user and bring a better human-computer interactive experience. This display is embedded in a compact 143.00mm*228.60mm*2.50mm frame, leaving a rich display area of 135.36*216.58mm with 800*1280 pixels for sharp and delicate images. The HC101IY55025-D81 boasts a high contrast ratio of 1000:1 and a luminance of 550nits, ensuring the vibrant image and the screen’s visibility under a wide array of lighting conditions. The interface of 40pin MIPI provides a substantial benefit to the image quality, and make the HC101IY55025-D81 quite suitable for climate management and three phase power logger.
General Specification:
| P/N | HC101IY55025-D81 |
| Size | 10.1inch |
| Display type |
Normally Black
|
| Resolution | 800*1280 |
| Outline Dimension(mm) | 143(W )*228.6(H)*2.5(T)mm |
| Active Area(mm) | 135.36(W)*216.58(H)mm |
| Brightness(cd/m²) | 550 |
| Viewing Angle(L/R/T/B) | 80/80/80/80 |
| Interface | 40pinMIPI |
| Operation Temperature | -20~60 |
| Storge Temperature | -20~70 |
| Aspect ratio | 10:16 |
| Contrast ratio | 1000 |
| Application | Climate management and three phase power logger. |
Pin assignment:
Product drawings:
10.1-inch lcd display series:
|
10.1-inch LCD Display Sizes
|
||||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | ||||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature | |
| 1 | 10.1" | HC101IK20050-A79 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 40pinLVDS | 1000 | 200 | -20~70℃ | -30~80℃ | |
| 2 | 10.1" | HC101IK25050-D59 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 20pinLVDS | 1000 | 250 | -20~70℃ | -30~80℃ | |
| 3 | 10.1" | HC101IK35050-A79 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 50pinRGB | 1000 | 350 | -20~70℃ | -30~80℃ | |
| 4 | 10.1" | HC101IK50050-A79 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 50pinRGB | 1000 | 500 | -20~70℃ | -30~80℃ | |
| 5 | 10.1" | HC101IKA0050-A79 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 50pinRGB | 1000 | 1000 | -20~70℃ | -30~80℃ | |
| 6 | 10.1" | HC101IKA0050-F45 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 50pinRGB | 1000 | 1000 | -20~70℃ | -30~80℃ | |
| 7 | 10.1" | HC101IK50050-A86 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 40pinLVDS | 1000 | 500 | -20~70℃ | -30~80℃ | |
| 8 | 10.1" | HC101IK50050-A86H | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 40pinLVDS | 1000 | 500 | -30~80℃ | -40~85℃ | |
| 9 | 10.1" | HC101IK25045-C36 | IPS | 1024*600 | 235*143*4.5mm | 222.72*125.28mm | 40pinLVDS | 1000 | 250 | -20~70℃ | -30~80℃ | |
| 10 | 10.1" | HC101IK50045-C36 | IPS | 1024*600 | 235*143*4.5mm | 222.72*125.28mm | 40pinLVDS | 800 | 500 | -20~70℃ | -30~80℃ | |
| 11 | 10.1" | HC101IK50045-B74 | IPS | 1024*600 | 235*143*4.5mm | 222.72*125.28mm | 60pinLVDS | 1000 | 500 | -20~70℃ | -30~80℃ | |
| 12 | 10.1" | HC101IK65044-E16 | IPS | 1024*600 | 235*143*4.5mm | 222.72*125.28mm | 60pinLVDS | 1000 | 650 | -20~70℃ | -30~80℃ | |
| 13 | 10.1" | HC101IK50050-A85 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 40pinLVDS | 800 | 500 | -20~70℃ | -30~80℃ | |
| 14 | 10.1" | HC101IUA0046-F50 | IPS | 1280*720 | 234.96*142.96*4.6mm | 224.64*126.36mm | 50pinLVDS | 1000 | 1000 | -20~70℃ | -30~80℃ | |
| 15 | 10.1" | HC101IU80046-F50V.C | IPS | 1280*720 | 252.00*158.00*7.70mm | 224.64*126.36mm | 50pinLVDS | 1000 | 700 | -20~70℃ | -30~80℃ | |
| 16 | 10.1" | HC101I35025NB-V06 | IPS | 1280*800 |
|
216.96*135.6mm | 40pinLVDS | 800 | 350 | -20~70℃ | -30~80℃ | |
| 17 | 10.1" | HC101IP80025-A44 | IPS | 1280*800 | 229.46*149.10*2.51mm | 216.96*135.6mm | 40pinLVDS | 800 | 800 | -20~70℃ | -30~80℃ | |
| 18 | 10.1" | HC101IP30025-75V02 | IPS | 1280*800 | 229.46*149.10*2.51mm | 216.96*135.6mm | 40pinLVDS | 800 | 300 | -20~70℃ | -30~80℃ | |
| 19 | 10.1" | HC101IPA0050-A75-1 | IPS | 1280*800 | 229.46*149.10*4.70mm | 216.96*135.6mm | 40pinLVDS | 800 | 1000 | -20~70℃ | -30~80℃ | |
| 20 | 10.1" | HC101IP35048-A74V01 | IPS | 1280*800 | 229.46*149.10*4.8mm | 216.96*135.6mm | 40pinLVDS | 800 | 350 | -20~70℃ | -30~80℃ | |
| 21 | 10.1" | HC101IP65025-A16V01 | IPS | 1280*800 | 229.46*149.10*2.8mm | 216.96*135.6mm | 40pinLVDS | 800 | 650 | -20~70℃ | -30~80℃ | |
| 22 | 10.1" | HC101IP65025-A16 | IPS | 1280*800 | 229.06*148.70*2.80mm | 216.96*135.60mm | 40pinLVDS | 800 | 650 | -20~70℃ | -30~80℃ | |
| 23 | 10.1" | HC101IPA0025-A16 | IPS | 1280*800 | 229.06*148.70*2.51mm | 216.96*135.60mm | 40pinLVDS | 800 | 1000 | -20~70℃ | -30~80℃ | |
| 24 | 10.1" | HC101IP65025-A16V.C | IPS | 1280*800 | 229.26*148.70*4.55mm | 216.96*135.60mm | 40pinLVDS | 800 | 500 | -20~70℃ | -30~80℃ | |
| 25 | 10.1" | HC101IP65025-A17V01 | IPS | 1280*800 | 229.46*149.10*2.8mm | 216.96*135.60mm | 40pinLVDS | 800 | 650 | -20~70℃ | -30~80℃ | |
| 26 | 10.1" | HC101IP80025-A46 | IPS | 1280*800 | 229.06*149.1*2.5mm | 216.96*135.60mm | 40pinLVDS | 800 | 800 | -20~70℃ | -30~80℃ | |
| 27 | 10.1" | HC101IPA0047-F91V.C | IPS | 1280*800 | 232.45*152.60*6.75mm | 216.96*135.60mm | 40pinLVDS | 800 | 800 | -20~70℃ | -30~80℃ | |
| 28 | 10.1" | HC101IPA0048-A74V01 | IPS | 1280*800 | 229.46*149.10*4.70mm | 216.96*135.60mm | 40pinLVDS | 800 | 1000 | -20~70℃ | -30~80℃ | |
| 29 | 10.1" | HC101IP30025-C51V01 | IPS | 1280*800 | 229.46*149.10*4.70mm | 216.96*135.60mm | 40pinLVDS | 800 | 350 | -20~70℃ | -30~80℃ | |
| 30 | 10.1" | HC101IPA0048-A74 | IPS | 1280*800 | 229.46*149.10*4.8mm | 216.96*135.60mm | 40pinLVDS | 800 | 1000 | -20~70℃ | -30~80℃ | |
| 31 | 10.1" | HC101TK50050-D90 | IPS | 1024*600 | 235*143*5.0mm | 222.72*125.28mm | 40pinLVDS | 800 | 500 | -20~70℃ | -30~80℃ | |
| 32 | 10.1" | HC101IY23026-B65 | IPS | 800*1280 | 143*228.6*2.5mm | 135.36*216.58mm | 40pinMIPI | 1000 | 230 | -10~50℃ | -20~60℃ | |
| 33 | 10.1" | HC101IY30025-D81 | IPS | 800*1280 | 143*228.6*2.5mm | 135.36*216.58mm | 40pinMIPI | 1000 | 300 | -10~50℃ | -20~60℃ | |
| 34 | 10.1" | HC101IY55025-D81 | IPS | 800*1280 | 143.00*228.60*2.50mm | 135.36*216.58mm | 40pinMIPI | 1000 | 550 | -20~60℃ | -20~70℃ | |
| 35 | 10.1" | HC101IY40026-D25 | IPS | 800*1280 | 143.00*228.60*2.60mm | 135.36*216.58mm | 31pinMIPI | 1000 | 400 | -20~70℃ | -20~70℃ | |
| 36 | 10.1" | HC101IY40026-D25V.C | IPS | 800*1280 | 149.04*229.40*4.45mm | 135.36*216.58mm | 31pinMIPI | 1000 | 400 | -20~70℃ | -20~70℃ | |
| 37 | 10.1" | HC101IUA0059-F51 | IPS | 1280*720 | 234.9*143*5.9mm | 224.64*126.36mm | 50pinLVDS | 1000 | 1000 | -30~85℃ | -30~85℃ | |
| 38 | 10.1" | HC101IU40045-G03 | IPS | 1280*720 | 234.9*143*4.5mm | 224.64*126.36mm | 60pinLVDS | 1000 | 400 | -30~85℃ | -30~85℃ | |
| 39 | 10.1" | HC101IX25064-F13 | IPS | 440*1920 | 64.98*266.39*4.60mm | 57.95*252.86mm | 40pinMIPI | 1000 | 250 | -20~70℃ | -30~80℃ | |
| 40 | 10.1" | HC101IP80067-C35V.C | IPS | 1280*800 | 248.77*167.44*6.8mm | 216.96*135.60mm | 40pinLVDS | 800 | 800 | -20~70℃ | -30~80℃ | |
| 41 | 10.1" | HC101IY30025-D81V.C | IPS | 800*1280 | 164.43*254.40*4.58mm | 135.36*216.58mm | 40pinMIPI | 1000 | 300 | -20~70℃ | -30~80℃ | |
| 42 | 10.1" | HC101IZ30026-92 V.C | IPS | 1200*1920 | 164.43*254.40*4.58mm | 135.36*216.58mm | 40pinMIPI | 1000 | 280 | -10~60℃ | -10~60℃ | |
| 43 | 10.1" | HC101IZ30026-92V01 | IPS | 1200*1920 | 143*228.6*2.6mm | 135.36*216.58mm | 40pinMIPI | 1000 | 300 | -10~50℃ | -10~60℃ | |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
