Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC156IV30030-C60
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC156IV30030-C60 |
Size: |
15.6"(IPS) |
Display Type: |
IPS |
Resolution: |
1920*1080 |
Outline Dimension: |
350.16(W )*216(H)*3.05(T)mm |
Active Area: |
344.16(W)*193.59(H)mm |
Brightness: |
300cd/m2 |
Interface: |
30pinEDP |
Viewing Angle: |
89/89/89/89 |
Operation Temp.: |
0~50℃ |
Storage Temp.: |
-20~60℃ |
Contrast Ratio: |
1000 |
Aspect Rati16:9o: |
16:9 |
Application: |
Laptop And Home Automation. |
P/N: |
HC156IV30030-C60 |
Size: |
15.6"(IPS) |
Display Type: |
IPS |
Resolution: |
1920*1080 |
Outline Dimension: |
350.16(W )*216(H)*3.05(T)mm |
Active Area: |
344.16(W)*193.59(H)mm |
Brightness: |
300cd/m2 |
Interface: |
30pinEDP |
Viewing Angle: |
89/89/89/89 |
Operation Temp.: |
0~50℃ |
Storage Temp.: |
-20~60℃ |
Contrast Ratio: |
1000 |
Aspect Rati16:9o: |
16:9 |
Application: |
Laptop And Home Automation. |

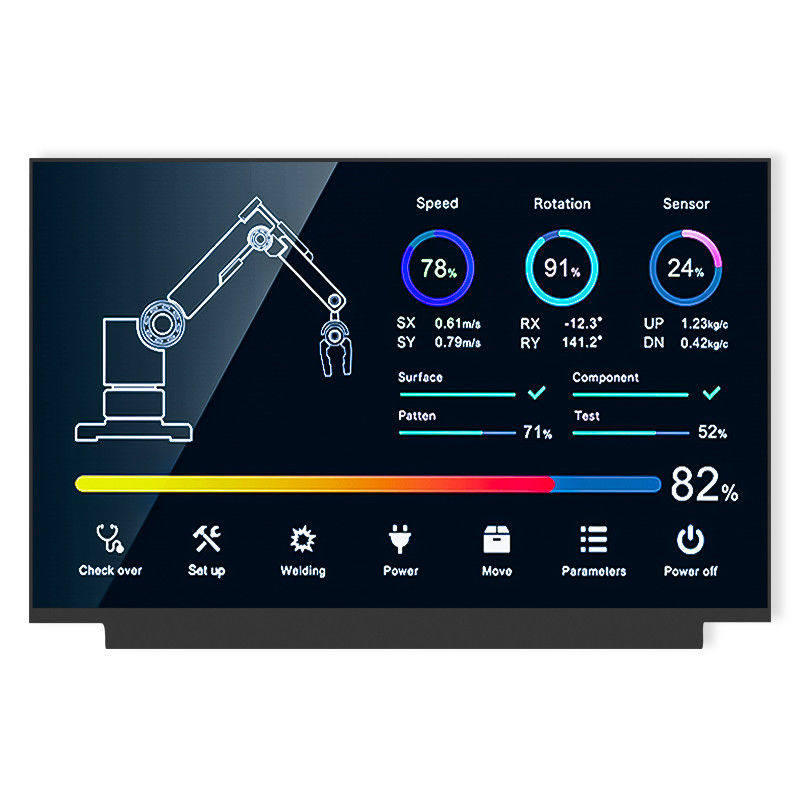

15.6 Inch TFT color LCD module for with 30pin EDP Interface and 1920*1080 Resolution
Product Description:
HC156IV30030-C60, a 15.6-inch large screen display with IPS display mode, boasts a high resolution of 1920*1080 pixels, showing a high quality image. It adopts a LED backlight design of 300nits and a contrast ratio of 1000:1, further ensuring the vibrant color and optimal screen brightness for indoor display. This 15.6-inch display possesses an outline dimension of 350.16mm*216.0mm*3.05mm and provides users with a rich active area of 344.16mm*193.59mm. Besides, the HC156IV30030-C60 is equipped with a 30pin EDP interface, which exhibits extensive compatibility and is capable of connecting with different systems or devices, enabling it to be widely used in the field of laptop and home automation.
General Specification:
| P/N | HC156IV30030-C60 |
| Size | 15.6inch |
| Display type |
Transmissive,Noramally Black
|
| Resolution | 1920*1080 |
| Outline Dimension(mm) | 350.16(W )*216(H)*3.05(T)mm |
| Active Area(mm) | 344.16(W)*193.59(H)mm |
| Brightness(cd/m²) | 300 |
| Viewing Angle(L/R/T/B) | 89/89/89/89 |
| Interface | 30pinEDP |
| Operation Temperature | 0~50℃ |
| Storge Temperature | -20~60℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 1000 |
| Application | Laptop and home automation. |
Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT |
|
Voltage for LED backlight
|
Vf | 26 | 29 | 30 | V |
|
Current for LED backlight
|
If | - | 102.5 | - | mA |
|
LED life time
|
- | 15000 | - | - | hrs |
15.6-inch lcd display series:
|
15.6-inch LCD Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 15.6" | HC156IV30030-C60 | IPS | 1920*1080 | 350.16*216.0*3.05mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | 0℃~50℃ | -20℃~60℃ |
| 2 | 15.6" | HC156IV30030-C60V01 | IPS | 1920*1080 | 359.5*223.75*3.0mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | -20~70℃ | -20℃~70℃ |
| 3 | 15.6" | HC156IV30030-C60V03 | IPS | 1920*1080 | 350.7*215.67*2.8mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | 0℃~50℃ | -20℃~60℃ |
| 4 | 15.6" | HC156IV50046-C60V04 | IPS | 1920*1080 | 359.94*222.32*5.5mm | 344.16*193.59mm | 30pin EDP | 1000 | 500 | -10℃~60℃ | -20℃~65℃ |
| 5 | 15.6" | HC156IV50032-C60V06 | IPS | 1920*1080 | 359.5*206.5*3.2mm | 344.16*193.59mm | 30pin EDP | 1000 | 500 | 0℃~50℃ | -20℃~60℃ |
| 6 | 15.6" | HC156IV30030-C60V07 | IPS | 1920*1080 | 350.7*215.67*2.6mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | 0℃~50℃ | -20℃~60℃ |
| 7 | 15.6" | HC156IV60061-N88 | IPS | 1024*600 | 360.1*212.55*6.05mm | 344.16*193.59mm | 40pinLVDS | 1200 | 600 | -20~80℃ | -30~85℃ |
| 8 | 15.6" | HC156IVA0073-N88H | IPS | 1920*1080 | 360.1*212.55*6.05mm | 344.16*193.59mm | 40pinLVDS | 1200 | 1000 | -30~80℃ | -30~85℃ |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
