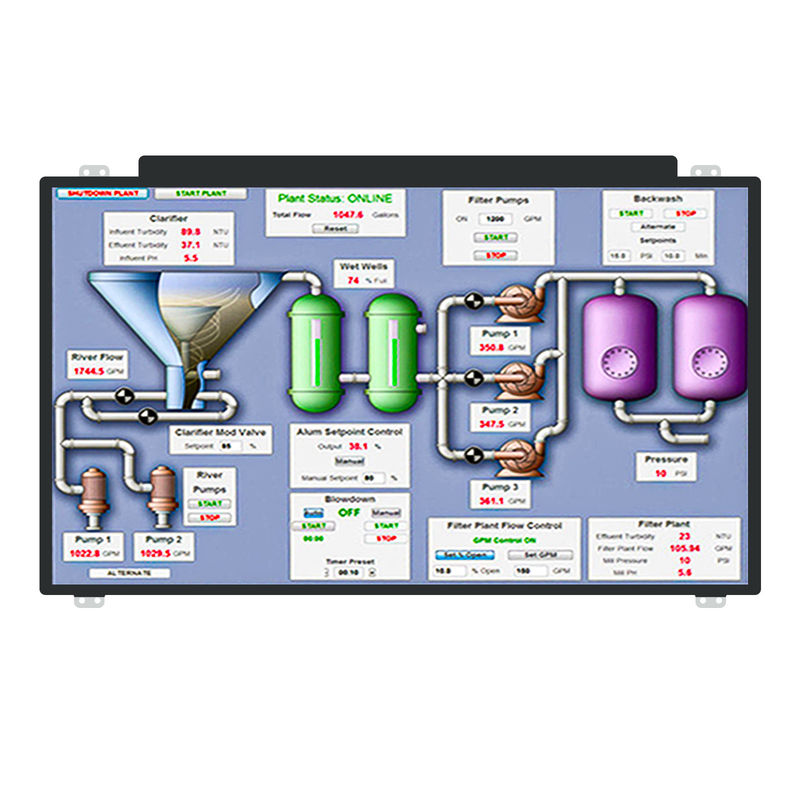

1920×1080 Transmissive 15.6Inch TFT LCD Module Display 300 Nits Brightness

15.6 Inch TFT LCD module display with 30pin EDP Interface and 300nits Brightness

Product Description:

HC156IV30030-C60V01 is an extraordinary 15.6-inch TFT LCD display with an interface of 30pin EDP, which is compatible with point of sales and measurement instrument. This display uses a high resolution of 1920*1080 pixels and IPS technology, providing users with sharp images and a ultra wide viewing angle of 89/89/89/89(L/R/T/B). The HC156IV30030-C60V01 can be used at temperatures from -20℃ to 70℃, maintaining normal operating status. With an outline dimension of 359.5mm*223.75mm*3.0mm, this display shows an active area of 344.16mm*193.59mm with a backlight of 300nits. Besides, the high contrast ratio of 1000:1 ensures a perfect balance between dark and light areas for excellent images.

General Specification:


Pin assignment:

Backlight Driving Conditions:

15.6-inch lcd display series:

Customization:



FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
