Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC156IVA0073-N88H
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC156IVA0073-N88H |
Size: |
15.6"(IPS) |
Display Type: |
IPS |
Resolution: |
1920*1080 |
Outline Dimension: |
360.1(W )*212.55(H)*6.05(T)mm |
Active Area: |
344.16(W)*193.59(H)mm |
Brightness: |
1000cd/m2 |
Interface: |
40pinLVDS |
Viewing Angle: |
89/89/89/89 |
Operation Temp.: |
-20~80℃ |
Storage Temp.: |
-30~85℃ |
Contrast Ratio: |
1200 |
Aspect Rati16:9o: |
16:9 |
Application: |
Central Information Display(CID), Entertainment Media, Navigator And Headrest Display. |
P/N: |
HC156IVA0073-N88H |
Size: |
15.6"(IPS) |
Display Type: |
IPS |
Resolution: |
1920*1080 |
Outline Dimension: |
360.1(W )*212.55(H)*6.05(T)mm |
Active Area: |
344.16(W)*193.59(H)mm |
Brightness: |
1000cd/m2 |
Interface: |
40pinLVDS |
Viewing Angle: |
89/89/89/89 |
Operation Temp.: |
-20~80℃ |
Storage Temp.: |
-30~85℃ |
Contrast Ratio: |
1200 |
Aspect Rati16:9o: |
16:9 |
Application: |
Central Information Display(CID), Entertainment Media, Navigator And Headrest Display. |

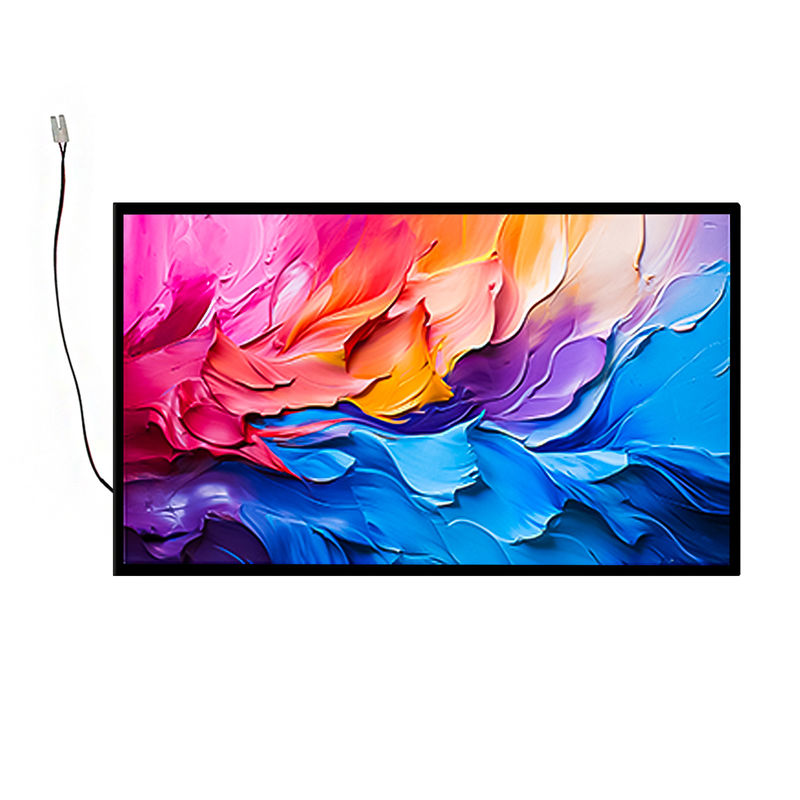

15.6 Inch TFT display screen with 1920*1080 Resolution and 40pin LVDS Interface
Product Description:
HC156IVA0073-N88H is a 15.6-inch display solution with IPS display mode that allows users to immerse themselves in the visual impact brought by the gorgeous images. It has an external dimension of 360.1mm*212.55mm*6.05mm, showing a display area of 344.16mm*193.59mm, which can be perfectly embedded in central information display(CID), entertainment media, navigator and headrest display. This display boasts a high resolution of 1920*1080 pixels, ensuring clear visual effects. And equipped with 1000nits LED backlight and 1200:1 contrast ratio, it can be operated in an outdoor setting or in direct sunlight. This 15.6-inch display possesses an interface of 40pin LVDS, a high-quality cable, minimizing signal loss and ensuring stable data transmission. With an operation temperature from -30℃ to 80℃, the HC156IVA0073-N88H is designed to be reliable and durable to meet the challenging environmental conditions.
General Specification:
| P/N | HC156IVA0073-N88H |
| Size | 15.6inch |
| Display type |
Transmissive
|
| Resolution | 1920*1080 |
| Outline Dimension(mm) | 360.1(W )*212.55(H)*6.05(T)mm |
| Active Area(mm) | 344.16(W)*193.59(H)mm |
| Brightness(cd/m²) | 1000 |
| Viewing Angle(L/R/T/B) | 89/89/89/89 |
| Interface | 40pinLVDS |
| Operation Temperature | -20~80℃ |
| Storge Temperature | -30~85℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 1200 |
| Application | Central information display(CID), entertainment media, navigator and headrest display. |
Pin assignment:
Product drawings:
15.6-inch lcd display series:
|
15.6-inch LCD Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 15.6" | HC156IV30030-C60 | IPS | 1920*1080 | 350.16*216.0*3.05mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | 0℃~50℃ | -20℃~60℃ |
| 2 | 15.6" | HC156IV30030-C60V01 | IPS | 1920*1080 | 359.5*223.75*3.0mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | -20~70℃ | -20℃~70℃ |
| 3 | 15.6" | HC156IV30030-C60V03 | IPS | 1920*1080 | 350.7*215.67*2.8mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | 0℃~50℃ | -20℃~60℃ |
| 4 | 15.6" | HC156IV50046-C60V04 | IPS | 1920*1080 | 359.94*222.32*5.5mm | 344.16*193.59mm | 30pin EDP | 1000 | 500 | -10℃~60℃ | -20℃~65℃ |
| 5 | 15.6" | HC156IV50032-C60V06 | IPS | 1920*1080 | 359.5*206.5*3.2mm | 344.16*193.59mm | 30pin EDP | 1000 | 500 | 0℃~50℃ | -20℃~60℃ |
| 6 | 15.6" | HC156IV30030-C60V07 | IPS | 1920*1080 | 350.7*215.67*2.6mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | 0℃~50℃ | -20℃~60℃ |
| 7 | 15.6" | HC156IV60061-N88 | IPS | 1024*600 | 360.1*212.55*6.05mm | 344.16*193.59mm | 40pinLVDS | 1200 | 600 | -20~80℃ | -30~85℃ |
| 8 | 15.6" | HC156IVA0073-N88H | IPS | 1920*1080 | 360.1*212.55*6.05mm | 344.16*193.59mm | 40pinLVDS | 1200 | 1000 | -30~80℃ | -30~85℃ |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
