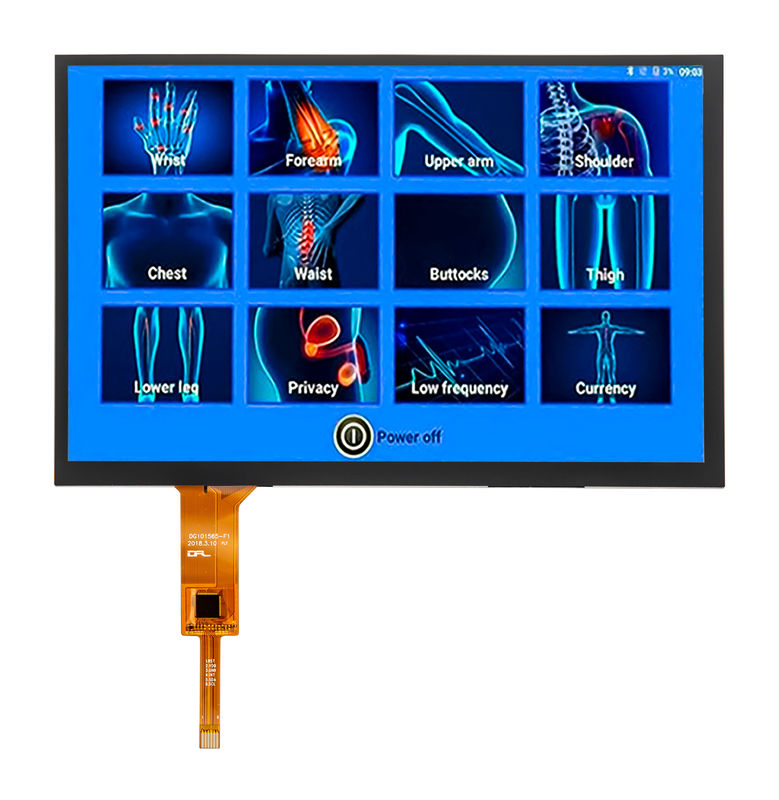

IPS Technology 10.1 Inch TFT LCD Display With 40pin LVDS Interface

Name: IPS Technology 10.1 Inch TFT LCD Display With 40pin LVDS Interface
Brand: Heng Cheng Electronics Technology (HK) Co.,Ltd
SKU: HC101IP65025-A16
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HETECH

Certification: ISO9001,ISO14001,ISO13485,IATF16949

Model Number: HC101IP65025-A16

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Delivery Time: 4-6weeks

Payment Terms: T/T

Supply Ability: 50K/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                LVDS Interface 10.1 inch tft display, 10.1 inch tft display 40pin, LVDS Interface 10.1 ips display


P/N:	HC101IP65025-A16	Size:	10.1"(IPS)
Display Type:	(IPS)	Resolution:	1280*800
Outline Dimension:	229.46(W )149.1(H)4.55(T)mm	Active Area:	216.96(W)*135.60(H)mm
Brightness:	650cd/m2	Interface:	40pinLVDS
Viewing Angle:	85/85/85/85	Operation Temp.:	-20~70℃
Storage Temp.:	-30~80℃	Contrast Ratio:	800
Aspect Rati16:9o:	16:10	Application:	Greenhouse Grow Light Controller

P/N:	HC101IP65025-A16
Size:	10.1"(IPS)
Display Type:	(IPS)
Resolution:	1280*800
Outline Dimension:	229.46(W )149.1(H)4.55(T)mm
Active Area:	216.96(W)*135.60(H)mm
Brightness:	650cd/m2
Interface:	40pinLVDS
Viewing Angle:	85/85/85/85
Operation Temp.:	-20~70℃
Storage Temp.:	-30~80℃
Contrast Ratio:	800
Aspect Rati16:9o:	16:10
Application:	Greenhouse Grow Light Controller

IPS Technology 10.1 Inch TFT LCD Display With 40pin LVDS Interface

10.1 inch TFT LCD Display with 800:1 Contrast Ratio and 40pin LVDS Interface

Product Description:

HC101IP65025-A16 is a 10.1-inch display that can withstand the temperatures from -20℃to 70℃ when operating. With the IPS technology and a bright 650 nits backlight, this 1280*800 pixels resolution display offers great visibility from a wide viewing angle of 85/85/85/85(L/R/T/B) both indoors and outdoors, and delivers excellent color reproduction and image consistency. The HC101IP65025-A16 has an outline dimension of 229.06mm*148.70mm*2.80mm, and provides a rich display area of 216.96mm*135.60mm. With suitable overall and display size, this display with 40pin LVDS interface is perfect for greenhouse grow light controller and other electronic equipment. Besides, its decent contrast ratio of 800:1 helps this display present images with sharper details and higher quality.

General Specification:

P/N	HC101IP65025-A16
Size	10.1inch
Display type	Transmissive,Normally Black
Resolution	1280*800
Outline Dimension(mm)	229.46(W )149.1(H)4.55(T)mm
Active Area(mm)	216.96(W)*135.60(H)mm
Brightness(cd/m²)	650
Viewing Angle(L/R/T/B)	85/85/85/85
Interface	40pinLVDS
Operation Temperature	-20~70℃
Storge Temperature	-30~80℃
Aspect ratio	16:10
Contrast ratio	800
Application	Greenhouse grow light controller

Pin assignment:

IPS Technology 10.1 Inch TFT LCD Display With 40pin LVDS Interface 0

10.1-inch lcd display series:

10.1-inch LCD Display Sizes

Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc.

No.

Size

Part No.

LCD type

Resolution

Outline dimension

Active area

Interface

Contrast ratio

Brightness

Operation temperature

Storage temperature

10.1"

HC101IK20050-A79

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

40pinLVDS

1000

200

-20~70℃

-30~80℃

10.1"

HC101IK25050-D59

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

20pinLVDS

1000

250

-20~70℃

-30~80℃

10.1"

HC101IK35050-A79

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

50pinRGB

1000

350

-20~70℃

-30~80℃

10.1"

HC101IK50050-A79

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

50pinRGB

1000

500

-20~70℃

-30~80℃

10.1"

HC101IKA0050-A79

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

50pinRGB

1000

-20~70℃

-30~80℃

10.1"

HC101IKA0050-F45

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

50pinRGB

1000

-20~70℃

-30~80℃

10.1"

HC101IK50050-A86

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

40pinLVDS

1000

500

-20~70℃

-30~80℃

10.1"

HC101IK50050-A86H

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

40pinLVDS

1000

500

-30~80℃

-40~85℃

10.1"

HC101IK25045-C36

IPS

1024*600

235*143*4.5mm

222.72*125.28mm

40pinLVDS

1000

250

-20~70℃

-30~80℃

10.1"

HC101IK50045-C36

IPS

1024*600

235*143*4.5mm

222.72*125.28mm

40pinLVDS

800

500

-20~70℃

-30~80℃

10.1"

HC101IK50045-B74

IPS

1024*600

235*143*4.5mm

222.72*125.28mm

60pinLVDS

1000

500

-20~70℃

-30~80℃

10.1"

HC101IK65044-E16

IPS

1024*600

235*143*4.5mm

222.72*125.28mm

60pinLVDS

1000

650

-20~70℃

-30~80℃

10.1"

HC101IK50050-A85

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

40pinLVDS

800

500

-20~70℃

-30~80℃

10.1"

HC101IUA0046-F50

IPS

1280*720

234.96*142.96*4.6mm

224.64*126.36mm

50pinLVDS

1000

-20~70℃

-30~80℃

10.1"

HC101IU80046-F50V.C

IPS

1280*720

252.00*158.00*7.70mm

224.64*126.36mm

50pinLVDS

1000

700

-20~70℃

-30~80℃

10.1"

HC101I35025NB-V06

IPS

1280*800

229.46*149.10*2.5mm

216.96*135.6mm

40pinLVDS

800

350

-20~70℃

-30~80℃

10.1"

HC101IP80025-A44

IPS

1280*800

229.46*149.10*2.51mm

216.96*135.6mm

40pinLVDS

800

-20~70℃

-30~80℃

10.1"

HC101IP30025-75V02

IPS

1280*800

229.46*149.10*2.51mm

216.96*135.6mm

40pinLVDS

800

300

-20~70℃

-30~80℃

10.1"

HC101IPA0050-A75-1

IPS

1280*800

229.46*149.10*4.70mm

216.96*135.6mm

40pinLVDS

800

1000

-20~70℃

-30~80℃

10.1"

HC101IP35048-A74V01

IPS

1280*800

229.46*149.10*4.8mm

216.96*135.6mm

40pinLVDS

800

350

-20~70℃

-30~80℃

10.1"

HC101IP65025-A16V01

IPS

1280*800

229.46*149.10*2.8mm

216.96*135.6mm

40pinLVDS

800

650

-20~70℃

-30~80℃

10.1"

HC101IP65025-A16

IPS

1280*800

229.06*148.70*2.80mm

216.96*135.60mm

40pinLVDS

800

650

-20~70℃

-30~80℃

10.1"

HC101IPA0025-A16

IPS

1280*800

229.06*148.70*2.51mm

216.96*135.60mm

40pinLVDS

800

1000

-20~70℃

-30~80℃

10.1"

HC101IP65025-A16V.C

IPS

1280*800

229.26*148.70*4.55mm

216.96*135.60mm

40pinLVDS

800

500

-20~70℃

-30~80℃

10.1"

HC101IP65025-A17V01

IPS

1280*800

229.46*149.10*2.8mm

216.96*135.60mm

40pinLVDS

800

650

-20~70℃

-30~80℃

10.1"

HC101IP80025-A46

IPS

1280*800

229.06*149.1*2.5mm

216.96*135.60mm

40pinLVDS

800

-20~70℃

-30~80℃

10.1"

HC101IPA0047-F91V.C

IPS

1280*800

232.45*152.60*6.75mm

216.96*135.60mm

40pinLVDS

800

-20~70℃

-30~80℃

10.1"

HC101IPA0048-A74V01

IPS

1280*800

229.46*149.10*4.70mm

216.96*135.60mm

40pinLVDS

800

1000

-20~70℃

-30~80℃

10.1"

HC101IP30025-C51V01

IPS

1280*800

229.46*149.10*4.70mm

216.96*135.60mm

40pinLVDS

800

350

-20~70℃

-30~80℃

10.1"

HC101IPA0048-A74

IPS

1280*800

229.46*149.10*4.8mm

216.96*135.60mm

40pinLVDS

800

1000

-20~70℃

-30~80℃

10.1"

HC101TK50050-D90

IPS

1024*600

235*143*5.0mm

222.72*125.28mm

40pinLVDS

800

500

-20~70℃

-30~80℃

10.1"

HC101IY23026-B65

IPS

800*1280

143*228.6*2.5mm

135.36*216.58mm

40pinMIPI

1000

230

-10~50℃

-20~60℃

10.1"

HC101IY30025-D81

IPS

800*1280

143*228.6*2.5mm

135.36*216.58mm

40pinMIPI

1000

300

-10~50℃

-20~60℃

10.1"

HC101IY55025-D81

IPS

800*1280

143.00*228.60*2.50mm

135.36*216.58mm

40pinMIPI

1000

550

-20~60℃

-20~70℃

10.1"

HC101IY40026-D25

IPS

800*1280

143.00*228.60*2.60mm

135.36*216.58mm

31pinMIPI

1000

400

-20~70℃

10.1"

HC101IY40026-D25V.C

IPS

800*1280

149.04*229.40*4.45mm

135.36*216.58mm

31pinMIPI

1000

400

-20~70℃

10.1"

HC101IUA0059-F51

IPS

1280*720

234.9*143*5.9mm

224.64*126.36mm

50pinLVDS

1000

-30~85℃

10.1"

HC101IU40045-G03

IPS

1280*720

234.9*143*4.5mm

224.64*126.36mm

60pinLVDS

1000

400

-30~85℃

10.1"

HC101IX25064-F13

IPS

440*1920

64.98*266.39*4.60mm

57.95*252.86mm

40pinMIPI

1000

250

-20~70℃

-30~80℃

10.1"

HC101IP80067-C35V.C

IPS

1280*800

248.77*167.44*6.8mm

216.96*135.60mm

40pinLVDS

800

-20~70℃

-30~80℃

10.1"

HC101IY30025-D81V.C

IPS

800*1280

164.43*254.40*4.58mm

135.36*216.58mm

40pinMIPI

1000

300

-20~70℃

-30~80℃

10.1"

HC101IZ30026-92 V.C

IPS

1200*1920

164.43*254.40*4.58mm

135.36*216.58mm

40pinMIPI

1000

280

-10~60℃

10.1"

HC101IZ30026-92V01

IPS

1200*1920

143*228.6*2.6mm

135.36*216.58mm

40pinMIPI

1000

300

-10~50℃

-10~60℃

Customization:

FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
