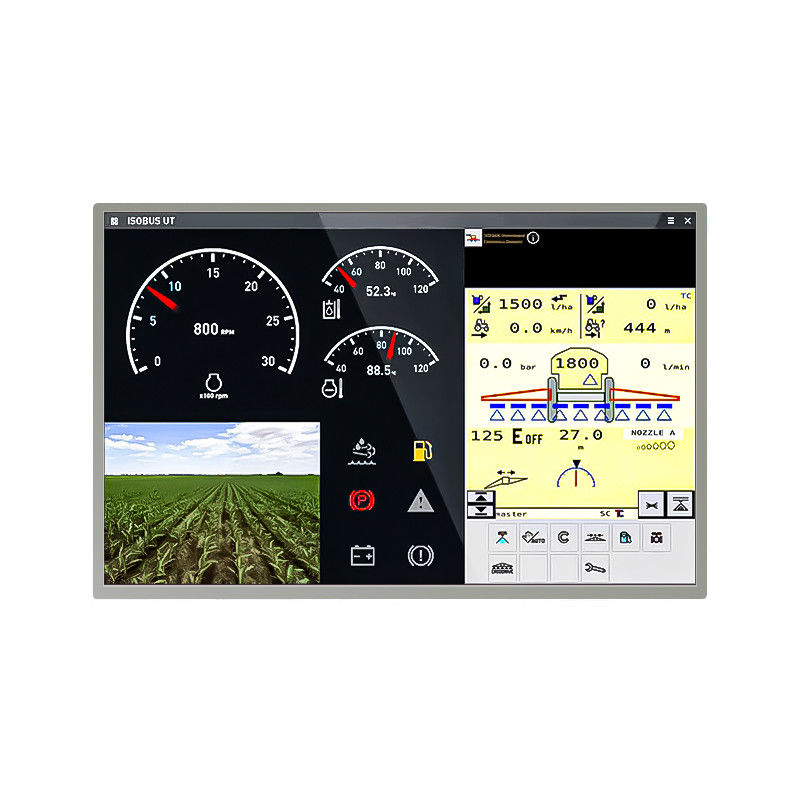

1280*800 12.1'' LCD Panel High Brightness TFT Display 1000nit Brightness

12.1 Inch high brightness TFT display with IPS Technology and 1000nit Brightness

Product Description:

HC121IPA00A0-F74 has a resolution of 1280*800 pixels and a wide operation temperature range of -30℃ to 80℃, featuring delicate images, excellent reliability and long service life. This 12.1-inch display utilizes IPS technology to achieve accurate color reproduction for a standout visual effect and allows an ultra wide viewing angle of 89/89/89/89(L/R/T/B). With a compact frame of 278.00mm*184.00mm*10.00mm, this display shows a rich active area of 264.12mm*166.20mm, which is super fit for veterinary B-ultrasound machine. Built-in LED backlight with up to 1000nit brightness and a contrast ratio of 1000:1 makes the images displayed on this display colorful and clearly readable even in direct sunlight. Furthermore, the interface of the HC121IPA00A0-F74 is designed into 30pin LVDS, which supports efficient data transmission and low power consumption.

General Specification:


Pin assignment:

Product drawings:

12.1-inch lcd display series:

Customization:



FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
