Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC128IX60065-G17
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC128IX60065-G17 |
Size: |
12.8"(IPS) |
Display Type: |
(IPS) |
Resolution: |
1920*1080 |
Outline Dimension: |
294.4(W )*175.0(H)*6.5(T)mm |
Active Area: |
283.392(W)*159.408(H)mm |
Brightness: |
600cd/m2 |
Interface: |
50pinLVDS |
Viewing Angle: |
85/85/85/85 |
Operation Temp.: |
-30~85℃ |
Storage Temp.: |
-40~90℃ |
Contrast Ratio: |
1500 |
Aspect Rati16:9o: |
16:9 |
Application: |
Central Information Display, Entertainment Media, Navigator And Headrest Display. |
P/N: |
HC128IX60065-G17 |
Size: |
12.8"(IPS) |
Display Type: |
(IPS) |
Resolution: |
1920*1080 |
Outline Dimension: |
294.4(W )*175.0(H)*6.5(T)mm |
Active Area: |
283.392(W)*159.408(H)mm |
Brightness: |
600cd/m2 |
Interface: |
50pinLVDS |
Viewing Angle: |
85/85/85/85 |
Operation Temp.: |
-30~85℃ |
Storage Temp.: |
-40~90℃ |
Contrast Ratio: |
1500 |
Aspect Rati16:9o: |
16:9 |
Application: |
Central Information Display, Entertainment Media, Navigator And Headrest Display. |
Product Description:

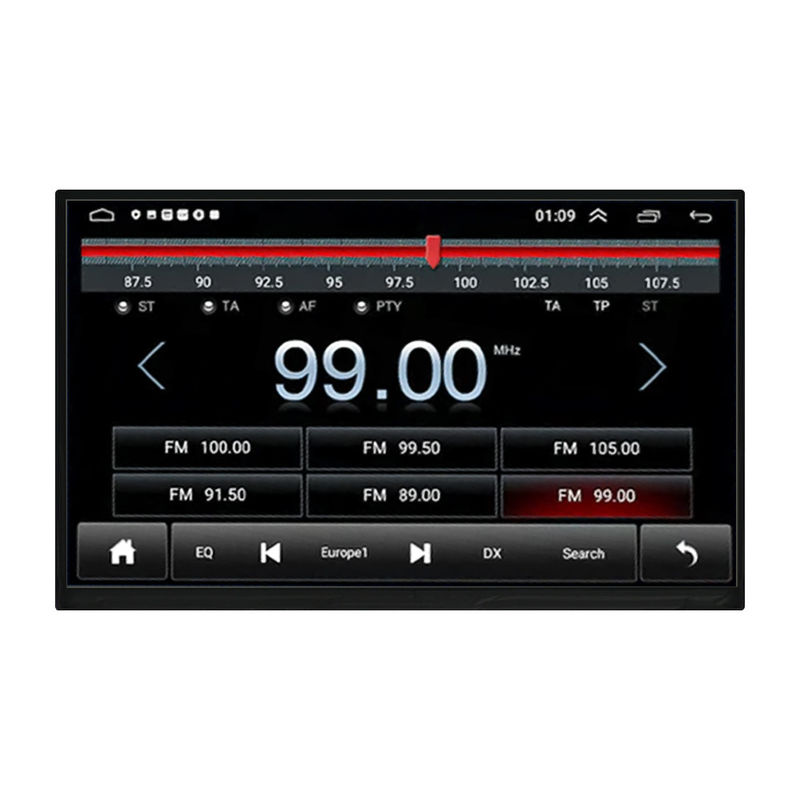

HC128IX60065-G17 is a 12.8-inch display with an outline dimension of 294.40mm*175.00mm*6.50mm. It has several functional parameters that can be modified and adjusted according to customer specifications, making it an universal choice for a variety of applications. After receiving the signal through the interface of 50pin LVDS, this display can produce sharp images with a high resolution of 1920*1080 pixels. With a brightness of 600nits and a high contrast ratio of 1500:1, this display features brilliant colors and can be used outdoors. The HC128IX60065-G17 employs IPS display mode and has an optimal viewing angle of 85/85/85/85(L/R/T/B). In addition, this display can operate steadily within a temperature range of -30℃ to 85℃, which is very suitable for applications that need to operate in extreme environmental conditions, for example, central information display, entertainment media, navigator and headrest display.
General Specification:
| P/N | HC128IX60065-G17 |
| Size | 12.8inch |
| Display type |
Normally Black
|
| Resolution | 1024*768 |
| Outline Dimension(mm) | 294.4(W )*175.0(H)*6.5(T)mm |
| Active Area(mm) | 283.392(W)*159.408(H)mm |
| Brightness(cd/m²) | 600 |
| Viewing Angle(L/R/T/B) | 85/85/85/85 |
| Interface | 50pinLVDS |
| Operation Temperature | -30~85℃ |
| Storge Temperature | -40~90℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 1500 |
| Application | Central information display, entertainment media, navigator and headrest display. |
Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT |
|
Voltage for LED backlight
|
Vf | - | 380 | - | V |
|
Current for LED backlight
|
If | - | 38.4 | 40.8 | mA |
|
LED life time
|
- | 30000 | - | - | hrs |
Product drawings:
12.1-inch lcd display series:
|
12.1-inch LCD Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 12.1" | HC121IPA00A0-F74 | IPS | 1280*800 | 278.00*184.00*10.00mm | 264.12*166.20mm | 30pinLVDS | 1000 | 1000 | -30~80℃ | -30~85℃ |
| 2 | 12.1" | HC121IM50075-B25 | IPS | 1024*768 | 260.50*204.00*8.60mm | 245.76*184.32mm | 20pinLVDS | 1000 | 500 | -20~70℃ | -30~80℃ |
| 3 | 12.8" | HC128IX60065-G17 | IPS | 1920*1080 | 294.40*175.00*6.50mm | 283.39*159.40mm | 50pinLVDS | 1500 | 600 | -30~85℃ | -40~90℃ |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
