Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC080TH25055-97V02
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC080TH25055-97V02 |
Size: |
8"(TN) |
Display Type: |
(TN) |
Resolution: |
800*600 |
Outline Dimension: |
183(W )*141(H)*5.5(T)mm |
Active Area: |
162(W)*121.5(H)mm |
Brightness: |
250cd/m2 |
Interface: |
50pinRGB |
Operation Temp.: |
-10~60℃ |
Storage Temp.: |
-20~70℃ |
Contrast Ratio: |
500 |
P/N: |
HC080TH25055-97V02 |
Size: |
8"(TN) |
Display Type: |
(TN) |
Resolution: |
800*600 |
Outline Dimension: |
183(W )*141(H)*5.5(T)mm |
Active Area: |
162(W)*121.5(H)mm |
Brightness: |
250cd/m2 |
Interface: |
50pinRGB |
Operation Temp.: |
-10~60℃ |
Storage Temp.: |
-20~70℃ |
Contrast Ratio: |
500 |
Product Description:

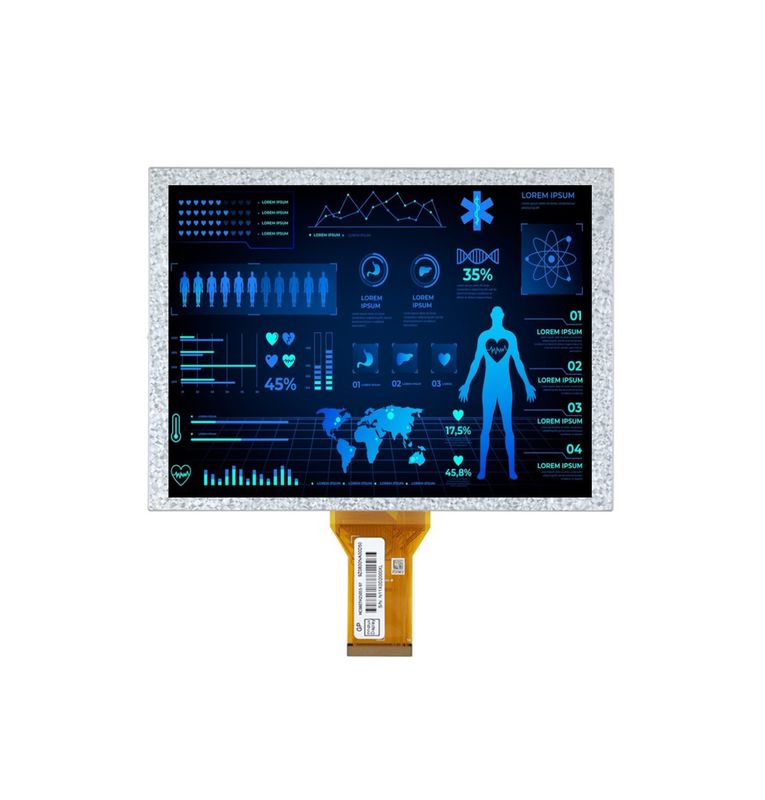

HC080TH25055-97V02 is a 8-inch TN display with luminance of 250 nits, extensively used in medical equipment, such as patient monitors. Encased within a frame of 183.00mm*141.00mm*5.50mm, this display shows clear and high-quality image on the screen that contains 800*600 pixels. With a contrast ratio of 500:1, details in shadows are more visible, making the image appear sharper and more realistic. Moreover, the HC080TH25055-97V02 features 50pin RGB interface and is certified with RoHS, complying with environmental and safety standards. And it is designed to operate in a wide temperature range of -20℃ to 70℃, ensuring its durability and reliability.
General Specification:
| P/N | HC080TH25055-97V02 |
| Size | 8inch |
| Display type |
Normally White
|
| Resolution | 800*480 |
| Outline Dimension(mm) | 183(W )*141(H)*5.5(T)mm |
| Active Area(mm) | 162(W)*121.5(H)mm |
| Brightness(cd/m²) | 250 |
| Viewing Angle(L/R/T/B) | 70/70/50/70 |
| Aspect ratio | 4:3 |
| Contrast ratio | 500 |
| Application | Patient monitors |
Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT |
|
Voltage for LED backlight
|
Vf | 8.1 | 9.6 | 10.8 | V |
|
Current for LED backlight
|
If | - | 160 | - | mA |
|
LED life time
|
- | 20000 | - | - | hrs |
Product drawings:
8-inch lcd display series:
|
8-inch LCD Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 8" | HC080IM30025-A0 | IPS | 1024*768 | 174*136*2.5mm | 162.05*121.54mm | 40pinRGB | 800 | 300 | -20~50℃ | -20~60℃ |
| 2 | 8" | HC080IM25055-99 | IPS | 1024*768 | 183*141*5.5mm | 162.05*121.54mm | 40pinLVDS | 800 | 250 | -20~70℃ | -30~80℃ |
| 3 | 8" | HC080IM30025-A0V01 | IPS | 1024*768 | 174*136*2.5mm | 162.05*121.54mm | 40pinRGB | 800 | 300 | -20~50℃ | -20~60℃ |
| 4 | 8" | HC080IM30025-A2 | IPS | 1024*768 | 174*136*2.5mm | 162.05*121.54mm | 40pinRGB | 800 | 300 | -20~50℃ | -20~60℃ |
| 5 | 8" | HC080IM30025-A2V01 | IPS | 1024*768 | 174*136*2.5mm | 162.05*121.54mm | 40pinRGB | 800 | 300 | -20~70℃ | -30~80℃ |
| 6 | 8" | HC080IY28026-B30 | IPS | 800*1280 | 114.62*184.124*2.5mm | 107.64*172.2mm | 30pinMIPI | 900 | 280 | -10~50℃ | -20~60℃ |
| 7 | 8" | HC080IY60026-B30V.C | IPS | 800*1280 | 127.64*197.31*4.70mm | 107.64*172.22mm | 30pinMIPI | 900 | 600 | -10~50℃ | -20~60℃ |
| 8 | 8" | HC080IU68064-A13V.G | IPS | 1280*720 | 192.80*116.90*8.40mm | 176.64*99.36mm | 30pinLVDS | 900 | 680 | -30~85℃ | -40-90℃ |
| 9 | 8" | HC080TG40064-52V01 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 400 | -20~70℃ | -30-80℃ |
| 10 | 8" | HC080TG40064-52 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 400 | -20~70℃ | -30-80℃ |
| 11 | 8" | HC080TG36078-52V.1 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 360 | -20~70℃ | -30-80℃ |
| 12 | 8" | HC080TG50064-54V.C | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 450 | -20~70℃ | -30-80℃ |
| 13 | 8" | HC080TG60064-A71 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 600 | -20~70℃ | -30-80℃ |
| 14 | 8" | HC080TG45064-D01 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 60pinRGB | 500 | 450 | -20~70℃ | -30-80℃ |
| 15 | 8" | HC080TGA0064-54 | TN | 800*480 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 800 | 250 | -20~70℃ | -30-80℃ |
| 16 | 8" | HC080TG80064-54 | TN | 1024*600 | 192.80*116.90*6.40mm | 176.64*99.36mm | 50pinRGB | 500 | 800 | -20~70℃ | -30-80℃ |
| 17 | 8" | HC080TH25055-97V02 | TN | 800*600 | 181*143*5.5mm | 162*121.5mm | 50pinRGB | 1000 | 250 | -20~70℃ | --30-80℃ |
| 18 | 8" | HC080TH25055-97 | TN | 800*600 | 183*141*5.5mm | 162*121.5mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 19 | 8" | HC080TH60055- 97V02 | TN | 800*600 | 183*141*5.5mm | 162*121.5mm | 50pinRGB | 500 | 600 | -20~70℃ | -30~80℃ |
| 20 | 8" | HC080THA0055-97 | TN | 800*600 | 183*141*5.5mm | 162*121.5mm | 50pinRGB | 500 | 1000 | -20~70℃ | -30~80℃ |
| 21 | 8" | HC080TH25055-97V03 | TN | 800*600 | 181*143*5.5mm | 162*121.5mm | 50pinRGB | 1000 | 250 | -20~70℃ | -30~80℃ |
| 22 | 8" | HC080TH30054-C03V01 | TN | 800*600 | 181*143*5.5mm | 162*121.5mm | 50pinRGB | 1000 | 300 | -20~70℃ | -30~80℃ |
| 23 | 8" | HC080IM30025-A2V.C | IPS | 1024*768 | 191.50*148.75*5.82mm | 162.05*121.54mm | 40pinLVDS | 800 | 250 | -20~70℃ | -30~80℃ |
| 24 | 8" | HC080TH50055-97V02 | TN | 800*600 | 181*143*5.5mm | 162*121.5mm | 50pinRGB | 1000 | 500 | -20~70℃ | -30~80℃ |
| 25 | 8" | HC080TH80055-97 | TN | 800*600 | 181*143*5.5mm | 162*121.5mm | 50pinRGB | 1000 | 800 | -20~70℃ | -30~80℃ |
| 26 | 8" | HC080TK40064-B35 | TN | 1024*600 | 192.8*116.9*6.4mm | 176.64*99.36mm | 40pinLVDS | 700 | 400 | -30~80℃ | -30~80℃ |
