Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC121IPA00A0-F74
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC121IPA00A0-F74 |
Size: |
12.1"(IPS) |
Resolution: |
1280*800 |
Outline Dimension: |
278(W )*184(H)*10(T)mm |
Active Area: |
261.12(W)*163.2(H)mm |
Brightness: |
1000cd/m2 |
Interface: |
30pinLVDS |
Operation Temp.: |
-30~80℃ |
Storage Temp.: |
-30~85℃ |
Contrast Ratio: |
1000 |
P/N: |
HC121IPA00A0-F74 |
Size: |
12.1"(IPS) |
Resolution: |
1280*800 |
Outline Dimension: |
278(W )*184(H)*10(T)mm |
Active Area: |
261.12(W)*163.2(H)mm |
Brightness: |
1000cd/m2 |
Interface: |
30pinLVDS |
Operation Temp.: |
-30~80℃ |
Storage Temp.: |
-30~85℃ |
Contrast Ratio: |
1000 |
Product Description:

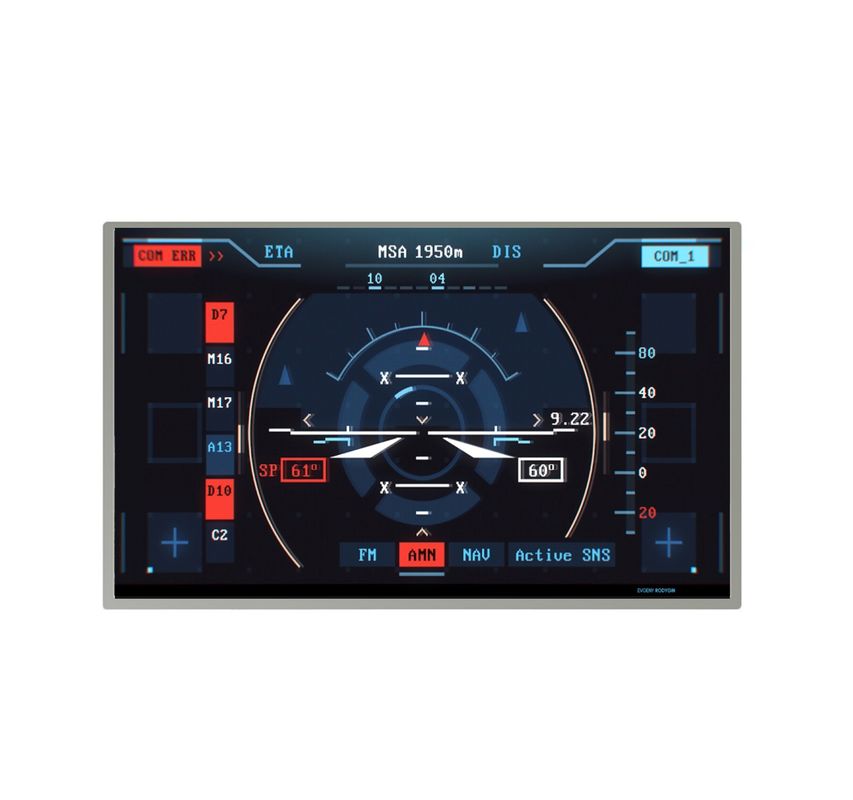

HC121IPA00A0-F74 is a relatively common display in the industry field, which has a 12.1-inch display area and a high resolution of 1280*800 pixels. It can operate at temperatures from -30℃ to 80℃, featuring excellent reliability and long service life. This 12.1-inch display utilizes IPS technology to achieve accurate color reproduction for a standout visual effect and allows for an ultra wide viewing angle of 89/89/89/89(L/R/T/B). The built-in LED backlight with up to 1000nit brightness and a contrast ratio of 1000:1 make the images displayed on this display colorful and clearly readable even in direct sunlight. Its outline dimension of 278.00mm*184.00mm*10.00mm also enables it to be applied to veterinary B-ultrasound machine. In addition, the interface of the HC121IPA00A0-F74 is designed into 30pin LVDS, which supports efficient data transmission and low power consumption.
General Specification:
| P/N | HC121IPA00A0-F74 |
| Size | 12.1inch |
| Display type |
Transmissive,Normally Black
|
| Resolution | 1280*800 |
| Outline Dimension(mm) | 278(W )*184(H)*10(T)mm |
| Active Area(mm) | 261.12(W)*163.2(H)mm |
| Brightness(cd/m²) | 1000 |
| Viewing Angle(L/R/T/B) | 89/89/89/89 |
| Interface | 30pinLVDS |
| Aspect ratio | 16:10 |
| Contrast ratio | 1000 |
| Application | Veterinary B-ultrasound machine |
Pin assignment:
Product drawings:
12.1-inch lcd display series:
|
12.1-inch LCD Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 12.1" | HC121IPA00A0-F74 | IPS | 1280*800 | 278.00*184.00*10.00mm | 264.12*166.20mm | 30pinLVDS | 1000 | 1000 | -30~80℃ | -30~85℃ |
| 2 | 12.1" | HC121IM50075-B25 | IPS | 1024*768 | 260.50*204.00*8.60mm | 245.76*184.32mm | 20pinLVDS | 1000 | 500 | -20~70℃ | -30~80℃ |
| 3 | 12.8" | HC128IX60065-G17 | IPS | 1920*1080 | 294.40*175.00*6.50mm | 283.39*159.40mm | 50pinLVDS | 1500 | 600 | -30~85℃ | -40~90℃ |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
