Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC035IF30033-F08V.1
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC035IF30033-F08V.1 |
Size: |
3.5"(IPS) |
Display Type: |
(IPS) |
Resolution: |
640*480 |
Outline Dimension: |
76.84(W )*63.84(H)*4.36(T)mm |
Active Area: |
70.08(W)*52.56(H)mm |
Brightness: |
300cd/m2 |
Interface: |
54pinRGB |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
800 |
P/N: |
HC035IF30033-F08V.1 |
Size: |
3.5"(IPS) |
Display Type: |
(IPS) |
Resolution: |
640*480 |
Outline Dimension: |
76.84(W )*63.84(H)*4.36(T)mm |
Active Area: |
70.08(W)*52.56(H)mm |
Brightness: |
300cd/m2 |
Interface: |
54pinRGB |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
800 |
Product Description:

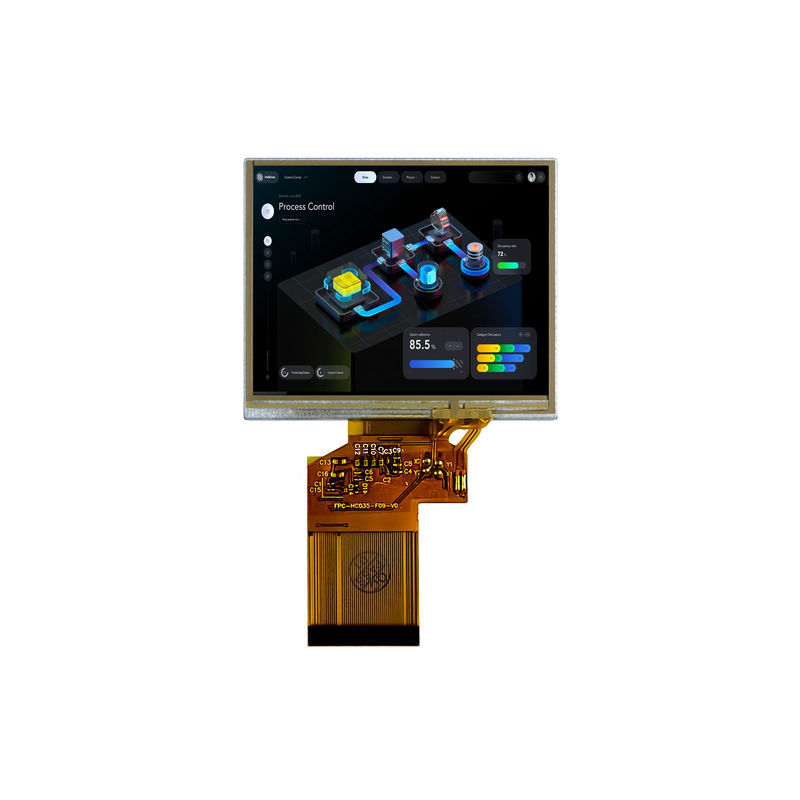

HC035IF30033-F08V.1 is a 3.5-inch IPS display with an interface of 54pin RGB, which can be connected to retro handheld game console and handheld video laryngoscope. It includes a resistive touch panel that is ideal for rugged environments and applications where precise input is needed with non-conductive tools. With a resolution of 640*480 pixels, this display shows terrific color performance. Owing to the 300 nits brightness and 800:1 contrast ratio, users can enjoy a super comfortable visual experience. This 3.5-inch display with an outline dimension of 76.84mm*63.84mm*4.36mm supports the operation temperature from -20℃ to 70℃. In an environment with dramatic temperature changes, HC035IF30033-F08V.1 can still quickly adapt to temperature changes without delay and system breakdown, providing users with a durable and reliable display solution.
General Specification:
| P/N |
HC035IF30033-F08V.1
|
| Size | 3.5inch |
| Display type |
Normally Black / Landscape
|
| Resolution | 640*480 |
| Outline Dimension(mm) | 76.84(W )*63.84(H)*4.36(T)mm |
| Active Area(mm) | 70.08(W)*52.56(H)mm |
| Viewing Angle(L/R/T/B) | 85/85/85/85 |
| Interface | 54pinRGB |
| Aspect ratio | 4:3 |
| Application | retro handheld game console and handheld video laryngoscope |
Pin assignment:
Electrical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition |
| Supply Voltage | Vf | - | 19.2 | 19.8 | V | If=20mA |
| Supply Current | If | - | 20 | 25 | mA | - |
| Life Time | - | 20000 | - | - | hrs | If=20mA |
Product drawings:
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
