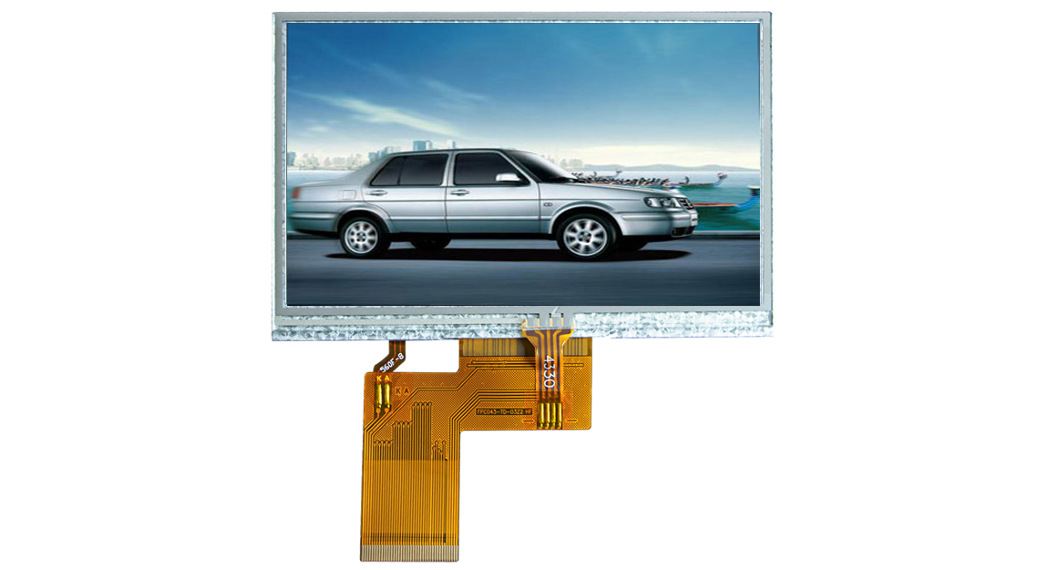

4.3 inch lcd display 480*272 Resolution resistive touch panel

Name: 4.3 inch lcd display 480*272 Resolution resistive touch panel
Brand: Heng Cheng Electronics Technology (HK) Co.,Ltd
SKU: HC043TE30040-B80V.1
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HETECH

Certification: ISO9001,ISO14001,ISO13485,IATF16949

Model Number: HC043TE30040-B80V.1

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Delivery Time: 4-6weeks

Payment Terms: T/T

Supply Ability: 50K/month

Get Best Price

Product Details

Product Description

Highlight:

P/N:	HC043TE30040-B80V.1	Size:	4.3"(TN)
Display Type:	(TN)	Resolution:	480*272
Outline Dimension:	105.5(W )67.2(H)4.05(T)mm	Active Area:	95.04(W)*53.856(H)mm
Brightness:	300cd/m2	Interface:	40pinRGB
Viewing Angle:	70/70/50/70	Operation Temp.:	-20~70℃
Storage Temp.:	-30~80℃	Contrast Ratio:	500
Aspect Rati16:9o:	16:9	Application:	Digital Film And Slide Scanners, Automotive Monitors, Chemical Analyzers And Automotive Diagnostic Tools.

P/N:	HC043TE30040-B80V.1
Size:	4.3"(TN)
Display Type:	(TN)
Resolution:	480*272
Outline Dimension:	105.5(W )67.2(H)4.05(T)mm
Active Area:	95.04(W)*53.856(H)mm
Brightness:	300cd/m2
Interface:	40pinRGB
Viewing Angle:	70/70/50/70
Operation Temp.:	-20~70℃
Storage Temp.:	-30~80℃
Contrast Ratio:	500
Aspect Rati16:9o:	16:9
Application:	Digital Film And Slide Scanners, Automotive Monitors, Chemical Analyzers And Automotive Diagnostic Tools.

4.3 inch lcd display 480*272 Resolution resistive touch panel

4.3 Inch LCD touch screen display for Automotive Monitors with 500:1 Contrast Ratio

Product Description:

HC043TE30040-B80V.1 is a 4.3-inch TN display featuring a resistive touch panel. With its 480x272 resolution and 300 nits brightness, it delivers crisp and clear visuals for applications like digital film scanners, car monitors, or automotive diagnostic tools and chemical analyzers. It is technologically equipped with the 40-pin RGB interface which can ensure stable connectivity and data transmission. Also, this display has an outline dimension of 105.5mmx67.2mm*4.05mm and shows an active area of 95.04mm*53.856mm. Its 500:1 contrast and responsive touch layer prioritize accuracy and durability over flashy specs.

General Specification:

P/N	HC043TE30040-B80V.1
Size	4.3inch
Display type	Normally White, Transmissive
Resolution	480*272
Outline Dimension(mm)	105.5(W )67.2(H)4.05(T)mm
Active Area(mm)	95.04(W)*53.856(H)mm
Brightness(cd/m²)	300
Viewing Angle(L/R/T/B)	70/70/50/70
Interface	40pinRGB
Operation Temperature	-20~70℃
Storge Temperature	-30~80℃
Aspect ratio	16:9
Contrast ratio	500
Application	digital film and slide scanners, automotive monitors, chemical analyzers and automotive diagnostic tools.

Pin assignment:

4.3 inch lcd display 480*272 Resolution resistive touch panel 0

Electrical Characteristics

Item	Symbol	MIN	TYP	MAX	UNIT	Test Condition
Supply Voltage	Vf	-	21	-	V	If=20mA
Supply Current	If	-	20	-	mA	-
Life Time	-	20000	-	-	hrs	If=20mA

Product drawings:

4-4.3inch lcd display series:

4-4.3inch LCD Display Sizes
Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc.
No.	Size	Part No.	LCD type	Resolution	Outline dimension	Active area	Interface	Contrast ratio	Brightness	Operation temperature	Storage temperature
1	4"	HC040I*30021-C82	IPS	480*480	74.6676.542.15mm	71.856*70.176mm	40pinRGB	800	300	-20~70℃	-30~80℃
2	4"	HC041IXA5030-F77	IPS	1280*640	106.961.92.9mm	92.544*46.272mm	40pinRGB	1500	1500	-40~105℃	-40~105℃
3	4"	HC040I*30021-C82V.C	IPS	480*480	868637.5mm	71.856*70.176mm	40pinRGB	800	250	-20~70℃	-30~80℃
4	4.3"	HC043TE20029-B58	TN	480*272	105.567.22.9mm	95.04*53.856mm	40pinRGB	500	200	-20~70℃	-30~70℃
5	4.3"	HC043IG30029-D92	IPS	800*480	105.567.22.9mm	95.04*53.86mm	12pinSPI	1200	300	-20~70℃	-30~80℃
6	4.3"	HC043IG30029-D92V.1	IPS	800*480	105.567.24.05mm	95.04 ×53.856mm	12pinSPI	500	280	-20~70℃	-30-80℃
7	4.3"	HC043TE20029-B55	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	200	-20~70℃	-30-80℃
8	4.3"	HC043TE30029-B03V01	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	300	-20~70℃	-30-80℃
9	4.3"	HC043TE30029-B03V.C	TN	480*272	105.567.24.5mm	95.04×53.856mm	40pinRGB	500	300	-20~70℃	-30-80℃
10	4.3"	HC043TE45031-B03	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	450	-20~70℃	-30-80℃
11	4.3"	HC043TE50029-B03	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	500	-20~70℃	-30-80℃
12	4.3"	HC043TE50029-B03V02	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	500	-20~70℃	-30-80℃
13	4.3"	HC043TE80031-B80	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	800	-20~70℃	-30-80℃
14	4.3"	HC043TE78040-B80	TN	480*272	105.567.24.0mm	95.04*53.868mm	40pinRGB	500	780	-20~70℃	-30-80℃
15	4.3"	HC043IE30031-B80	IPS	480*272	105.567.23.0mm	95.04*53.856mm	40pinRGB	800	300	-20~70℃	-30-80℃
16	4.3"	HC043TE30040-B80V.1	TN	480*272	105.567.24.05mm	95.04×53.856mm	40pinRGB	500	200	-20~70℃	-20~70℃
17	4.3"	HC043TE40040-A46V.1	TN	480*272	104.7×66.4×4mm	95.04×53.856mm	40pinRGB	500	400	-20~70℃	--20~70℃
18	4.3"	HC043IG80030-B56	IPS	800*480	105.567.23.0mm	95.04*53.856mm	40pinRGB	800	800	-20~70℃	-30~80℃
19	4.3"	HC043IE40029-F47	IPS	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	800	400	-20~70℃	-30~80℃
20	4.3"	HC043IE50029-D65	IPS	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	800	500	-20~70℃	-30~80℃
21	4.3"	HC043IE50029-D65V.C	IPS	480*272	105.567.24.35mm	95.04*53.86mm	40pinRGB	800	450	-20~70℃	-30~80℃
22	4.3"	HC043IEA0029-B03H	IPS	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	800	1000	-30~85℃	-30~85℃
23	4.3"	HC043IG50029-D20	IPS	800*480	105.567.22.9mm	95.04*53.86mm	40pinRGB	1200	500	-20~70℃	-30~80℃
24	4.3"	HC043IGA0029-D20H	IPS	800*480	105.567.22.9mm	95.04*53.86mm	40pinRGB	1200	1000	-30~85℃	-30~85℃

Customization:

FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
