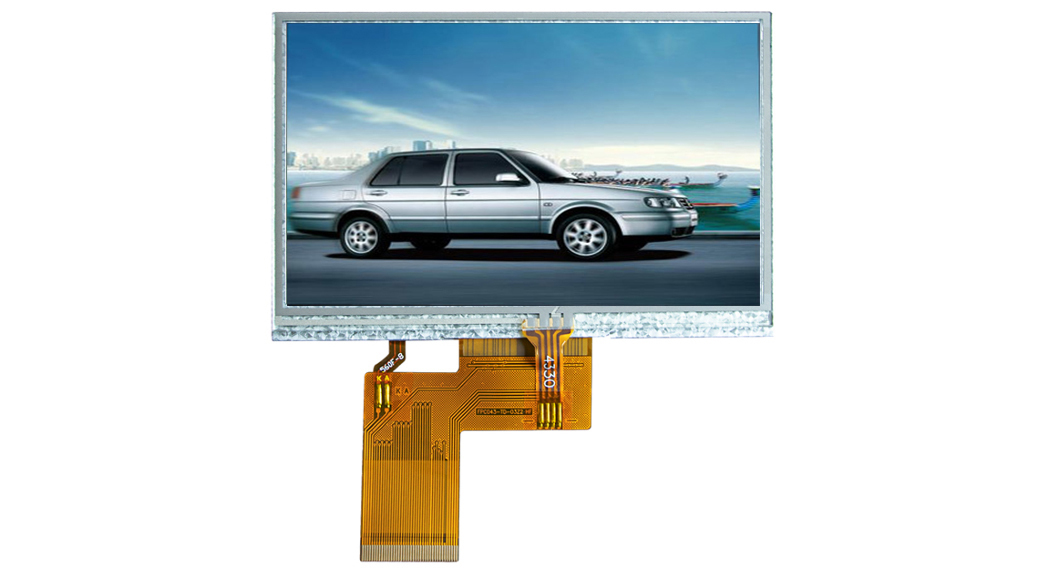

4.3 inch TFT LCD Display with high brightness lcd module

Name: 4.3 inch TFT LCD Display with high brightness lcd module
Brand: Heng Cheng Electronics Technology (HK) Co.,Ltd
SKU: HC043TE78040-B80
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HETECH

Certification: ISO9001,ISO14001,ISO13485,IATF16949

Model Number: HC043TE78040-B80

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Delivery Time: 4-6weeks

Payment Terms: T/T

Supply Ability: 50K/month

Get Best Price

Product Details

Product Description

Highlight:

P/N:	HC043TE78040-B80	Size:	4.3"(TN)
Display Type:	(TN)	Resolution:	480*272
Outline Dimension:	105.5(W )67.2(H)4.05(T)mm	Active Area:	95.04(W)*53.856(H)mm
Brightness:	780cd/m2	Interface:	40pinRGB
Viewing Angle:	70/70/50/70	Operation Temp.:	-20~70℃
Storage Temp.:	-30~80℃	Contrast Ratio:	500
Aspect Rati16:9o:	16:9	Application:	Inspection Camera Industrial Endoscope, Mini Game Console

P/N:	HC043TE78040-B80
Size:	4.3"(TN)
Display Type:	(TN)
Resolution:	480*272
Outline Dimension:	105.5(W )67.2(H)4.05(T)mm
Active Area:	95.04(W)*53.856(H)mm
Brightness:	780cd/m2
Interface:	40pinRGB
Viewing Angle:	70/70/50/70
Operation Temp.:	-20~70℃
Storage Temp.:	-30~80℃
Contrast Ratio:	500
Aspect Rati16:9o:	16:9
Application:	Inspection Camera Industrial Endoscope, Mini Game Console

4.3 inch TFT LCD Display with high brightness lcd module

4.3 inch TFT LCD with 40pinRGB interface and 70/70/50/70 viewing angle

Product Description:

HC043TE78040-B80 is a 4.3-inch TFT LCD module. It adopts TN technology engineered with the advantages of high precision and fast response. Its resolution of 480*272 and contrast ratio of 500:1 endow the display with clear and vivid visuals. Its 780 nits brightness makes it well-suited for everyday tasks and not inferior to other displays in terms of color performance. This display is equipped with an interface of 40-pin RGB that meets most users’ requirements for the signal transmission and color reproduction. Also, it possess the active area of 95.04mm*53.856mm, and outline dimension of 105.5mm*67.2mm*4mm which make it suitable for inspection camera industrial endoscope, mini game console.

General Specification:

P/N	HC043TE78040-B80
Size	4.3inch
Display type	Normally White, Transmissive
Resolution	480*272
Outline Dimension(mm)	105.5(W )67.2(H)4.05(T)mm
Active Area(mm)	95.04(W)*53.856(H)mm
Brightness(cd/m²)	780
Viewing Angle(L/R/T/B)	70/70/50/70
Interface	40pinRGB
Operation Temperature	-20~70℃
Storge Temperature	-30~80℃
Aspect ratio	16:9
Contrast ratio	780
Application	inspection camera industrial endoscope, mini game console

Pin assignment:

4.3 inch TFT LCD Display with high brightness lcd module 0

Electrical Characteristics

Item	Symbol	MIN	TYP	MAX	UNIT	Test Condition
Supply Voltage	Vf	-	25.6	-	V	If=40mA
Supply Current	If	-	40	-	mA	-
Life Time	-	20000	-	-	hrs	If=40mA

Product drawings:

4-4.3inch lcd display series:

4-4.3inch LCD Display Sizes
Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc.
No.	Size	Part No.	LCD type	Resolution	Outline dimension	Active area	Interface	Contrast ratio	Brightness	Operation temperature	Storage temperature
1	4"	HC040I*30021-C82	IPS	480*480	74.6676.542.15mm	71.856*70.176mm	40pinRGB	800	300	-20~70℃	-30~80℃
2	4"	HC041IXA5030-F77	IPS	1280*640	106.961.92.9mm	92.544*46.272mm	40pinRGB	1500	1500	-40~105℃	-40~105℃
3	4"	HC040I*30021-C82V.C	IPS	480*480	868637.5mm	71.856*70.176mm	40pinRGB	800	250	-20~70℃	-30~80℃
4	4.3"	HC043TE20029-B58	TN	480*272	105.567.22.9mm	95.04*53.856mm	40pinRGB	500	200	-20~70℃	-30~70℃
5	4.3"	HC043IG30029-D92	IPS	800*480	105.567.22.9mm	95.04*53.86mm	12pinSPI	1200	300	-20~70℃	-30~80℃
6	4.3"	HC043IG30029-D92V.1	IPS	800*480	105.567.24.05mm	95.04 ×53.856mm	12pinSPI	500	280	-20~70℃	-30-80℃
7	4.3"	HC043TE20029-B55	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	200	-20~70℃	-30-80℃
8	4.3"	HC043TE30029-B03V01	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	300	-20~70℃	-30-80℃
9	4.3"	HC043TE30029-B03V.C	TN	480*272	105.567.24.5mm	95.04×53.856mm	40pinRGB	500	300	-20~70℃	-30-80℃
10	4.3"	HC043TE45031-B03	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	450	-20~70℃	-30-80℃
11	4.3"	HC043TE50029-B03	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	500	-20~70℃	-30-80℃
12	4.3"	HC043TE50029-B03V02	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	500	-20~70℃	-30-80℃
13	4.3"	HC043TE80031-B80	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	800	-20~70℃	-30-80℃
14	4.3"	HC043TE78040-B80	TN	480*272	105.567.24.0mm	95.04*53.868mm	40pinRGB	500	780	-20~70℃	-30-80℃
15	4.3"	HC043IE30031-B80	IPS	480*272	105.567.23.0mm	95.04*53.856mm	40pinRGB	800	300	-20~70℃	-30-80℃
16	4.3"	HC043TE30040-B80V.1	TN	480*272	105.567.24.05mm	95.04×53.856mm	40pinRGB	500	200	-20~70℃	-20~70℃
17	4.3"	HC043TE40040-A46V.1	TN	480*272	104.7×66.4×4mm	95.04×53.856mm	40pinRGB	500	400	-20~70℃	--20~70℃
18	4.3"	HC043IG80030-B56	IPS	800*480	105.567.23.0mm	95.04*53.856mm	40pinRGB	800	800	-20~70℃	-30~80℃
19	4.3"	HC043IE40029-F47	IPS	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	800	400	-20~70℃	-30~80℃
20	4.3"	HC043IE50029-D65	IPS	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	800	500	-20~70℃	-30~80℃
21	4.3"	HC043IE50029-D65V.C	IPS	480*272	105.567.24.35mm	95.04*53.86mm	40pinRGB	800	450	-20~70℃	-30~80℃
22	4.3"	HC043IEA0029-B03H	IPS	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	800	1000	-30~85℃	-30~85℃
23	4.3"	HC043IG50029-D20	IPS	800*480	105.567.22.9mm	95.04*53.86mm	40pinRGB	1200	500	-20~70℃	-30~80℃
24	4.3"	HC043IGA0029-D20H	IPS	800*480	105.567.22.9mm	95.04*53.86mm	40pinRGB	1200	1000	-30~85℃	-30~85℃

Customization:

FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
