Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC014TX25020-G20
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC014TX25020-G20 |
Size: |
1.44"(TN) |
Display Type: |
(TN) |
Resolution: |
128*128 |
Outline Dimension: |
27.9(H)*32.64(V)*1.96(D)mm |
Active Area: |
25.50(H)*26.50mm(W)mm |
Brightness: |
250cd/m2 |
Interface: |
12pinSPI |
Viewing Angle: |
60/60/60/60 |
Operation Temp.: |
-20~70 |
Storage Temp.: |
-30~80 |
Contrast Ratio: |
600 |
Aspect Ratio: |
1:1 |
Application: |
Smart Watch, USB Tester, Laser Angle Ruler Protractor, Letter Box And Temperature Humidity Analyzer Digital Meter |
P/N: |
HC014TX25020-G20 |
Size: |
1.44"(TN) |
Display Type: |
(TN) |
Resolution: |
128*128 |
Outline Dimension: |
27.9(H)*32.64(V)*1.96(D)mm |
Active Area: |
25.50(H)*26.50mm(W)mm |
Brightness: |
250cd/m2 |
Interface: |
12pinSPI |
Viewing Angle: |
60/60/60/60 |
Operation Temp.: |
-20~70 |
Storage Temp.: |
-30~80 |
Contrast Ratio: |
600 |
Aspect Ratio: |
1:1 |
Application: |
Smart Watch, USB Tester, Laser Angle Ruler Protractor, Letter Box And Temperature Humidity Analyzer Digital Meter |
Product Description:

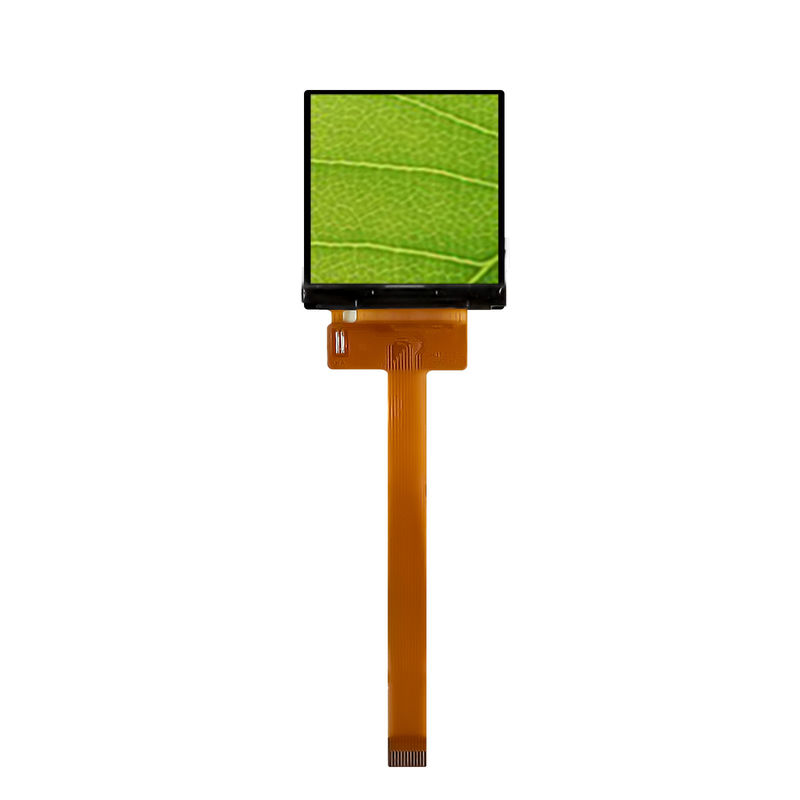

HC014TX25020-G20, a 1.44-inch square TFT LCD display with the interface of 12pin SPI, features compact, lightweight, high reliability and multi-functional. This module is equipped with a TN display mode, which has extremely fast response speed, and its 128*128 pixels resolution can also bring a natural and clear picture to users. Although the screen size of this display is small, its contrast ratio of 600:1 and brightness of 250nits allow this small screen to exert its unique visual effects. Its unique outline dimension of 27.90mm*32.64mm*1.96mm allows this module to be easily applied to a variety of devices such as smart watch, USB tester, laser angle ruler protractor, letter box and temperature humidity analyzer digital meter. Furthermore, this module can work stably under the temperatures from -20 to 70℃. In a word, the HC014TX25020-G20 marries advanced technology with exceptional performance to create an exclusive visual experience for users.
General Specification:
| P/N |
HC014TX25020-G20
|
| Size | 1.44inch |
| Display type | Normally white |
| Resolution | 128*128 |
| Outline Dimension(mm) | 27.9(H)*32.64(V)*1.96(D)mm |
| Active Area(mm) | 25.50(H)*26.50mm(W)mm |
| Brightness(cd/m²) | 250 |
| Viewing Angle(L/R/T/B) | 60/60/60/60 |
| Interface | 12pinSPI |
| Operation Temperature | -20~70 |
| Storge Temperature | -30~80 |
| Aspect ratio | 1:1 |
| Contrast ratio | 600 |
| Application | smart watch, USB tester, laser angle ruler protractor, letter box and temperature humidity analyzer digital meter |
Pin assignment:
Product drawings:
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
