Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC030IT30043-B86
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC030IT30043-B86 |
Size: |
3"(IPS) |
Display Type: |
(IPS) |
Resolution: |
360*640 |
Outline Dimension: |
43.04(W)*74.91(H)*2.30(T) Mm |
Active Area: |
36.72(W)*65.28(H)mm |
Brightness: |
300cd/m2 |
Interface: |
30pinSPI |
Viewing Angle: |
80/80/80/80 |
Operation Temp.: |
-20~65 |
Storage Temp.: |
-25~70 |
Contrast Ratio: |
800 |
Aspect Ratio: |
9:16 |
Application: |
IP Phone, Handheld Digital Microscope, Retro Game Console, Smart Faucet, And Colorimeter |
P/N: |
HC030IT30043-B86 |
Size: |
3"(IPS) |
Display Type: |
(IPS) |
Resolution: |
360*640 |
Outline Dimension: |
43.04(W)*74.91(H)*2.30(T) Mm |
Active Area: |
36.72(W)*65.28(H)mm |
Brightness: |
300cd/m2 |
Interface: |
30pinSPI |
Viewing Angle: |
80/80/80/80 |
Operation Temp.: |
-20~65 |
Storage Temp.: |
-25~70 |
Contrast Ratio: |
800 |
Aspect Ratio: |
9:16 |
Application: |
IP Phone, Handheld Digital Microscope, Retro Game Console, Smart Faucet, And Colorimeter |

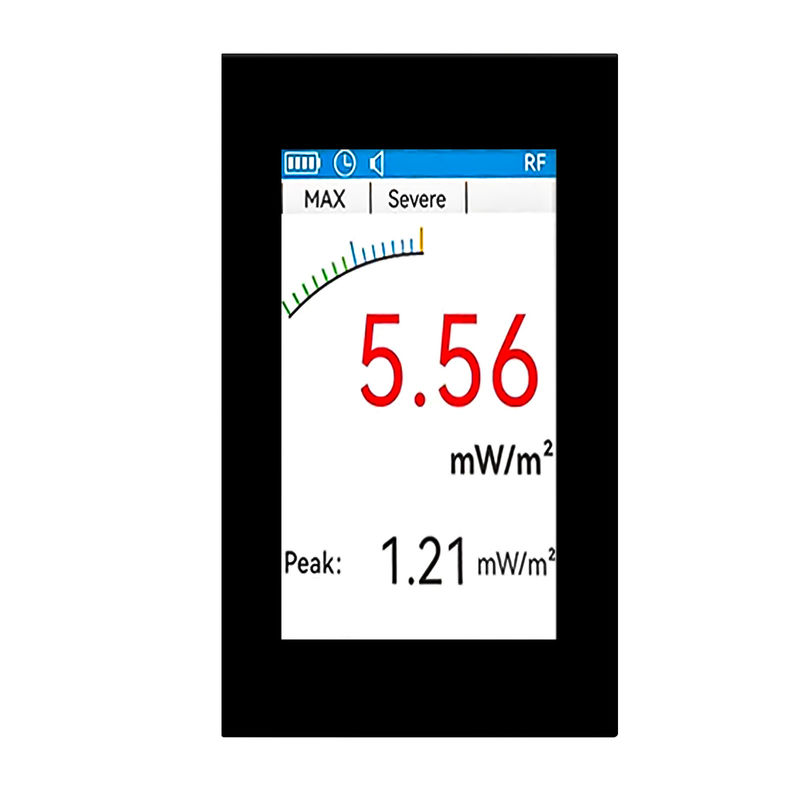

3 Inch IPS LCD TFT Display with 300nits Brightness and 800:1 Contrast Ratio
Product Description:
HC030IT30043-B86 is a 3-inch rectangular vertical display with IPS full-view technology, presenting an active area of 36.72mm*65.28mm. Its resolution is 360*640 pixels giving the screen a clear display effect. The 300nits backlight brightness and 800:1 contrast ratio enable an accurate image color presentation. Its bar-shape and outline dimension of 43.04mm*74.91mm*2.30mm meet various small devices needs, such as IP phone, handheld digital microscope, retro game console, smart faucet, and colorimeter. With the interface of 30pin SPI, this display can achieve fast data transmission. Additionally, this 3-inch module’s operation temperature is from -20℃ to 70℃, which means it can work normally in various ambient temperatures and harsh working conditions.
General Specification:
| P/N |
HC030IT30043-B86
|
| Size | 3inch |
| Display type |
TFT/ Transmission
|
| Resolution | 360*640 |
| Outline Dimension(mm) | 43.04(W)*74.91(H)*2.30(T) mm |
| Active Area(mm) | 36.72(W)*65.28(H)mm |
| Brightness(cd/m²) | 300 |
| Viewing Angle(L/R/T/B) | 80/80/80/80 |
| Interface | 30pinSPI |
| Operation Temperature | -20~65 |
| Storge Temperature | -25~70 |
| Aspect ratio | 9:16 |
| Contrast ratio | 800 |
| Application | IP phone, handheld digital microscope, retro game console, smart faucet, and colorimeter |
Pin assignment:
Product drawings:
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
