Highlight:

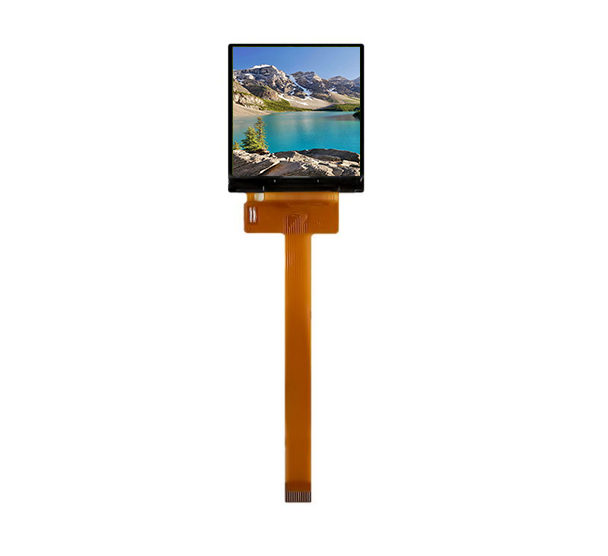

1.44 Inch TFT LCD Module 128x128 TFT Display for humidity analyzer
Product Description:
1.HC014TX25020-G20, 1.44 inch ultra-slim TFT LCM with TN panel, has a resolution of 128x128 pixels and can be operated at temperatures from -20℃ to 70℃. Boasting a 600:1 contrast ratio and 250nits brightness, it delivers sharp visibility even in harsh lighting. Its 12-pin SPI interface ensures seamless integration. Its outer frame size of 27.9mm×32.64mm×1.96mm and active area of 25.5mm×26.5mm make itself fit effortlessly into space-critical designs, such as, smart watch, USB tester, laser angle ruler protractor, letter box and temperature humidity analyzer digital meter.
General Specification:
| P/N |
HC014TX25020-G20
|
| Size |
1.44inch |
| Display type |
Normally white |
| Resolution |
128*128 |
| Outline Dimension(mm) |
27.9(H)*32.64(V)*1.96(D)mm |
| Active Area(mm) |
25.50(H)*26.50mm(W)mm |
| Brightness(cd/m²) |
250 |
| Viewing Angle(L/R/T/B) |
60/60/60/60 |
| Interface |
12pinSPI |
| Operation Temperature |
-20~70 |
| Storge Temperature |
-30~80 |
| Aspect ratio |
1:1 |
| Contrast ratio |
600 |
| Application |
smart watch, USB tester, laser angle ruler protractor, letter box and temperature humidity analyzer digital meter |
Pin assignment:
Product drawings:
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
