Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC024IC40025-F03V.C
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC024IC40025-F03V.C |
Size: |
2.4"(IPS) |
Display Type: |
(IPS) |
Resolution: |
240*320 |
Outline Dimension: |
42.92(W)*60.26(H)*3.7(T)mm |
Active Area: |
36.72(H)*48.96(V)mm |
Brightness: |
400cd/m2 |
Interface: |
45pinSPI |
Viewing Angle: |
80/80/80/80 |
Operation Temp.: |
-20~70 |
Storage Temp.: |
-30~80 |
Contrast Ratio: |
800 |
Aspect Ratio: |
3:4 |
Application: |
Handheld Dual Channel Digital Oscilloscope, Digital Metal Ultrasonic Thickness Gauge Meter |
P/N: |
HC024IC40025-F03V.C |
Size: |
2.4"(IPS) |
Display Type: |
(IPS) |
Resolution: |
240*320 |
Outline Dimension: |
42.92(W)*60.26(H)*3.7(T)mm |
Active Area: |
36.72(H)*48.96(V)mm |
Brightness: |
400cd/m2 |
Interface: |
45pinSPI |
Viewing Angle: |
80/80/80/80 |
Operation Temp.: |
-20~70 |
Storage Temp.: |
-30~80 |
Contrast Ratio: |
800 |
Aspect Ratio: |
3:4 |
Application: |
Handheld Dual Channel Digital Oscilloscope, Digital Metal Ultrasonic Thickness Gauge Meter |

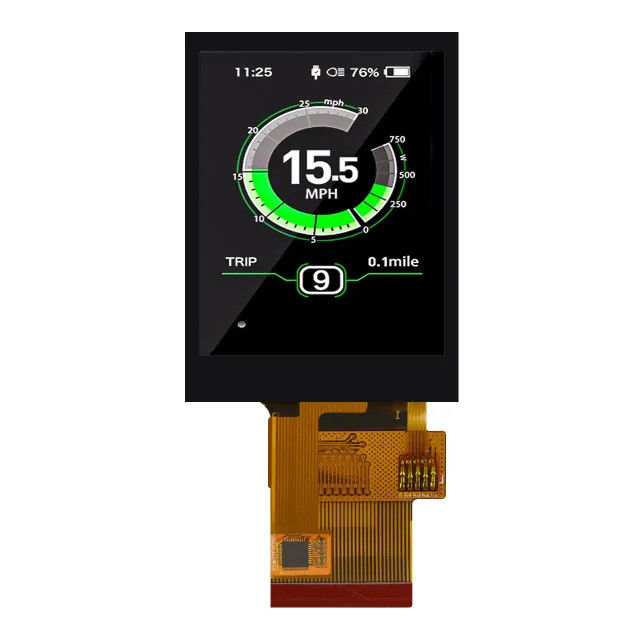

2.4-inch IPS display with capacitive touch screen and 45pin SPI interface
Product Description:
HC024IC40025-F03V.C has become a bridge of interaction between various devices and human body, and its excellent quality and reliability have made it the first choice for many customers. The 2.4-inch IPS display with a capacitive touch screen has a resolution of 240*320 pixels and a brightness of 400nits, making it no inferior to other displays in terms of color performance. It’s operation temperature of -20℃ to 70℃ and storage temperature of -30℃ to 80℃ enable it to work stably in both hot summer and cold winter, providing users with reliable services. Additionally, with the outline dimension of 42.92mm*60.26mm*3.7mm and the interface of 45pin SPI, this 2.4-inch display can be applied in handheld dual channel digital oscilloscope, digital metal ultrasonic thickness gauge meter and other equipment flexibly. The HC024IC40025-F03V.C not only meets people's high requirements for visual experience, but also leads the rapid development of various industries with its practicality and innovation.
General Specification:
| P/N |
HC024IC40025-F03V.C
|
| Size | 2.4inch |
| Display type | Normally Black |
| Resolution | 240*320 |
| Outline Dimension(mm) | 42.92(W)*60.26(H)*3.7(T)mm |
| Active Area(mm) | 36.72(H)*48.96(V)mm |
| Brightness(cd/m²) | 400 |
| Viewing Angle(L/R/T/B) | 80/80/80/80 |
| Interface | 45pinSPI |
| Operation Temperature | -20~70 |
| Storge Temperature | -30~80 |
| Aspect ratio | 3:4 |
| Contrast ratio | 800 |
| Application | handheld dual channel digital oscilloscope, digital metal ultrasonic thickness gauge meter |
Product drawings:
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
