Product Details
Place of Origin: China
Brand Name: INNOLUX
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: NJ070NA-23A
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
NJ070NA-23A |
Size: |
7"(TN) |
Display Type: |
(TN) |
Resolution: |
1024*600 |
Outline Dimension: |
164.9(W )*100(H)*5.1(T)mm |
Active Area: |
154.214(W)*85.92(H)mm |
Brightness: |
500cd/m2 |
Interface: |
40pinLVDS |
Viewing Angle: |
80/80/60/70 |
Operation Temp.: |
-20-70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
800 |
Aspect Rati16:9o: |
16:9 |
Application: |
Precision Planting Monitor |
P/N: |
NJ070NA-23A |
Size: |
7"(TN) |
Display Type: |
(TN) |
Resolution: |
1024*600 |
Outline Dimension: |
164.9(W )*100(H)*5.1(T)mm |
Active Area: |
154.214(W)*85.92(H)mm |
Brightness: |
500cd/m2 |
Interface: |
40pinLVDS |
Viewing Angle: |
80/80/60/70 |
Operation Temp.: |
-20-70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
800 |
Aspect Rati16:9o: |
16:9 |
Application: |
Precision Planting Monitor |

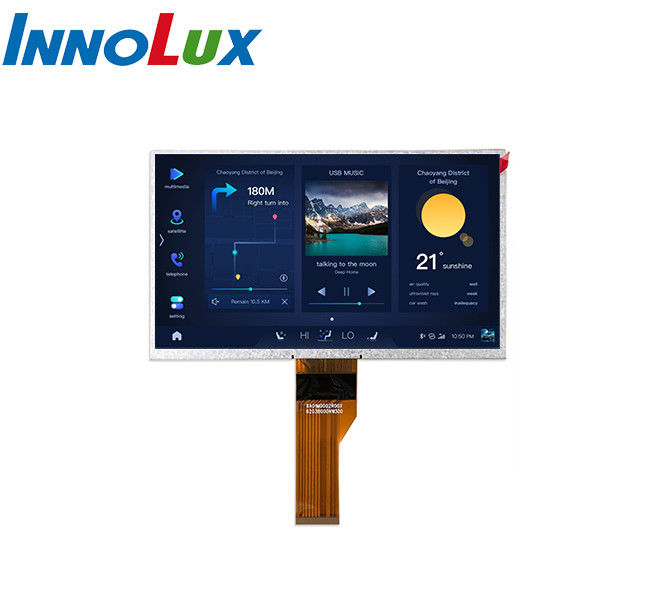

INNOLUX NJ070NA-23A 7-inch Display with 1024*600 Resolution
Product Description:
INNOLUX NJ070NA-23A, as a 7-inch TN display, is easy to install on charging post, department calling screen and transportation system while offering superior image quality with a high resolution of 1024*600 pixels. This display with an outline dimension of 164.9mm*100mm*6.6mm is designed with a 40 pin LVDS interface, which supports excellent signal integrity and low power consumption. Its brightness of 425 nits and contrast ratio of 800:1 make details in shadows more apparent and images visible in moderate lighting conditions. NJ070NA-23A is a display solution capable of operating at temperatures from -20℃ to 70℃ and its performance is superior to general displays.
General Specification:
| P/N | NJ070NA-23A |
| Size | 7inch |
| Display type |
Normally White, Transmissive
|
| Resolution | 1024*600 |
| Outline Dimension(mm) | 164.9(W )*100(H)*5.1(T)mm |
| Active Area(mm) | 154.214(W)*85.92(H)mm |
| Brightness(cd/m²) | 500 |
| Viewing Angle(L/R/T/B) | 80/80/60/70 |
| Interface | 40pinLVDS |
| Operation Temperature | -20-70℃ |
| Storge Temperature | -30~80℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 800 |
| Application | Precision planting monitor |
Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT |
|
Voltage for LED backlight
|
Vf | 8.4 | 9.9 | 10.2 | V |
|
Current for LED backlight
|
If | - | 265 | - | mA |
|
LED life time
|
- | 20000 | - | - | hrs |
Product drawings:
Certificate:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
