Product Details
Place of Origin: China
Brand Name: INNOLUX
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: AT080TN64
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
AT080TN64 |
Size: |
8"(TN) |
Display Type: |
(TN) |
Resolution: |
800*480 |
Outline Dimension: |
192.8(W )*116.9(H)*6.7(T)mm |
Active Area: |
176.64(W)*99.36(H)mm |
Brightness: |
500cd/m2 |
Interface: |
50pinRGB |
Viewing Angle: |
70/70/50/70 |
Operation Temp.: |
-30~85℃ |
Storage Temp.: |
-30~85℃ |
Contrast Ratio: |
800 |
Aspect Rati16:9o: |
16:9 |
Application: |
Industrial Monitoring, Instrumentation |
P/N: |
AT080TN64 |
Size: |
8"(TN) |
Display Type: |
(TN) |
Resolution: |
800*480 |
Outline Dimension: |
192.8(W )*116.9(H)*6.7(T)mm |
Active Area: |
176.64(W)*99.36(H)mm |
Brightness: |
500cd/m2 |
Interface: |
50pinRGB |
Viewing Angle: |
70/70/50/70 |
Operation Temp.: |
-30~85℃ |
Storage Temp.: |
-30~85℃ |
Contrast Ratio: |
800 |
Aspect Rati16:9o: |
16:9 |
Application: |
Industrial Monitoring, Instrumentation |
Product Description:

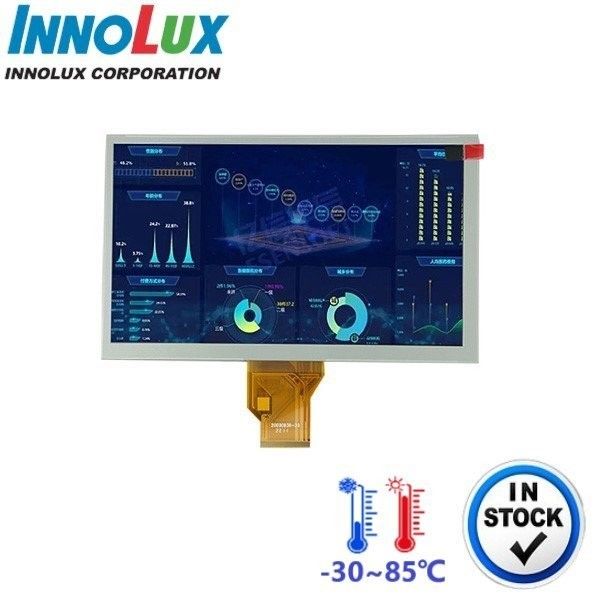

INNOLUX AT080TN64 is an 8-inch TFT LCD display that can show crystal-clear images with its resolution of 800*480 pixels. Using TN display technology, AT080TN64 has the characteristics of fast response times and high refresh rates. Its outline dimension of 192.8mm*116.9mm*6.4mm makes it a perfect fit for numerous applications, providing ample display area of 176.64mm*99.36mm for industrial monitoring, instrumentation and other equipment. Designed to withstand extreme conditions, this display can operate seamlessly in temperatures ranging from -30°C to 85°C. Additionally, this display has an 50pin RGB interface that supports fast and accurate data transmission. And it boasts a brightness of 450 nits and a contrast ratio of 500:1, further improving display quality and ensuring vivid visuals even in different lighting conditions.
General Specification:
| P/N | AT080TN64 |
| Size | 9inch |
| Display type |
Normally White, Transmissive
|
| Resolution | 800*480 |
| Outline Dimension(mm) | 192.8(W )*116.9(H)*6.7(T)mm |
| Active Area(mm) | 176.64(W)*99.36(H)mm |
| Brightness(cd/m²) | 500 |
| Viewing Angle(L/R/T/B) | 70/70/50/70 |
| Interface | 50pinRGB |
| Operation Temperature | -30~85℃ |
| Storge Temperature | -30~85℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 800 |
| Application | Industrial monitoring, instrumentation |
Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT |
|
Voltage for LED backlight
|
Vf | 8.4 | 9.3 | 10.2 | V |
|
Current for LED backlight
|
If | 216 | 240 | 264 | mA |
|
LED life time
|
- | 20000 | - | - | hrs |
Product drawings:
Certificate:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
