Product Details
Place of Origin: China
Brand Name: INNOLUX
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: AT090TN12V.3
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
AT090TN12V.3 |
Size: |
9"(TN) |
Display Type: |
(TN) |
Resolution: |
800*480 |
Outline Dimension: |
211.1(W )*126.5(H)*6.1(T)mm |
Active Area: |
198(W)*111.696(H)mm |
Brightness: |
300cd/m2 |
Interface: |
50pinRGB |
Viewing Angle: |
70/70/50/70 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
500 |
Aspect Rati16:9o: |
16:9 |
Application: |
DVD Player And Digital Photo Frame |
P/N: |
AT090TN12V.3 |
Size: |
9"(TN) |
Display Type: |
(TN) |
Resolution: |
800*480 |
Outline Dimension: |
211.1(W )*126.5(H)*6.1(T)mm |
Active Area: |
198(W)*111.696(H)mm |
Brightness: |
300cd/m2 |
Interface: |
50pinRGB |
Viewing Angle: |
70/70/50/70 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
500 |
Aspect Rati16:9o: |
16:9 |
Application: |
DVD Player And Digital Photo Frame |
Product Description:

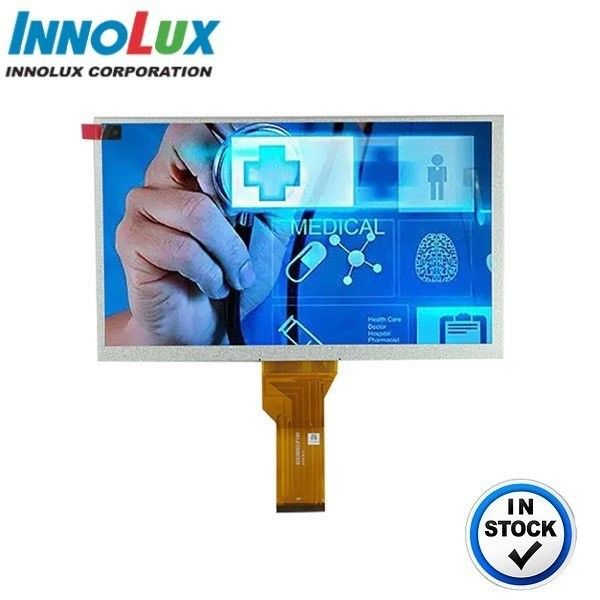

INNOLUX AT090TN12V.3 with an outline dimension of 211.1mm*126.5mm*5.9mm and an active area of 198.000mm*111.696mm, provides colorful and delicate images, enhancing user experience. This 9-inch display with a TN panel boasts a backlight of 250 nits and a contrast ratio of 500:1, offering a comfortable level of brightness indoors while delivering good distinction between dark and light areas. Featuring a 50pin RGB interface, the AT090TN12V.3 provides a convenient and versatile connection to DVD player and digital photo frame. Moreover, this display with a resolution of 800*480 pixels can operate stably at temperatures from -20°C to 70°C, making it suitable for applications requiring reliable performance.
General Specification:
| P/N | AT090TN12V.3 |
| Size | 9inch |
| Display type |
Normally White, Transmissive
|
| Resolution | 800*480 |
| Outline Dimension(mm) | 211.1(W )*126.5(H)*6.1(T)mm |
| Active Area(mm) | 198(W)*111.696(H)mm |
| Brightness(cd/m²) | 300 |
| Viewing Angle(L/R/T/B) | 70/70/50/70 |
| Interface | 50pinRGB |
| Operation Temperature | -20~70℃ |
| Storge Temperature | -30~80℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 1000 |
| Application | DVD player and digital photo frame |
Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT |
|
Voltage for LED backlight
|
Vf | 8.4 | 9.3 | 10.2 | V |
|
Current for LED backlight
|
If | 198 | 220 | 242 | mA |
|
LED life time
|
- | 20000 | - | - | hrs |
