Product Details
Place of Origin: China
Brand Name: INNOLUX
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: LW700AT9309
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
LW700AT9309 |
Size: |
7"(TN) |
Display Type: |
(TN) |
Resolution: |
800*480 |
Outline Dimension: |
165(W )*104.44(H)*5.7(T)mm |
Active Area: |
152.4(W)*91.44(H)mm |
Brightness: |
400cd/m2 |
Interface: |
40pinRGB |
Viewing Angle: |
70/70/60/70 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
IC: |
EK79713B+EK73202A |
Contrast Ratio: |
1000 |
Aspect Rati16:9o: |
16:9 |
Application: |
Handheld Terminals, Testing Machine, Electric Bicycle And Office Printer |
P/N: |
LW700AT9309 |
Size: |
7"(TN) |
Display Type: |
(TN) |
Resolution: |
800*480 |
Outline Dimension: |
165(W )*104.44(H)*5.7(T)mm |
Active Area: |
152.4(W)*91.44(H)mm |
Brightness: |
400cd/m2 |
Interface: |
40pinRGB |
Viewing Angle: |
70/70/60/70 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
IC: |
EK79713B+EK73202A |
Contrast Ratio: |
1000 |
Aspect Rati16:9o: |
16:9 |
Application: |
Handheld Terminals, Testing Machine, Electric Bicycle And Office Printer |
Product Description:

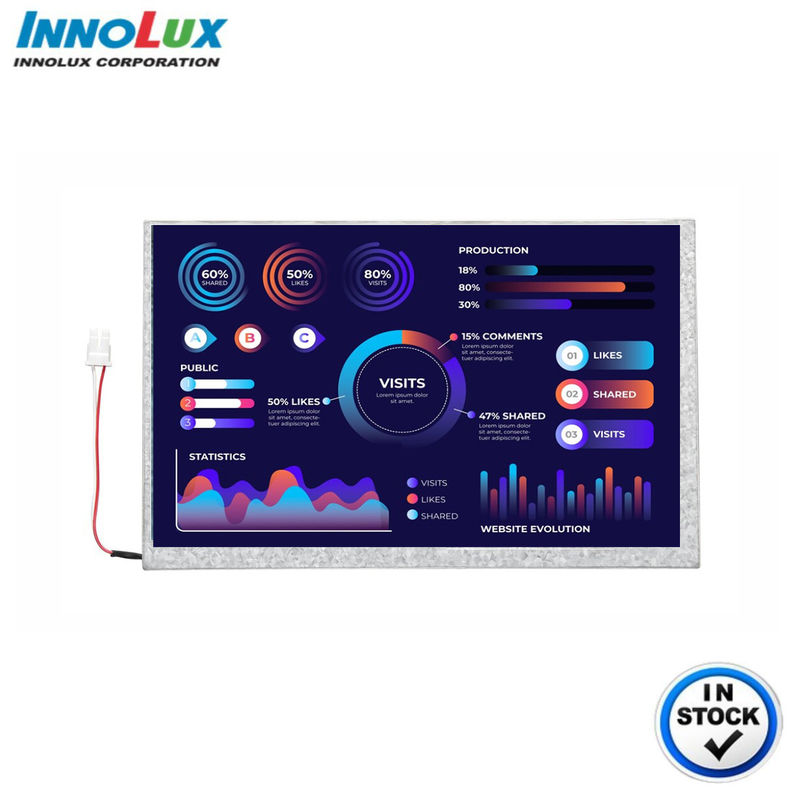

INNOLUX LW700AT9309 is highly popular with current market. As a high-end 7-inch TN display, it relies on its moderate outline size of 165mm*104.44mm*5.2mm and resolution of 800*480 pixels, showing high-quality image and reliable performance. It has a 40 pin RGB interface that is compatible with handheld terminals, testing machine, electric bicycle and office printer. On account of its 350 nits brightness and 400:1 contrast ratio, this display is sufficient for most indoor settings and provides a good balance between bright visuals and comfortable eye strain reduction. LW700AT9309 also has an advantage in terms of operating temperature. It can operate normally and stably in an environment of -20℃ to 70℃, and has a longer service life and more powerful performance than other general displays.
General Specification:
| P/N | LW700AT9309 |
| Size | 7inch |
| Display type |
Normally White, Transmissive
|
| Resolution | 800*480 |
| Outline Dimension(mm) | 165(W )*104.44(H)*5.7(T)mm |
| Active Area(mm) | 152.4(W)*91.44(H)mm |
| Brightness(cd/m²) | 400 |
| Viewing Angle(L/R/T/B) | 70/70/60/70 |
| Interface | 40pinRGB |
| Operation Temperature | -20~70℃ |
| Storge Temperature | -30~80℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 1000 |
| Application | Handheld terminals, testing machine, electric bicycle and office printer |
Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT |
|
Voltage for LED backlight
|
Vf | - | 9.3 | - | V |
|
Current for LED backlight
|
If | - | 160 | - | mA |
|
LED life time
|
- | 15000 | - | - | hrs |
Product drawings:
Certificate:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
