Highlight:
2.1 Inch Round TFT Screen
, ST7701S Round TFT Screen
, 2.1 Inch round lcd panel

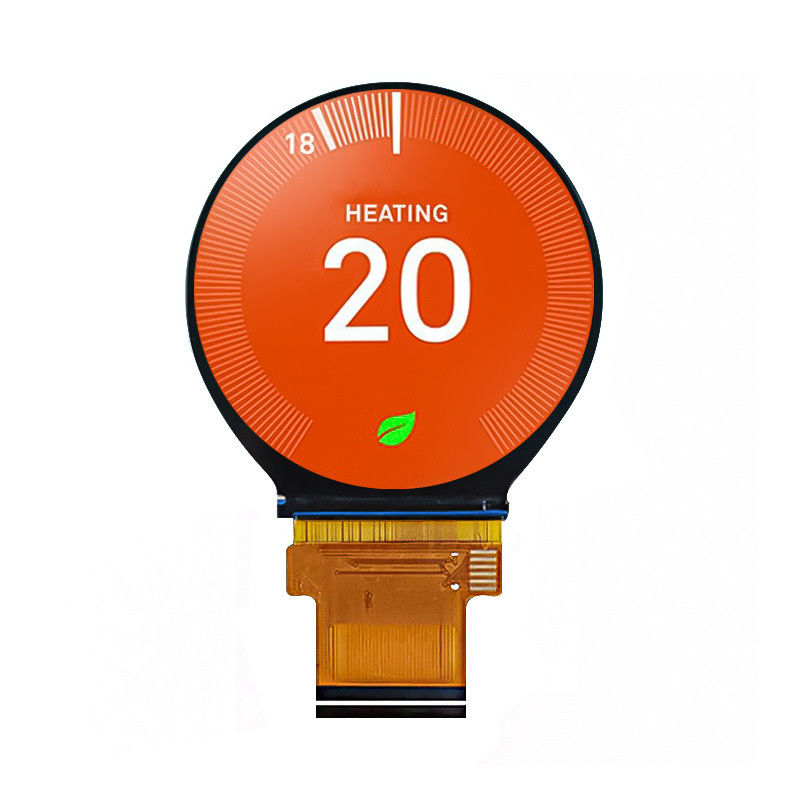

ST7701S IC 2.1 Inch Round TFT Screen LCD Display With 40pinSPI+RGB
2.1 Inch Round LCD screen with 40pinSPI+RGB and ST7701S IC
Product Description:
HCCH210WV01A is 2.1 inch 480x480 resolution round TFT LCD display. This round color display is 40pinSPI+RGB interface, and equipped with ST7701S IC. This 2.1 inch IPS TFT LCD screen is 250 nits brightness. For this outline dimension 56.18(W)*59.71(H)*2.3(D)mm round display, we also have a standard capacitive touch panel for it.This 2.1" full-colour circular IPS TFT display module features all round viewing angles and high contrast ratio. Its round outline and opticalperformances make it suitable for Marine, IOT Devices, Industrial and Medical applications.
General Specification:
| P/N |
HCCH210WV01A |
| Size |
2.1 inch |
| Display mode |
IPS/Transmissive/Normally Black |
| Resolution |
480*480 |
| Outline Dimension(mm) |
56.18(W)*59.71(H)*2.3(D)mm |
| Active Area(mm) |
φ53.28mm |
| Brightness(cd/m²) |
250 |
| Viewing Angle(L/R/T/B) |
85/85/85/85 |
| Interface |
40pinSPI+RGB |
| Driver IC |
ST7701S |
| Operation Temperature |
-20~70℃ |
| Storge Temperature |
-30~80℃ |
| Aspect ratio |
1:1 |
| Contrast ratio |
1000 |
| Application |
Marine, IOT Devices, Industrial and Medical applications |
Product drawings:
Pin assignment:
Backlight Driving Conditions:
| Item |
Symbol |
MIN |
TYP |
MAX |
UNIT |
Test Condition |
| Voltage for LED backlight |
Vf |
3.0 |
3.2 |
3.5 |
V |
If=80mA |
| Current for LED backlight |
If |
- |
80 |
- |
mA |
- |
| LED life time |
- |
- |
20000 |
- |
hrs |
If=80mA |
Round lcd display series
|
HTC-Round LCD Display Sizes
|
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. |
| No. |
Size |
Part No. |
LCD type |
Resolution |
Outline
dimension
|
Active area |
Interface |
Contrast ratio |
Brightness |
Operation temperature |
Storage temperature |
| 1 |
1.8" |
HC018IX20020-F63 |
IPS |
360*360 |
48.08*49.95*1.96mm
|
φ45.68mm |
30pin MIPI |
1200 |
250 |
-20~70℃ |
-30~80℃ |
| 2 |
2.1" |
HCCH210WV01A |
IPS |
480*480 |
56.18*59.71*2.3mm
|
φ53.28mm |
40pinSPI+RGB |
1000 |
250 |
-20~70℃ |
-30~80℃ |
| 3 |
3.5" |
HC035IXA0040-G10 |
IPS |
800*640 |
97.6*83.79*4.0mm
|
90.0*72.0mm |
40pinSPI+RGB |
1200 |
1000 |
-30~80℃ |
-40~90℃ |
| 4 |
3.5" |
HC035IXA0040-F13 |
IPS |
800*640 |
97.6*83.79*4.0mm
|
90.0*72.0mm |
40pinSPI+RGB |
1200 |
1000 |
-20~70℃ |
-30~80℃ |
| 5 |
3.5" |
HC035IXA0077-G82 |
IPS |
720*670 |
98.88*94.12*7.75mm
|
89.74*83.51
mm
|
40pin RGB |
1200 |
1000 |
-30~80℃ |
-30~80℃ |
| 6 |
4" |
HC040IXA4077-F34 |
IPS |
720*720 |
110*112.49*7.7mm
|
φ101.52mm |
40pin MIPI |
1000 |
1400 |
-30~85℃ |
-30-85℃ |
| 7 |
4" |
HC040IXA4077-F35 |
IPS |
720*720 |
110*112.49*7.7mm
|
φ101.52mm |
40pinLVDS |
1200 |
1000 |
-30~80℃ |
-30-85℃ |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
