Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HC040IXA4077-F34
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HC040IXA4077-F34 |
Size: |
4"(IPS) |
Display Type: |
IPS |
Resolution: |
720x720 |
Outline Dimension: |
110(W)*112.49(H)*7.7(D)mm |
Active Area: |
φ101.52 |
Brightness: |
1400cd/m2 |
Interface: |
40pinMIPI |
Viewing Angle: |
85/85/85/85 |
Driver IC: |
INL97O7 |
Operation Temp.: |
-30-85℃ |
Storage Temp.: |
-30-85℃ |
Contrast Ratio: |
1000 |
Aspect Ratio: |
1:1 |
Application: |
The Dashboard Of Our Common Electric Vehicles And Motorcycles |
P/N: |
HC040IXA4077-F34 |
Size: |
4"(IPS) |
Display Type: |
IPS |
Resolution: |
720x720 |
Outline Dimension: |
110(W)*112.49(H)*7.7(D)mm |
Active Area: |
φ101.52 |
Brightness: |
1400cd/m2 |
Interface: |
40pinMIPI |
Viewing Angle: |
85/85/85/85 |
Driver IC: |
INL97O7 |
Operation Temp.: |
-30-85℃ |
Storage Temp.: |
-30-85℃ |
Contrast Ratio: |
1000 |
Aspect Ratio: |
1:1 |
Application: |
The Dashboard Of Our Common Electric Vehicles And Motorcycles |
Product Description:

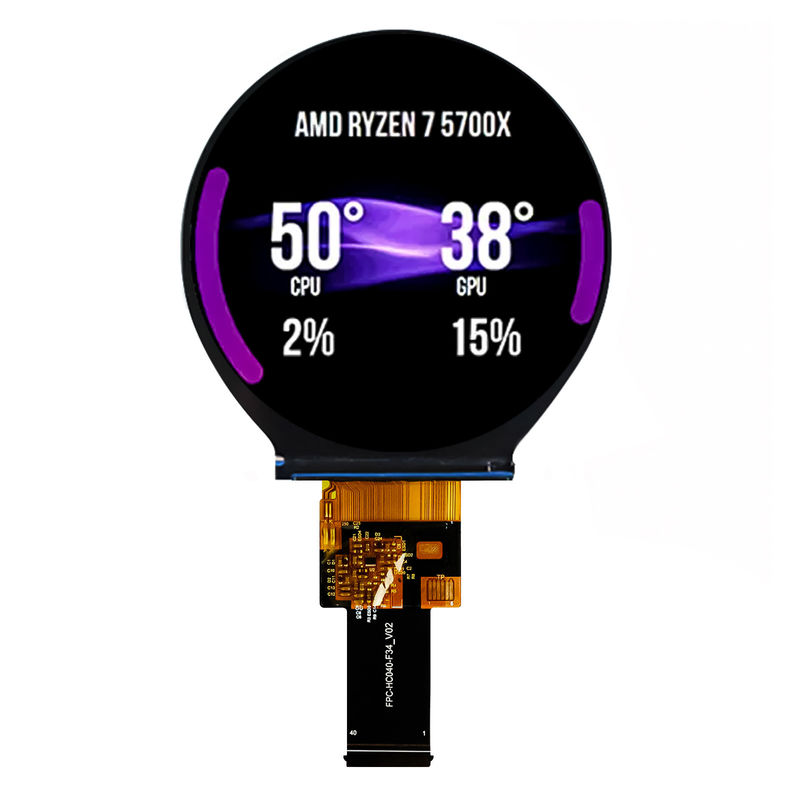

Experience visual brilliance like never before with our state-of-the-art HC040IXA4077-F34 display. This 4-inch display with outline dimension of 110mm*112.49mm*7.7mm brings an awesomely clear and vivid image with cutting-edge technology. Equipped with IPS panel, which brings wide viewing angle to the users, people could see the high-quality display image from any angle. Besides, it features high contrast of 1200 and resolution of 720*720 pixels for precise and accurate details in content display. With high brightness of 1400nits, it is readable under sunlight. Seamlessly integrated into a variety of devices and designs for versatile use, it can be the dashboard of our common electric vehicles and motorcycles. Because of its existence, users can more intuitively understand the running status of the vehicle. In a word, HC040IXA4077-F34 is an excellent display for optimizing user experience and offer unparalleled experience to customers.
General Specification:
| P/N | HC040IXA4077-F34 |
| Size | 4 inch |
| Display type | TRANSMISSIVE/NEGATIVE |
| Resolution | 720*720 |
| Outline Dimension(mm) | 110(W)*112.49(H)*7.7(D)mm |
| Active Area(mm) | φ101.52 |
| Brightness(cd/m²) | 1400 |
| Viewing Angle(L/R/T/B) | 85/85/85/85 |
| Interface | 40pinMIPI |
| Driver IC | INL9707 |
| Operation Temperature | -30-85℃ |
| Storge Temperature | -30-85℃ |
| Aspect ratio | 1:1 |
| Contrast ratio | 800:1 |
| Application | the dashboard of our common electric vehicles and motorcycles |
Pin assignment:
| Pin | Symbol |
| 1 | GND |
| 2 |
TP_VDD |
| 3 | TP_GND |
| 4 | TP_SDA |
| 5 | TP_SCL |
| 6 | TP_INT |
| 7 | TP_RST |
| 8 | GND |
| 9 | NC |
| 10 | NC(VPP) |
| 11 | VCC2.8-3.3 |
| 12 | VCC2.8-3.3 |
| 13 | IOVCC |
| 14 | LCD_ID |
| 15 | PWM |
| 16 | TE_IN |
| 17 | RST_IN |
| 18 | GND |
| 19 | D3N |
| 20 | D3P |
| 21 | GND |
| 22 | DON |
| 23 | DOP |
| 24 | GND |
| 25 | CLKN |
| 26 | CLKP |
| 27 | GND |
| 28 | DIN |
| 29 | DIP |
| 30 | GND |
| 31 | D2N |
| 32 | D2P |
| 33 | GND |
| 34 | GND |
| 35 | LEDK |
| 36 | LEDK |
| 37 | LEDK |
| 38 | LEDA |
| 39 | LEDA |
| 40 | LEDA |
Product drawings:
