4 Inch Round tft LCD Display With 1400nits Brightness 720*720 Resolution
Product Description:

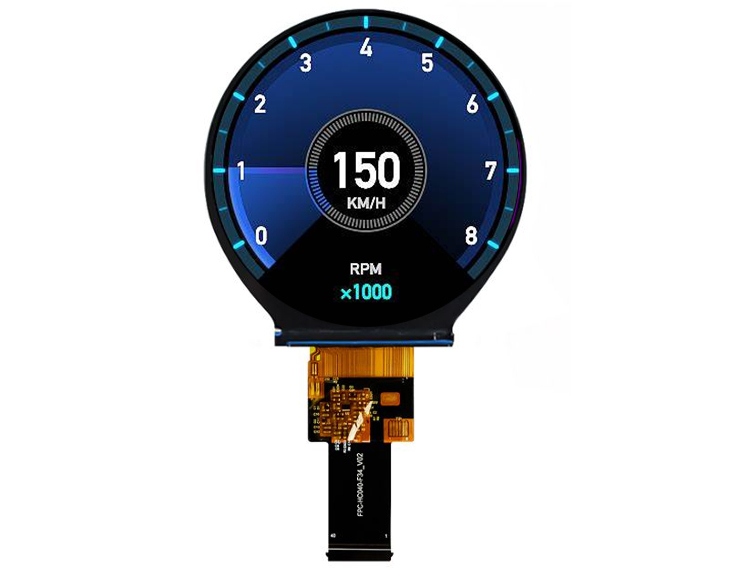

HC040IXA4077-F34 is a great 4-inch round TFT LCD module with IPS screen dedicated to realizing high-visibility and reliability. The display is equipped with the resolution of 720*720 and contrast ratio of 800:1 which offer clear and crisp image. Brightness of 1400nits and 85° viewing angle endow the LCM with the ability to still work well and show brilliant effect in harsh lighting environment, which make it super fit for electric vehicles, motorcycle dashboard. Embedded in a compact frame of 110mm*112.49mm*7.7mm, this module provides a rich active diameter of 101.52mm with 40 pin MIPI interface. Also, since its operation temperature ranges from -30℃ to 85℃, this module can overcome various harsh environments and maintain normal working conditions.
General Specification:
| P/N |
HC040IXA4077-F34 |
| Size |
4 inch |
| Display type |
TRANSMISSIVE/NEGATIVE |
| Resolution |
720*720 |
| Outline Dimension(mm) |
110(W)*112.49(H)*7.7(D)mm |
| Active Area(mm) |
φ101.52 |
| Brightness(cd/m²) |
1400 |
| Viewing Angle(L/R/T/B) |
85/85/85/85 |
| Interface |
40pinMIPI |
| Driver IC |
INL9707 |
| Operation Temperature |
-30-85℃ |
| Storge Temperature |
-30-85℃ |
| Aspect ratio |
1:1 |
| Contrast ratio |
800:1 |
| Application |
the dashboard of our common electric vehicles and motorcycles |
Pin assignment:
| Pin |
Symbol |
| 1 |
GND |
| 2 |
TP_VDD
|
| 3 |
TP_GND |
| 4 |
TP_SDA |
| 5 |
TP_SCL |
| 6 |
TP_INT |
| 7 |
TP_RST |
| 8 |
GND |
| 9 |
NC |
| 10 |
NC(VPP) |
| 11 |
VCC2.8-3.3 |
| 12 |
VCC2.8-3.3 |
| 13 |
IOVCC |
| 14 |
LCD_ID |
| 15 |
PWM |
| 16 |
TE_IN |
| 17 |
RST_IN |
| 18 |
GND |
| 19 |
D3N |
| 20 |
D3P |
| 21 |
GND |
| 22 |
DON |
| 23 |
DOP |
| 24 |
GND |
| 25 |
CLKN |
| 26 |
CLKP |
| 27 |
GND |
| 28 |
DIN |
| 29 |
DIP |
| 30 |
GND |
| 31 |
D2N |
| 32 |
D2P |
| 33 |
GND |
| 34 |
GND |
| 35 |
LEDK |
| 36 |
LEDK |
| 37 |
LEDK |
| 38 |
LEDA |
| 39 |
LEDA |
| 40 |
LEDA |
Product drawings:
Round lcd display series
|
Round LCD Display Sizes
|
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. |
| No. |
Size |
Part No. |
LCD type |
Resolution |
Outline dimension |
Active area |
Interface |
Contrast ratio |
Brightness |
Operation temperature |
Storage temperature |
| 1 |
1.8" |
HC018IX20020-F63 |
IPS |
360*360 |
48.08*49.95*1.96mm |
φ45.68mm |
30pin MIPI |
1200 |
250 |
-20~70℃ |
-30~80℃ |
| 2 |
2.1" |
HCCH210WV01A |
IPS |
480*480 |
56.18*59.71*2.3mm |
φ53.28mm |
40pinSPI+RGB |
1000 |
250 |
-20~70℃ |
-30~80℃ |
| 3 |
3.5" |
HC035IXA0040-G10 |
IPS |
800*640 |
97.6*83.79*4.0mm |
90.0*72.0mm |
40pinSPI+RGB |
1200 |
1000 |
-30~80℃ |
-40~90℃ |
| 4 |
3.5" |
HC035IXA0040-F13 |
IPS |
800*640 |
97.6*83.79*4.0mm |
90.0*72.0mm |
40pinSPI+RGB |
1200 |
1000 |
-20~70℃ |
-30~80℃ |
| 5 |
3.5" |
HC035IXA0077-G82 |
IPS |
720*670 |
98.88*94.12*7.75mm |
89.74*83.51mm |
40pin RGB |
1200 |
1000 |
-30~80℃ |
-30~80℃ |
| 6 |
4" |
HC040IXA4077-F34 |
IPS |
720*720 |
110*112.49*7.7mm |
φ101.52mm |
40pin MIPI |
1000 |
1400 |
-30~85℃ |
-30-85℃ |
| 7 |
4" |
HC040IXA4077-F35 |
IPS |
720*720 |
110*112.49*7.7mm |
φ101.52mm |
40pinLVDS |
1200 |
1000 |
-30~80℃ |
-30-85℃ |
