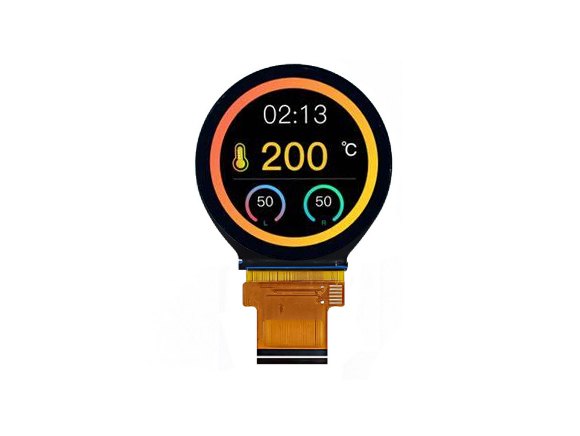

2.1 Inch Round tft lcd Display With 40pinSPI interface
2.1 Inch Round LCD screen with 40pinSPI+RGB and ST7701S IC
Product Description:
HCCH210WV01A is a 2.1-inch TFT round module featuring IPS screen which can blend precision and versatility. Its 480x480 resolution delivers razor-sharp clarity, while 1000:1 contrast ratio and 250nits brightness ensure vivid visuals in any lighting. With consistent 85° ultra-wide viewing angles, readability stays flawless from every perspective. Designed for compact spaces, its slim 2.3mm profile and optimized footprint of 56.18mm*59.71mm enable effortless integration. The 3Line SPI+18bit RGB interface supports diverse connectivity needs, and the 53.28mm active diameter offers intuitive touch-friendly interaction. What’s more, HCCH210WV01A is totally perfect for smart knob, data monitor, water cooled screen, mini PC gamer display and some other devices.
General Specification:
| P/N |
HCCH210WV01A |
| Size |
2.1 inch |
| Display mode |
IPS/Transmissive/Normally Black |
| Resolution |
480*480 |
| Outline Dimension(mm) |
56.18(W)*59.71(H)*2.3(D)mm |
| Active Area(mm) |
φ53.28mm |
| Brightness(cd/m²) |
250 |
| Viewing Angle(L/R/T/B) |
85/85/85/85 |
| Interface |
40pinSPI+RGB |
| Driver IC |
ST7701S |
| Operation Temperature |
-20~70℃ |
| Storge Temperature |
-30~80℃ |
| Aspect ratio |
1:1 |
| Contrast ratio |
1000 |
| Application |
Marine, IOT Devices, Industrial and Medical applications |
Product drawings:
Pin assignment:
Backlight Driving Conditions:
| Item |
Symbol |
MIN |
TYP |
MAX |
UNIT |
Test Condition |
| Voltage for LED backlight |
Vf |
3.0 |
3.2 |
3.5 |
V |
If=80mA |
| Current for LED backlight |
If |
- |
80 |
- |
mA |
- |
| LED life time |
- |
- |
20000 |
- |
hrs |
If=80mA |
Round lcd display series
|
HTC-Round LCD Display Sizes
|
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. |
| No. |
Size |
Part No. |
LCD type |
Resolution |
Outline
dimension
|
Active area |
Interface |
Contrast ratio |
Brightness |
Operation temperature |
Storage temperature |
| 1 |
1.8" |
HC018IX20020-F63 |
IPS |
360*360 |
48.08*49.95*1.96mm
|
φ45.68mm |
30pin MIPI |
1200 |
250 |
-20~70℃ |
-30~80℃ |
| 2 |
2.1" |
HCCH210WV01A |
IPS |
480*480 |
56.18*59.71*2.3mm
|
φ53.28mm |
40pinSPI+RGB |
1000 |
250 |
-20~70℃ |
-30~80℃ |
| 3 |
3.5" |
HC035IXA0040-G10 |
IPS |
800*640 |
97.6*83.79*4.0mm
|
90.0*72.0mm |
40pinSPI+RGB |
1200 |
1000 |
-30~80℃ |
-40~90℃ |
| 4 |
3.5" |
HC035IXA0040-F13 |
IPS |
800*640 |
97.6*83.79*4.0mm
|
90.0*72.0mm |
40pinSPI+RGB |
1200 |
1000 |
-20~70℃ |
-30~80℃ |
| 5 |
3.5" |
HC035IXA0077-G82 |
IPS |
720*670 |
98.88*94.12*7.75mm
|
89.74*83.51
mm
|
40pin RGB |
1200 |
1000 |
-30~80℃ |
-30~80℃ |
| 6 |
4" |
HC040IXA4077-F34 |
IPS |
720*720 |
110*112.49*7.7mm
|
φ101.52mm |
40pin MIPI |
1000 |
1400 |
-30~85℃ |
-30-85℃ |
| 7 |
4" |
HC040IXA4077-F35 |
IPS |
720*720 |
110*112.49*7.7mm
|
φ101.52mm |
40pinLVDS |
1200 |
1000 |
-30~80℃ |
