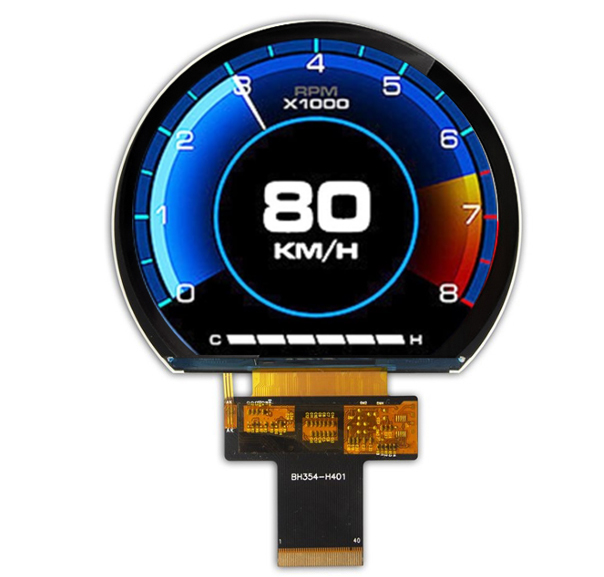

3.54 Inch Round LCD Panel for motocycle cluster
Product Description:
HC035IXA0040-G10 is a 3.54-inch IPS screen engineered to thrive in extreme conditions. Its 800x640 resolution and 1200:1 contrast deliver extremely sharp and vibrant visuals, while 1000nits ultra-high brightness guarantees crystal-clear readability even under blazing sunlight. Built to endure, it operates flawlessly in temperatures from -30°C to 85°C, perfect for harsh outdoor environments. With an expansive 85° viewing angle and a 40-pin RGB interface, this display ensures reliable performance in high-vibration applications. Its compact design outer frame of 97.6mm*83.79mm*4mm and optimized active area of 90mm*72mm maximize space efficiency without compromising on-screen clarity. The above parameters make itself suitable for electric vehicles, motorcycle dashboard.
General Specification:
| P/N |
HC035IXA0040-G10 |
| Size |
3.54 inch |
| Display mode |
Normally Black |
| Resolution |
800*640 |
| Outline Dimension(mm) |
97.6(W)*83.79(H)*4.0(D)mm |
| Active Area(mm) |
90.0(H)*72.0(W)mm |
| Brightness(cd/m²) |
1000 |
| Viewing Angle(L/R/T/B) |
85/85/85/85 |
| Interface |
40pinSPI+RGB |
| Driver IC |
ST5892 |
| Operation Temperature |
-30~80℃ |
| Storge Temperature |
-40~90℃ |
| Aspect ratio |
5:4 |
| Contrast ratio |
1000 |
| Application |
Smart gadgets, Control knob,Humanoid robot |
Product drawings:
Pin assignment:
Round lcd display series
|
Round LCD Display Sizes
|
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. |
| No. |
Size |
Part No. |
LCD type |
Resolution |
Outline dimension |
Active area |
Interface |
Contrast ratio |
Brightness |
Operation temperature |
Storage temperature |
| 1 |
1.8" |
HC018IX20020-F63 |
IPS |
360*360 |
48.08*49.95*1.96mm |
φ45.68mm |
30pin MIPI |
1200 |
250 |
-20~70℃ |
-30~80℃ |
| 2 |
2.1" |
HCCH210WV01A |
IPS |
480*480 |
56.18*59.71*2.3mm |
φ53.28mm |
40pinSPI+RGB |
1000 |
250 |
-20~70℃ |
-30~80℃ |
| 3 |
3.5" |
HC035IXA0040-G10 |
IPS |
800*640 |
97.6*83.79*4.0mm |
90.0*72.0mm |
40pinSPI+RGB |
1200 |
1000 |
-30~80℃ |
-40~90℃ |
| 4 |
3.5" |
HC035IXA0040-F13 |
IPS |
800*640 |
97.6*83.79*4.0mm |
90.0*72.0mm |
40pinSPI+RGB |
1200 |
1000 |
-20~70℃ |
-30~80℃ |
| 5 |
3.5" |
HC035IXA0077-G82 |
IPS |
720*670 |
98.88*94.12*7.75mm |
89.74*83.51mm |
40pin RGB |
1200 |
1000 |
-30~80℃ |
-30~80℃ |
| 6 |
4" |
HC040IXA4077-F34 |
IPS |
720*720 |
110*112.49*7.7mm |
φ101.52mm |
40pin MIPI |
1000 |
1400 |
-30~85℃ |
-30-85℃ |
| 7 |
4" |
HC040IXA4077-F35 |
IPS |
720*720 |
110*112.49*7.7mm |
φ101.52mm |
40pinLVDS |
1200 |
1000 |
-30~80℃ |
-30-85℃ |
Backlight Driving Conditions:
| Item |
Symbol |
MIN |
TYP |
MAX |
UNIT |
Test Condition |
| Voltage for LED backlight |
Vf |
- |
18 |
- |
V |
If=180mA |
| Current for LED backlight |
If |
- |
180 |
- |
mA |
- |
| LED life time |
- |
25000 |
- |
- |
hrs |
If=180mA |
