Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HCTG070V.P01
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HCTG070V.P01 |
Size: |
7''(TN) |
Display Type:: |
TN |
Resolution: |
800*480 |
Outline Dimension: |
164.90*100.00*15mm |
Active Area: |
154.08*85.92mm |
Brightness: |
250cd/㎡ |
Interface: |
HDMI+ Micro USB |
Operation Temp.: |
0~60℃ |
Storage Temp.: |
0~70℃ |
Contrast Ratio: |
500 |
Aspect Rati16:9o: |
16:9 |
Viewing Angle: |
70/70/50/70 |
Support System: |
Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi |
Application: |
Money Counter Machine, Coffee Machine, Laser Scanner |
P/N: |
HCTG070V.P01 |
Size: |
7''(TN) |
Display Type:: |
TN |
Resolution: |
800*480 |
Outline Dimension: |
164.90*100.00*15mm |
Active Area: |
154.08*85.92mm |
Brightness: |
250cd/㎡ |
Interface: |
HDMI+ Micro USB |
Operation Temp.: |
0~60℃ |
Storage Temp.: |
0~70℃ |
Contrast Ratio: |
500 |
Aspect Rati16:9o: |
16:9 |
Viewing Angle: |
70/70/50/70 |
Support System: |
Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi |
Application: |
Money Counter Machine, Coffee Machine, Laser Scanner |

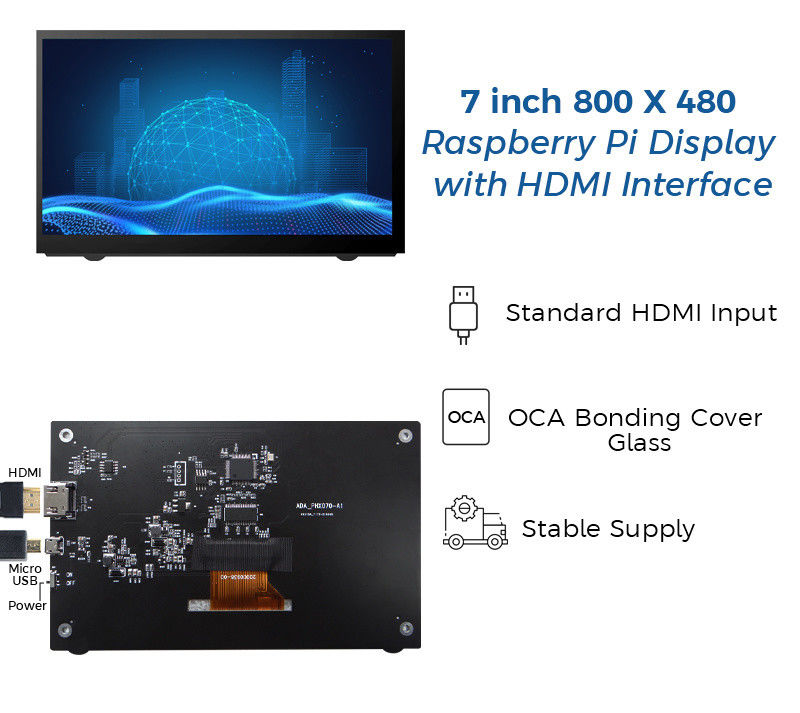

7-inch HDMI Display with 800*480 Resolution and Micro USB Interface
Product Description:
HCTG070V.P01 uses industrial-grade components to guarantee the optimum performance and reliability in most testing environment. It is one of our premium products, which has a 7-inch display screen and a resolution of up to 800*480 pixels. Including a high brightness LED backlight with 250 nits and a contrast ratio of 500:1, this display demonstrates stunning sharpness and superior color reproduction. Embedded within a compact frame of 164.90mm*100.00mm*15mm, this module provides a rich active viewing area of 154.08mm*85.92mm. This TFT also features a HDMI and Type C interface and is compatible with various applications, for example, money counter machine, coffee machine, laser scanner, etc. Additionally, its driver optimizes the display's functionality, ensuring smooth operation and accurate presentation of images.
General Specification:
| P/N | HCTG070V.P01 |
| Size | 7inch |
| Display type | TN |
| Resolution | 800*480 |
| Outline Dimension(mm) | 120.70*75.80*15.30mm |
| Active Area(mm) | 154.08*85.92mm |
| Brightness(cd/m²) | 250 |
| Interface | HDMI+Micro USB |
| Voltage | 5V 2A |
| Operation Temperature | 0~60℃ |
| Storge Temperature | 0~70℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 500 |
| Application | Money counter machine, coffee machine, laser scanner |
How could the end-user use the HDMI touch screen?
How to connect with motherboard like raspberry pi?
HDMI display series:
|
HDMI Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 5'' | HCIG050V.CP | IPS | 800*480 | 120.70*75.80*15.30MM | 108.00*64.80mm |
HDMI+ Micro USB |
1000 | 250 | 0~60℃ | -20~70℃ |
| 2 | 7" | HCTG070V.P01 | TN | 800*480 | 164.90*100.00*15mm | 154.08*85.92mm |
HDMI+ Micro USB |
500 | 250 | 0~60℃ | 0~70℃ |
| 3 | 7" | HCIK070V.CC | IPS | 1024*600 | 164.90*100.00*15mm | 154.21*85.92mm |
Mini HDMI +TypeC |
800 | 250 | 0~60℃ | 0~70℃ |
| 4 | 8" | HCTG080V.CP1 | TN | 800*480 | 192.80*116.90*22.00mm | 176.64*99.36mm |
Micro HDMI +USB |
500 | 500 | 0~60℃ | 0~70℃ |
| 5 | 9" | HCIK090V.CB | IPS | 1024*600 | 211.10*126.50*19.00mm | 196.60*114.15mm |
MINI HDMI +TYPE C |
800 | 500 | 0~60℃ | 0~70℃ |
| 6 | 10.1" | HCIK101V.CC | IPS | 1024*600 | 235.00*143.00*7.30mm | 222.72*125.28mm |
HDMI+ Micro USB |
800 | 200 | 0~60℃ | 0~70℃ |
| 7 | 10.1" | HCIK101V.CD | IPS | 1024*600 | 230.7*150.3*22.8mm | 216.96*135.60mm | HDMI+TypeC | 800 | 400 | 0~60℃ | 0~70℃ |
| 8 | 11.6" | HCIX116V.CP2 | IPS | 1366*768 | 265*157.35*2.7mm | 256.16*144mm | HDMI+TypeC | 220 | 0~50℃ | -15~55℃ | |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
