Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HCIK070V.CC
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HCIK070V.CC |
Size: |
7''(IPS) |
Display Type:: |
IPS |
Resolution: |
1024*600 |
Outline Dimension: |
164.90*100.00*15mm |
Active Area: |
154.08*85.92mm |
Brightness: |
250cd/㎡ |
Interface: |
Mini HDMI +Type C |
Operation Temp.: |
0~60℃ |
Storage Temp.: |
0~70℃ |
Contrast Ratio: |
800 |
Aspect Rati16:9o: |
16:9 |
Viewing Angle: |
80/80/80/80 |
Support System: |
Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi |
Application: |
Radio Receiver, Food Tester, And GPS Navigation |
P/N: |
HCIK070V.CC |
Size: |
7''(IPS) |
Display Type:: |
IPS |
Resolution: |
1024*600 |
Outline Dimension: |
164.90*100.00*15mm |
Active Area: |
154.08*85.92mm |
Brightness: |
250cd/㎡ |
Interface: |
Mini HDMI +Type C |
Operation Temp.: |
0~60℃ |
Storage Temp.: |
0~70℃ |
Contrast Ratio: |
800 |
Aspect Rati16:9o: |
16:9 |
Viewing Angle: |
80/80/80/80 |
Support System: |
Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi |
Application: |
Radio Receiver, Food Tester, And GPS Navigation |

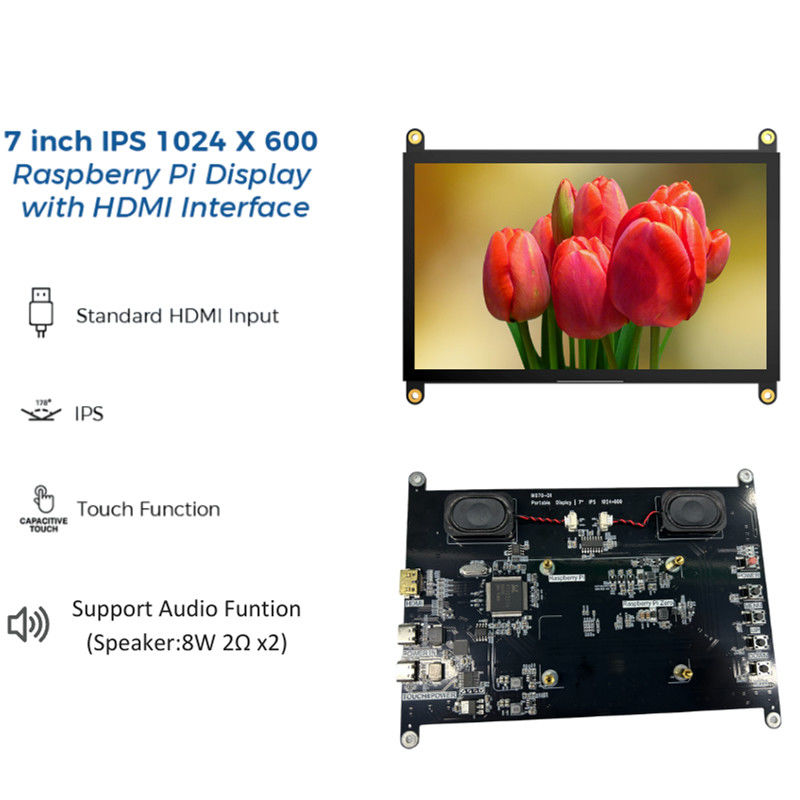

7-inch HDMI Displays with 250nits Brightness and capacitive touch screen
Product Description:
HCIK070V.CC, as a 7-inch 1024*600 pixels Raspberry PI display, is a perfect choice for interactive projects, for example, radio receiver, food tester, and GPS navigation. This standard 7-inch HDMI display has an outline dimension of 164.90mm*100.00mm*15mm and an active area of 154.21mm*85.92mm with a built-in LED backlight of 250nits. The HCIK070V.CC with HDMI+Type C interface allows for easy connection and provides touchscreen with support for multi-touch, giving users full functionality without the need to connect a keyboard or mouse. Using IPS technology, this display with a contrast ratio of 800:1 presents a more vivid and realistic image with enhanced color depth and and boasts a wide viewing angle of 80/80/80/80(L/R/T/B).
General Specification:
| P/N | HCIK070V.CC |
| Size | 7inch |
| Display type | IPS |
| Resolution | 1024*600 |
| Outline Dimension(mm) | 164.90*100.00*15mm |
| Active Area(mm) | 154.08*85.92mm |
| Brightness(cd/m²) | 250 |
| Interface | Mini HDMI +Type C |
| Voltage | 5V 2A |
| Operation Temperature | 0~60℃ |
| Storge Temperature | 0~70℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 800 |
| Application | Radio receiver, food tester, and GPS navigation |
How could the end-user use the HDMI touch screen?
How to connect with motherboard like raspberry pi?
HDMI display series:
|
HDMI Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 5'' | HCIG050V.CP | IPS | 800*480 | 120.70*75.80*15.30MM | 108.00*64.80mm |
HDMI+ Micro USB |
1000 | 250 | 0~60℃ | -20~70℃ |
| 2 | 7" | HCTG070V.P01 | TN | 800*480 | 164.90*100.00*15mm | 154.08*85.92mm |
HDMI+ Micro USB |
500 | 250 | 0~60℃ | 0~70℃ |
| 3 | 7" | HCIK070V.CC | IPS | 1024*600 | 164.90*100.00*15mm | 154.21*85.92mm |
Mini HDMI +TypeC |
800 | 250 | 0~60℃ | 0~70℃ |
| 4 | 8" | HCTG080V.CP1 | TN | 800*480 | 192.80*116.90*22.00mm | 176.64*99.36mm |
Micro HDMI +USB |
500 | 500 | 0~60℃ | 0~70℃ |
| 5 | 9" | HCIK090V.CB | IPS | 1024*600 | 211.10*126.50*19.00mm | 196.60*114.15mm |
MINI HDMI +TYPE C |
800 | 500 | 0~60℃ | 0~70℃ |
| 6 | 10.1" | HCIK101V.CC | IPS | 1024*600 | 235.00*143.00*7.30mm | 222.72*125.28mm |
HDMI+ Micro USB |
800 | 200 | 0~60℃ | 0~70℃ |
| 7 | 10.1" | HCIK101V.CD | IPS | 1024*600 | 230.7*150.3*22.8mm | 216.96*135.60mm | HDMI+TypeC | 800 | 400 | 0~60℃ | 0~70℃ |
| 8 | 11.6" | HCIX116V.CP2 | IPS | 1366*768 | 265*157.35*2.7mm | 256.16*144mm | HDMI+TypeC | 220 | 0~50℃ | -15~55℃ | |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
