Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HCIK101V.CD
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HCIK101V.CD |
Size: |
10.1''(IPS) |
Display Type:: |
IPS |
Resolution: |
1280*800 |
Outline Dimension: |
230.7*150.3*22.8mm |
Active Area: |
216.96*135.6mm |
Brightness: |
400cd/㎡ |
Interface: |
HDMI+Type C |
Operation Temp.: |
0~60℃ |
Storage Temp.: |
0~70℃ |
Contrast Ratio: |
800 |
Viewing Angle: |
80/80/80/80 |
Aspect Rati16:9o: |
16:10 |
Support System: |
Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi |
Application: |
Weighing Terminals And ECG Machine. |
P/N: |
HCIK101V.CD |
Size: |
10.1''(IPS) |
Display Type:: |
IPS |
Resolution: |
1280*800 |
Outline Dimension: |
230.7*150.3*22.8mm |
Active Area: |
216.96*135.6mm |
Brightness: |
400cd/㎡ |
Interface: |
HDMI+Type C |
Operation Temp.: |
0~60℃ |
Storage Temp.: |
0~70℃ |
Contrast Ratio: |
800 |
Viewing Angle: |
80/80/80/80 |
Aspect Rati16:9o: |
16:10 |
Support System: |
Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi |
Application: |
Weighing Terminals And ECG Machine. |

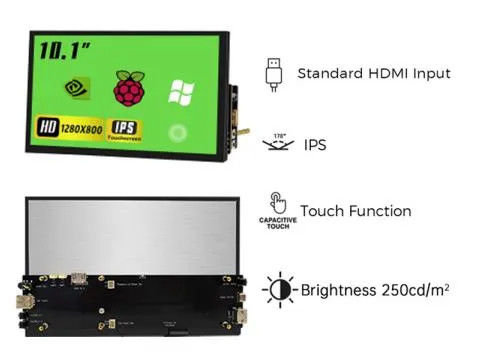

10.1-inch HDMI Display with 1280*800 Pixels Resolution and Touch Function
Product Description:
HCIK101V.CD is a 10.1-inch display with an outline dimension of 230.7mm*150.3mm*22.8mm, which can be easily integrated into various applications, such as weighing terminals and ECG machine. To enhance the overall viewing experience, it uses IPS technology and provides a wide viewing angle of 80/80/80/80 (L/R/T/B). With standard interfaces of HDMI and Type C, the HCIK101V.CD can stably receive data for high-quality display images and supports touch function. This display features 1028*800 pixels resolution, showing sharp and accurate images. And due to the brightness of 400 nits and the contrast ratio of 800:1, this display is readable and can still present a lot of details in indoor settings with ambient lighting.
General Specification:
| P/N | HCIK101V.CD |
| Size | 10.1inch |
| Display type |
IPS
|
| Resolution | 1280*800 |
| Outline Dimension(mm) | 235*143*7.3mm |
| Active Area(mm) | 230.7*150.3*22.8mm |
| Brightness(cd/m²) | 400 |
| Interface | HDMI+Type C |
| Voltage | 5V 2A |
| Operation Temperature | 0~60℃ |
| Storge Temperature | 0~70℃ |
| Aspect ratio | 16:10 |
| Contrast ratio | 800 |
| Application | Weighing terminals and ECG machine. |
How could the end-user use the HDMI touch screen?
How to connect with motherboard like raspberry pi?
HDMI display series:
|
HDMI Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 5'' | HCIG050V.CP | IPS | 800*480 | 120.70*75.80*15.30MM | 108.00*64.80mm |
HDMI+ Micro USB |
1000 | 250 | 0~60℃ | -20~70℃ |
| 2 | 7" | HCTG070V.P01 | TN | 800*480 | 164.90*100.00*15mm | 154.08*85.92mm |
HDMI+ Micro USB |
500 | 250 | 0~60℃ | 0~70℃ |
| 3 | 7" | HCIK070V.CC | IPS | 1024*600 | 164.90*100.00*15mm | 154.21*85.92mm |
Mini HDMI +TypeC |
800 | 250 | 0~60℃ | 0~70℃ |
| 4 | 8" | HCTG080V.CP1 | TN | 800*480 | 192.80*116.90*22.00mm | 176.64*99.36mm |
Micro HDMI +USB |
500 | 500 | 0~60℃ | 0~70℃ |
| 5 | 9" | HCIK090V.CB | IPS | 1024*600 | 211.10*126.50*19.00mm | 196.60*114.15mm |
MINI HDMI +TYPE C |
800 | 500 | 0~60℃ | 0~70℃ |
| 6 | 10.1" | HCIK101V.CC | IPS | 1024*600 | 235.00*143.00*7.30mm | 222.72*125.28mm |
HDMI+ Micro USB |
800 | 200 | 0~60℃ | 0~70℃ |
| 7 | 10.1" | HCIK101V.CD | IPS | 1024*600 | 230.7*150.3*22.8mm | 216.96*135.60mm | HDMI+TypeC | 800 | 400 | 0~60℃ | 0~70℃ |
| 8 | 11.6" | HCIX116V.CP2 | IPS | 1366*768 | 265*157.35*2.7mm | 256.16*144mm | HDMI+TypeC | 220 | 0~50℃ | -15~55℃ | |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
