Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HCIX116V.CP2
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HCIX116V.CP2 |
Size: |
11.6''(IPS) |
Display Type:: |
IPS |
Resolution: |
1366*768 |
Outline Dimension: |
265*157.35*2.7mm |
Active Area: |
256.16*144mm |
Brightness: |
220cd/㎡ |
Interface: |
HDMI+Type C |
Operation Temp.: |
0~50℃ |
Storage Temp.: |
-15~55℃ |
Aspect Rati16:9o: |
16:9 |
Support System: |
Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi |
Application: |
Handheld Game Console |
P/N: |
HCIX116V.CP2 |
Size: |
11.6''(IPS) |
Display Type:: |
IPS |
Resolution: |
1366*768 |
Outline Dimension: |
265*157.35*2.7mm |
Active Area: |
256.16*144mm |
Brightness: |
220cd/㎡ |
Interface: |
HDMI+Type C |
Operation Temp.: |
0~50℃ |
Storage Temp.: |
-15~55℃ |
Aspect Rati16:9o: |
16:9 |
Support System: |
Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi |
Application: |
Handheld Game Console |

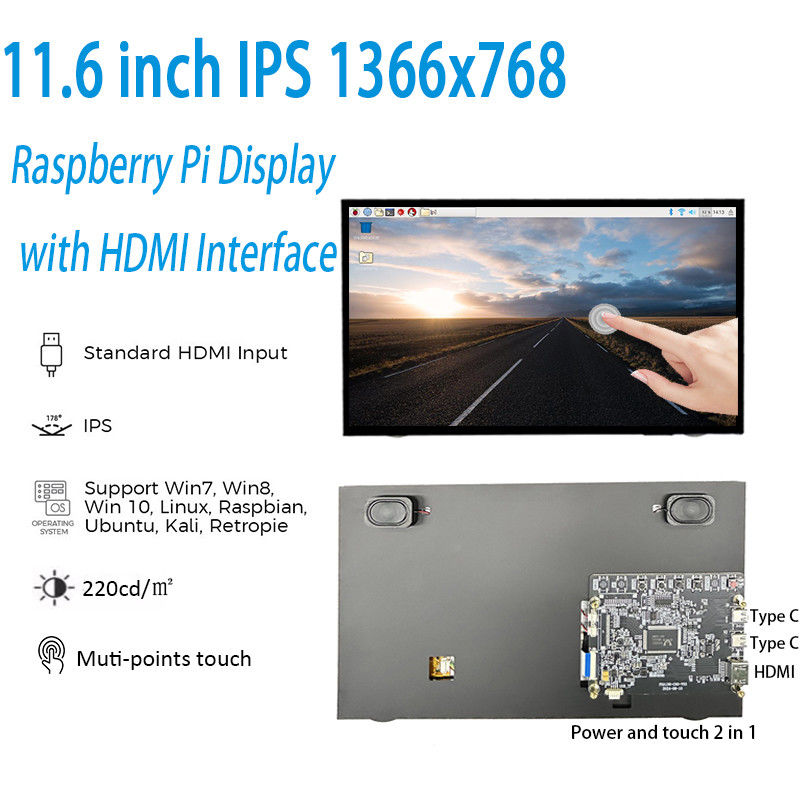

11.6-inch HDMI Display with Wide Viewing Angle and 1366*768 Resolution
Product Description:
HCIX116V.CP2, a 11.6-inch display, possesses the resolution of up to 1366*768 pixels for vibrant and clear images. IPS technology is used to offer a wide viewing angle, which ensures that the display remains clear and accurate from any perspective. With an outline dimension of 265mm*157.35*2.7mm, the HCIX116V.CP2 has a display area of 256.16mm*144mm that can show a image with brightness of 220 nits. This display supports 10-point touch, and no additional driver is required. Users can transmit data to the display through the HDMI interface, and power the display and enable the touch function through the Type C interface. Combing these features, the HCIX116V.CP2 are increasingly becoming the preferred choice for many devices, such as handheld game console.
General Specification:
| P/N | HCIX116V.CP2 |
| Size | 11.6inch |
| Display type | IPS |
| Resolution | 1366*768 |
| Outline Dimension(mm) | 265*157.35*2.7mm |
| Active Area(mm) | 256.16*144mm |
| Brightness(cd/m²) | 220 |
| Interface | HDMI+Type C |
| Operation Temperature | 0~50℃ |
| Storge Temperature | -15~55℃ |
| Aspect ratio | 16:9 |
| Application |
Handheld game console |
How could the end-user use the HDMI touch screen?
How to connect with motherboard like raspberry pi?
HDMI display series:
|
HDMI Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 5'' | HCIG050V.CP | IPS | 800*480 | 120.70*75.80*15.30MM | 108.00*64.80mm |
HDMI+ Micro USB |
1000 | 250 | 0~60℃ | -20~70℃ |
| 2 | 7" | HCTG070V.P01 | TN | 800*480 | 164.90*100.00*15mm | 154.08*85.92mm |
HDMI+ Micro USB |
500 | 250 | 0~60℃ | 0~70℃ |
| 3 | 7" | HCIK070V.CC | IPS | 1024*600 | 164.90*100.00*15mm | 154.21*85.92mm |
Mini HDMI +TypeC |
800 | 250 | 0~60℃ | 0~70℃ |
| 4 | 8" | HCTG080V.CP1 | TN | 800*480 | 192.80*116.90*22.00mm | 176.64*99.36mm |
Micro HDMI +USB |
500 | 500 | 0~60℃ | 0~70℃ |
| 5 | 9" | HCIK090V.CB | IPS | 1024*600 | 211.10*126.50*19.00mm | 196.60*114.15mm |
MINI HDMI +TYPE C |
800 | 500 | 0~60℃ | 0~70℃ |
| 6 | 10.1" | HCIK101V.CC | IPS | 1024*600 | 235.00*143.00*7.30mm | 222.72*125.28mm |
HDMI+ Micro USB |
800 | 200 | 0~60℃ | 0~70℃ |
| 7 | 10.1" | HCIK101V.CD | IPS | 1024*600 | 230.7*150.3*22.8mm | 216.96*135.60mm | HDMI+TypeC | 800 | 400 | 0~60℃ | 0~70℃ |
| 8 | 11.6" | HCIX116V.CP2 | IPS | 1366*768 | 265*157.35*2.7mm | 256.16*144mm | HDMI+TypeC | 220 | 0~50℃ | -15~55℃ | |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
