Product Details
Place of Origin: China
Brand Name: HETECH
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HCIK090V.CB
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HCIK090V.CB |
Size: |
9''(IPS) |
Display Type:: |
IPS |
Resolution: |
1024*600 |
Outline Dimension: |
211.10*126.50*19.00mm |
Active Area: |
196.60*114.15mm |
Brightness: |
500cd/㎡ |
Interface: |
MINI HDMI +TYPE C |
Operation Temp.: |
0~60℃ |
Storage Temp.: |
0~70℃ |
Contrast Ratio: |
800 |
Aspect Rati16:9o: |
16:9 |
Viewing Angle: |
85/85/85/85 |
Support System: |
Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi |
Application: |
Recumbent Bikes. |
P/N: |
HCIK090V.CB |
Size: |
9''(IPS) |
Display Type:: |
IPS |
Resolution: |
1024*600 |
Outline Dimension: |
211.10*126.50*19.00mm |
Active Area: |
196.60*114.15mm |
Brightness: |
500cd/㎡ |
Interface: |
MINI HDMI +TYPE C |
Operation Temp.: |
0~60℃ |
Storage Temp.: |
0~70℃ |
Contrast Ratio: |
800 |
Aspect Rati16:9o: |
16:9 |
Viewing Angle: |
85/85/85/85 |
Support System: |
Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi |
Application: |
Recumbent Bikes. |

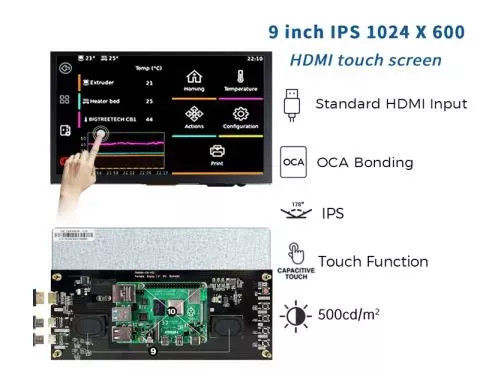

9-inch HDMI LCD Displays with 500 nits Brightness and 800:1 Contrast Ratio
Product Description:
HCIK090V.CB with an outline dimension of 211.10mm*126.50mm*19.00mm is equipped with MINI HDMI and Type C interfaces for a streamlined connection between the display and devices. This 9-inch display with 1024*600 pixels resolution possesses a LED backlight of 500 nits and a contrast ratio of 800:1, providing clear and bright images in lighting conditions. It has a capacitive touch panel without external driver installation required. The HCIK090V.CB has a built-in IPS panel that supports a wide viewing angle of 85/85/85/85(L/R/T/B) and can minimize color and contrast shifts when viewed from different angles. Backed by its rugged design and eco-friendly features, this display is ideal for many devices, such as recumbent bikes.
General Specification:
| P/N | HCIK090V.CB |
| Size | 9inch |
| Display type | IPS |
| Resolution | 1024*600 |
| Outline Dimension(mm) | 211.10*126.50*19.00mm |
| Active Area(mm) | 196.60*114.15mm |
| Brightness(cd/m²) | 500 |
| Interface | MINI HDMI +TYPE C |
| Voltage | 5V 2A |
| Operation Temperature | 0~60℃ |
| Storge Temperature | 0~70℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 800 |
| Application | Recumbent bikes. |
How could the end-user use the HDMI touch screen?
How to connect with motherboard like raspberry pi?
HDMI display series:
|
HDMI Display Sizes
|
|||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 5'' | HCIG050V.CP | IPS | 800*480 | 120.70*75.80*15.30MM | 108.00*64.80mm |
HDMI+ Micro USB |
1000 | 250 | 0~60℃ | -20~70℃ |
| 2 | 7" | HCTG070V.P01 | TN | 800*480 | 164.90*100.00*15mm | 154.08*85.92mm |
HDMI+ Micro USB |
500 | 250 | 0~60℃ | 0~70℃ |
| 3 | 7" | HCIK070V.CC | IPS | 1024*600 | 164.90*100.00*15mm | 154.21*85.92mm |
Mini HDMI +TypeC |
800 | 250 | 0~60℃ | 0~70℃ |
| 4 | 8" | HCTG080V.CP1 | TN | 800*480 | 192.80*116.90*22.00mm | 176.64*99.36mm |
Micro HDMI +USB |
500 | 500 | 0~60℃ | 0~70℃ |
| 5 | 9" | HCIK090V.CB | IPS | 1024*600 | 211.10*126.50*19.00mm | 196.60*114.15mm |
MINI HDMI +TYPE C |
800 | 500 | 0~60℃ | 0~70℃ |
| 6 | 10.1" | HCIK101V.CC | IPS | 1024*600 | 235.00*143.00*7.30mm | 222.72*125.28mm |
HDMI+ Micro USB |
800 | 200 | 0~60℃ | 0~70℃ |
| 7 | 10.1" | HCIK101V.CD | IPS | 1024*600 | 230.7*150.3*22.8mm | 216.96*135.60mm | HDMI+TypeC | 800 | 400 | 0~60℃ | 0~70℃ |
| 8 | 11.6" | HCIX116V.CP2 | IPS | 1366*768 | 265*157.35*2.7mm | 256.16*144mm | HDMI+TypeC | 220 | 0~50℃ | -15~55℃ | |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
