Product Details
Place of Origin: China
Brand Name: INNOLUX
Certification: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: EJ080NA-05B
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
EJ080NA-05B |
Size: |
8"(TN) |
Display Type: |
(TN) |
Resolution: |
800*600 |
Outline Dimension: |
183(W )*141(H)*5.9(T)mm |
Active Area: |
162(W)*121.5(H)mm |
Brightness: |
300cd/m2 |
Interface: |
50pinRGB |
Viewing Angle: |
70/70/50/70 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
1000 |
Aspect Rati16:9o: |
4:3 |
Application: |
Intelligent Dashboards And Industrial Control Panels |
P/N: |
EJ080NA-05B |
Size: |
8"(TN) |
Display Type: |
(TN) |
Resolution: |
800*600 |
Outline Dimension: |
183(W )*141(H)*5.9(T)mm |
Active Area: |
162(W)*121.5(H)mm |
Brightness: |
300cd/m2 |
Interface: |
50pinRGB |
Viewing Angle: |
70/70/50/70 |
Operation Temp.: |
-20~70℃ |
Storage Temp.: |
-30~80℃ |
Contrast Ratio: |
1000 |
Aspect Rati16:9o: |
4:3 |
Application: |
Intelligent Dashboards And Industrial Control Panels |

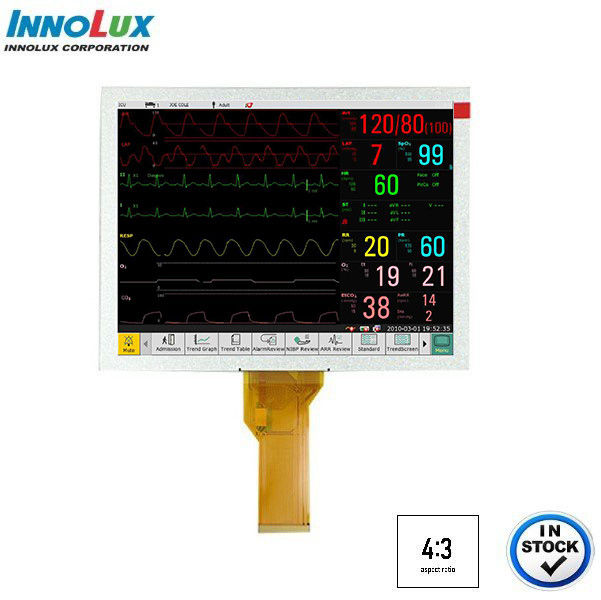

INNOLUX EJ080NA-05B 8-inch TFT LCD Display with 800*600 Resolution
Product Description:
INNOLUX EJ080NA-05B is an 8-inch TFT LCD display with TN technology, featuring a resolution of 800*600 pixels. With an outline dimension of 183.0mm*141.0mm*5.6mm, this display is widely used in intelligent dashboards and industrial control panels due to its superior performance. The display’s 250 nits brightness and 500:1 contrast ratio provide a comfortable level of screen illumination while maintaining decent distinction between light and dark areas. And this display boasts an interface of 50pin RGB, which can transmit all color data simultaneously, providing precise color reproduction and enabling faster refresh rates and smoother motion on the display. In addition, EJ080NA-05B operates across a wide temperature range from -20°C to 70°C, making it fit for use in different climate conditions and have longer service life than common displays.
General Specification:
| P/N | EJ080NA-05B |
| Size | 8inch |
| Display type |
Normally White, Transmissive
|
| Resolution | 800*600 |
| Outline Dimension(mm) | 183(W )*141(H)*5.9(T)mm |
| Active Area(mm) | 162(W)*121.5(H)mm |
| Brightness(cd/m²) | 300 |
| Viewing Angle(L/R/T/B) | 70/70/50/70 |
| Interface | 50pinRGB |
| Operation Temperature | -20~70℃ |
| Storge Temperature | -30~80℃ |
| Aspect ratio | 4:3 |
| Contrast ratio | 1000 |
| Application | Intelligent dashboards and industrial control panels |
Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT |
|
Voltage for LED backlight
|
Vf | 8.4 | 9.3 | 10.5 | V |
|
Current for LED backlight
|
If | 162 | 180 | 198 | mA |
|
LED life time
|
- | 20000 | - | - | hrs |
Product drawings:
Certificate:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
